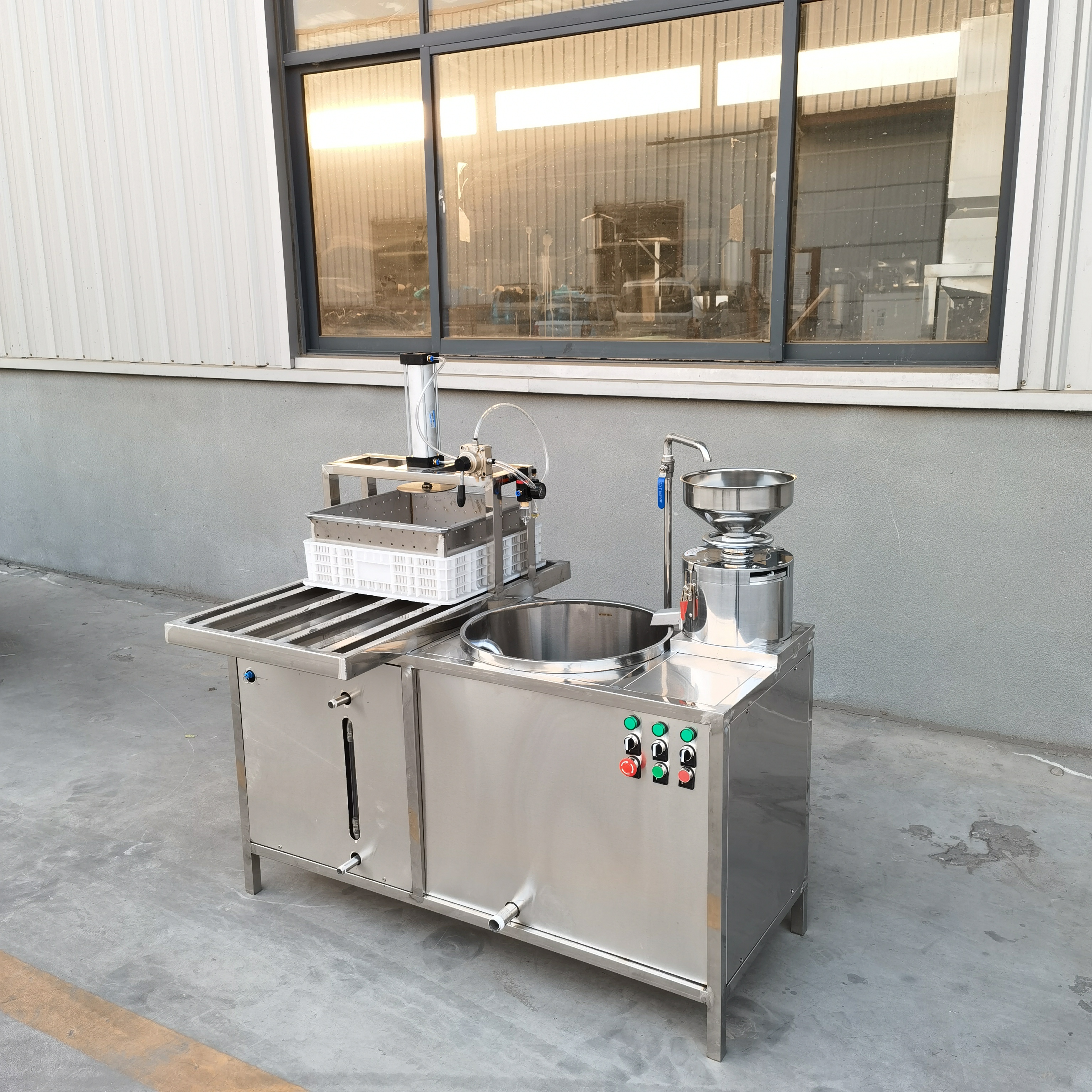

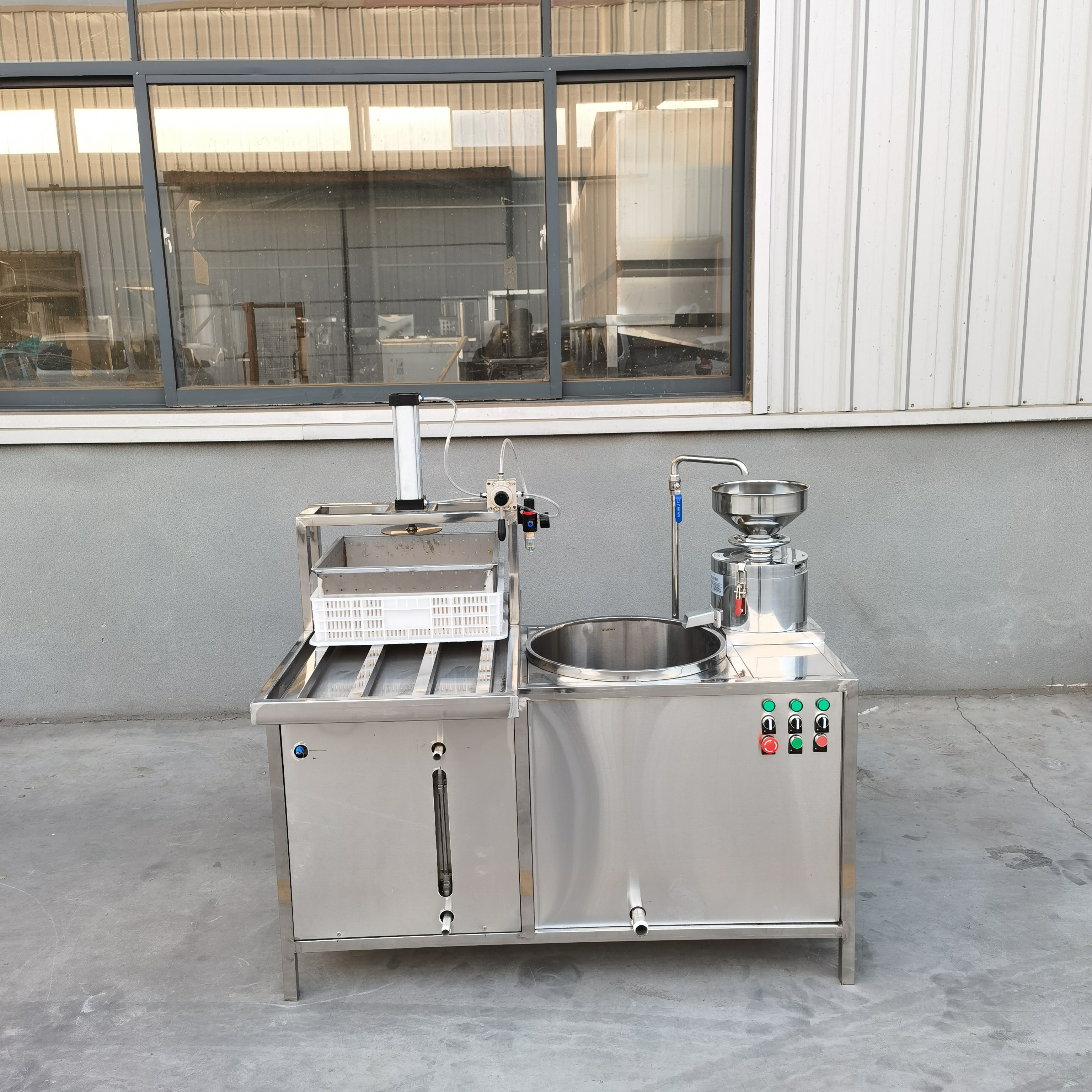

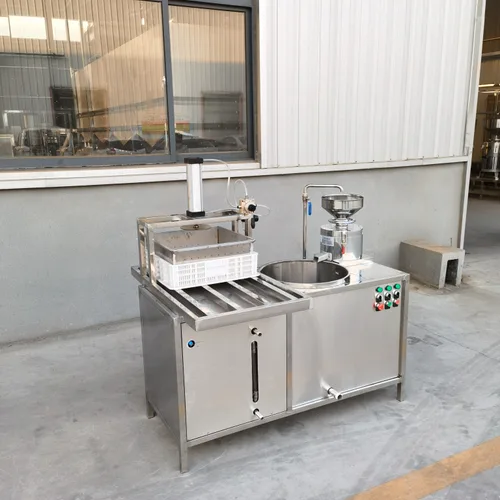

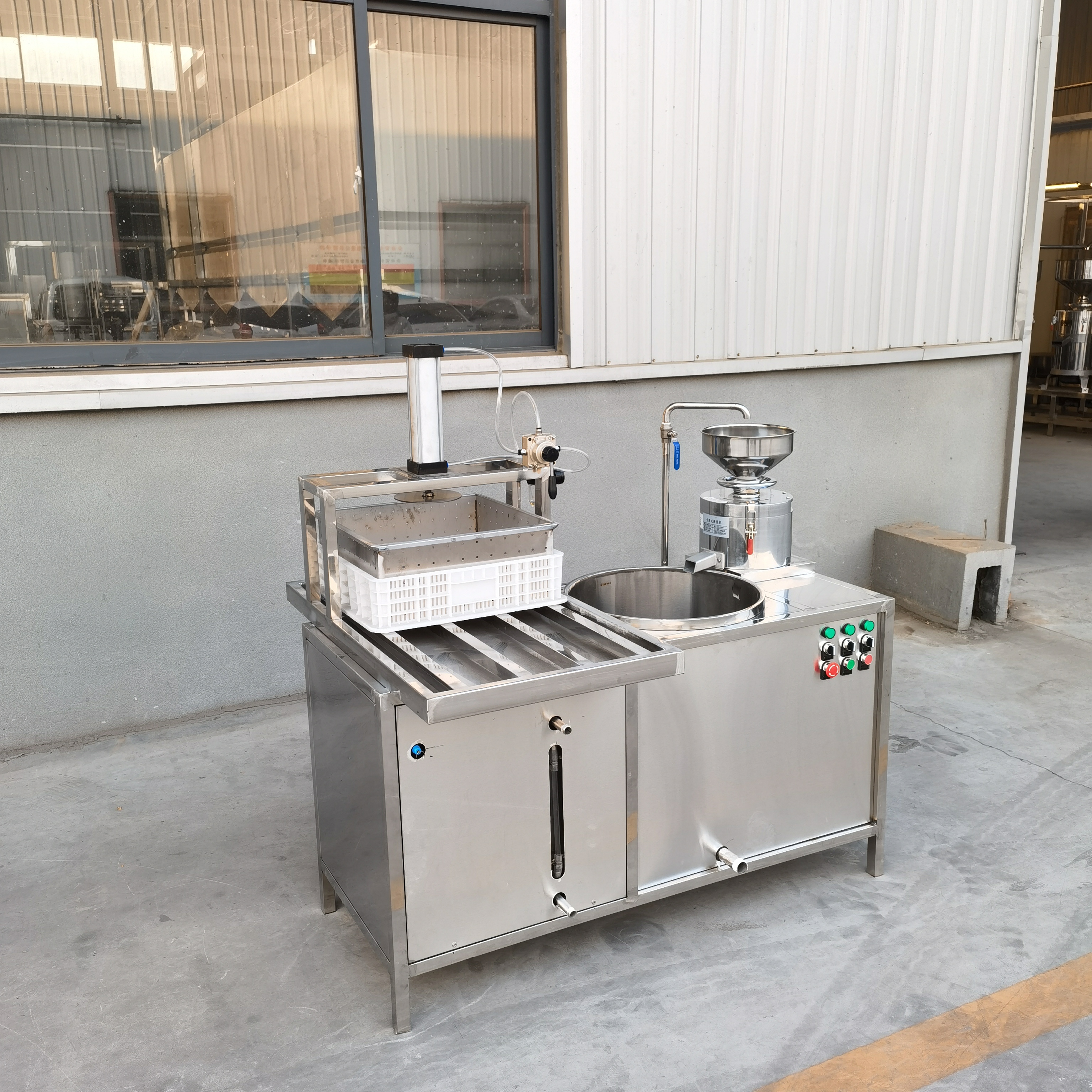

Small Integrated Soybean Grinding & Boiling Tofu Making Machine, Electric Heating Pneumatic Single Station Tofu Forming Equipment for Stall & Mini Workshop

Small Integrated Soybean Grinding & Boiling Tofu Making Machine, Electric Heating Pneumatic Single Station Tofu Forming Equipment for Stall & Mini Workshop

USD $850.86 / قطع

الحد الأدنى للطلب: 1 قطع

Product Name:
Small Integrated Grinding & Boiling Tofu Machine (Single Station)
Overall Dimension:
13609501500mm
Body Material:
Food Grade 304 Stainless Steel
Factory Price:
5800 CNY
السعر المرجعي:
USD $850.86
الحد الأدنى لكمية الطلب:
1 قطع
إرسال استفسار

ميزات المنتج وتطبيقاته

Compact all-stainless steel integrated tofu processing machine, integrating Model 105 soybean grinder, Model 50 electric heating slurry boiler and single air cylinder pneumatic pressing unit. One-button operation covers the whole workflow: grinding, boiling, curdling and pressing. Small footprint, ideal for family workshops and street tofu stalls to make fresh soft tofu.

  • Compact Integrated Layout for Narrow Space
    Grinding, boiling and pressing units are combined into one single machine with only 1.36m length. No separate equipment required, easy to place and move for street stalls and small family workshops with limited space.
  • 3-in-1 Grinding-Boiling-Pressing, One-button Full Tofu Workflow
    Model 105 grinder on right side produces raw soybean milk, Model 50 boiling tank in middle heats slurry to remove beany flavor, cooked slurry flows directly to left forming station. The 80# air cylinder automatically presses and dewaters tofu, one worker can finish all procedures just by pressing control buttons.
  • Independent Electric Heating System, Anti-scorch & Smooth Tofu Texture
    18kw dedicated heating cabinet with segmented bottom heating prevents slurry scorching. Fast temperature rise fully eliminates raw bean odor, high-purity slurry makes tender smooth tofu without grits.
  • Single Pneumatic Cylinder Pressing, Neat Shaping & Labor Saving
    Standard 80# air cylinder delivers stable even downward pressure with matched forming basket. Fresh tofu gets sufficient water removal with regular edges, no heavy manual weight pressing needed to cut physical labor.
  • Full Stainless Steel Body, Easy Sanitary Cleaning & Maintenance
    All covers, tanks and pipelines are made of food-grade 304 stainless steel with smooth residue-free surface, quick water washing after production. Waterproof and rust-proof, effectively avoid bacterial growth to meet food hygiene standards.
  • Simple Centralized Electric Control, Zero Threshold for New Operators
    Central control panel on right side with separate clearly labeled buttons for grinding, heating and pressing. No professional skills required, new operators can start production after brief training.
  • Operation Notes
    The pressing cylinder is pneumatic, air compressor is needed for air supply; the electric heating system supports 380V three-phase industrial power. This machine is mainly for fresh soft tofu production, heightened forming frames are optional if dried tofu production is needed.
