SHENTUI WZ38-28 Backhoe Loader | 46.5KN Excavator Grab Force | 4100mm Digging Depth | 22MPa Hydraulic System | LANDNEO Heavy-Duty Digging Equipment

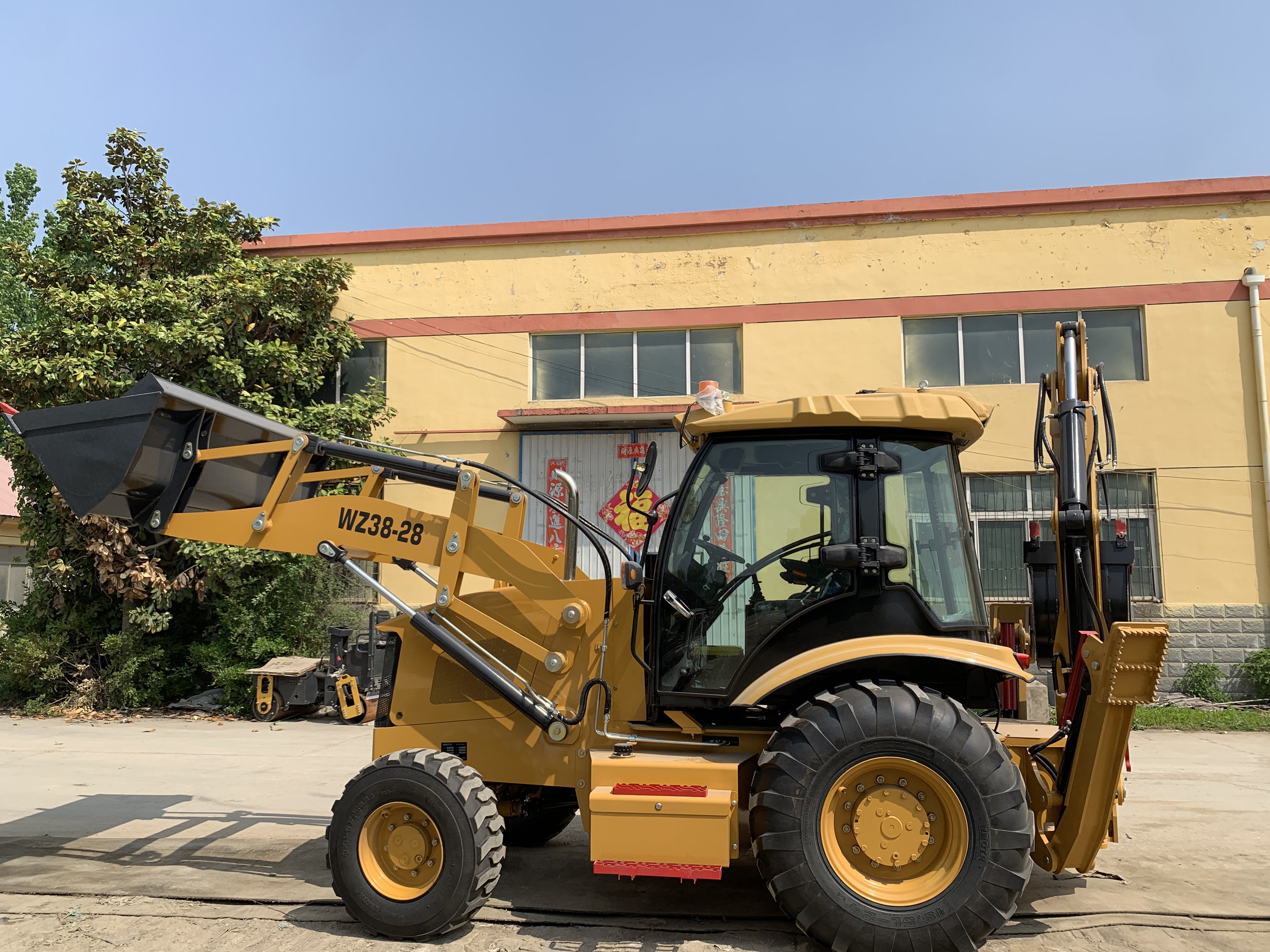

SHENTUI WZ38-28 Backhoe Loader for Powerful Excavation

The SHENTUI WZ38-28 combines a front loader with a rear hydraulic excavator, allowing one machine to perform digging, loading, backfilling, and site preparation tasks. It is suitable for contractors, farms, municipal projects, and general construction applications that require dependable excavation performance.

Product Highlights

• Strong Excavator Grab Force: The rear excavator provides a rated digging power of 46.5KN at the grab, supporting work in soil, clay, gravel, and other common construction materials.

• Effective Dipper Performance: The dipper digging force is rated at 31KN for trenching and material penetration.

• Standard 4100mm Digging Depth: The machine reaches a maximum standard digging depth of 4100mm. A 5000mm digging-depth option is available with an extended telescopic arm.

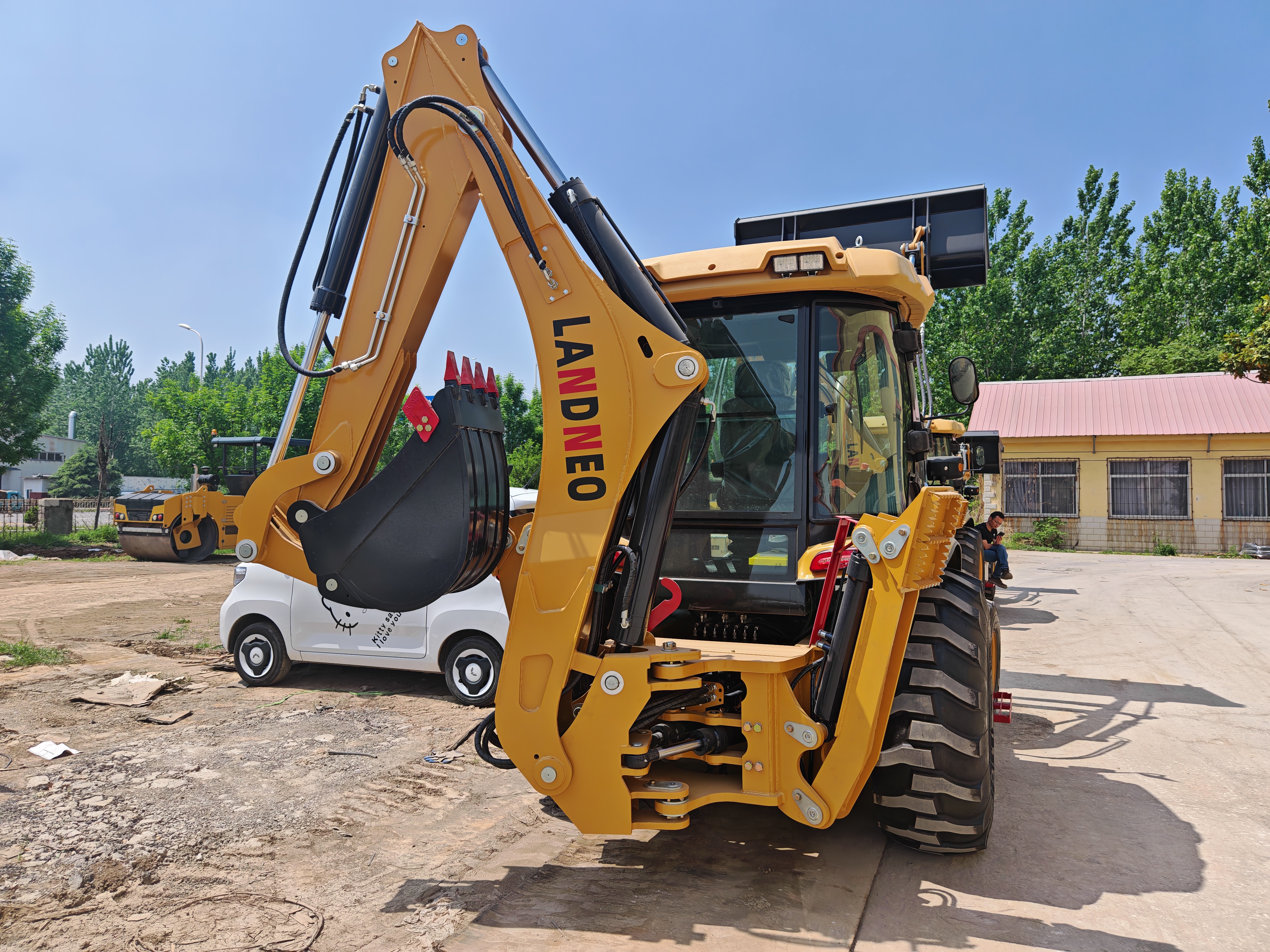

• 190° Backhoe Swing Angle: The rear working equipment has a 190° swing angle, helping the operator position the bucket accurately along trenches and foundations.

• Stable Outrigger Support: The A-shaped outriggers help stabilize the machine during rear excavation operations.

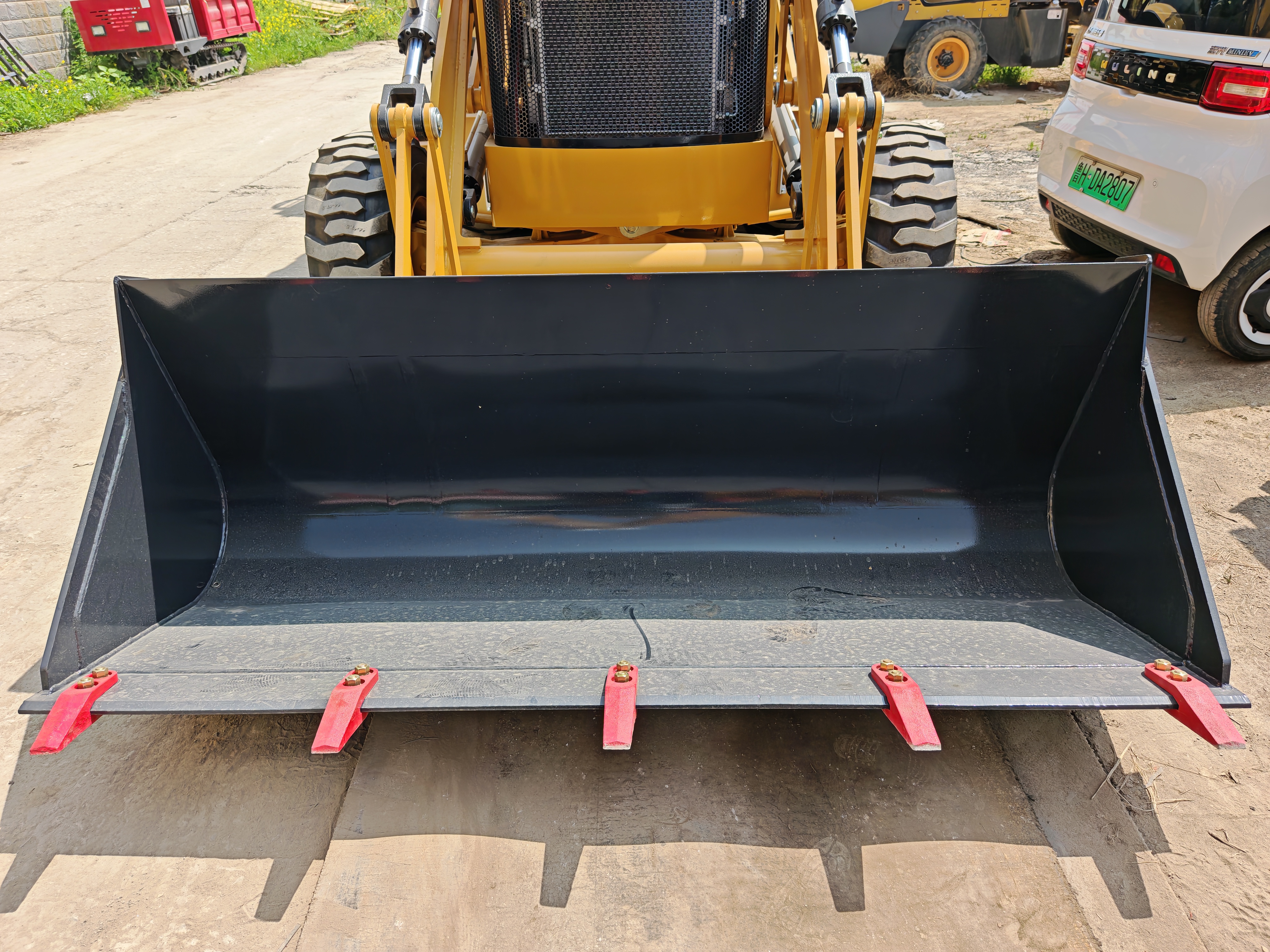

• Front Loader Capability: The front loader includes a 1.5m³ bucket, 38KN breakout force, 2800KG lifting capacity, and 2800mm bucket dumping height.


  Technical Specifications

  Overall Operating Weight	8000KG
  Loader Bucket Capacity	1.5m³
  Backhoe Bucket Capacity	0.3m³
  Loader Breakout Force	38KN
  Excavator Grab Digging Force	46.5KN
  Dipper Digging Force	31KN
  Maximum Standard Digging Depth	4100mm
  Optional Digging Depth	5000mm with telescopic arm
  Backhoe Swing Angle	190°
  Hydraulic System Pressure	22MPa
  Bucket Lifting Time	5.4 seconds
  Bucket Lowering Time	3.1 seconds
  Bucket Discharge Time	2.0 seconds
  Maximum Pulling Force	39KN
  Maximum Travel Speed	30km/h

  Applications

  The WZ38-28 is designed for:

  • Utility and drainage trenching

  • Foundation excavation

  • Roadside ditch construction

  • Agricultural land improvement

  • Backfilling and earthmoving

  • Small and medium construction sites

  • Municipal maintenance work

  • Farm road and infrastructure projects

  The combination of front loading and rear digging equipment reduces the need to use separate machines for common site-preparation tasks.

  Packaging and Delivery

  The WZ38-28 can be prepared for export shipment in a 1×40HC container. The stated packing quantity is two units per container when the tires, backhoe equipment, and loader bucket are removed and secured using process wheels. Final loading arrangements should be confirmed according to the purchased configuration and shipping requirements.

  After-sales Service

  LANDNEO can provide product documentation, operating guidance, spare-parts coordination, and remote technical support for the engine, hydraulic system, transmission, axles, and working attachments. The specific warranty period, parts package, and service terms should be confirmed in the sales contract before ordering.

  5. FAQ

  Q1: What is the standard maximum digging depth?

  A: The standard maximum digging depth is 4100mm.

  Q2: Can the WZ38-28 dig to 5000mm?

  A: Yes. A 5000mm digging-depth option is available when the machine is equipped with a telescopic arm. Availability should be confirmed before purchase.

  Q3: What is the rear excavator digging force?

  A: The excavator grab digging force is 46.5KN, while the dipper digging force is 31KN.

  Q4: What is the backhoe swing angle?

  A: The rear backhoe has a swing angle of 190°.

  Q5: What is the hydraulic system pressure?

  A: The hydraulic system pressure is rated at 22MPa.

  Q6: What is the rear bucket capacity?

  A: The standard backhoe bucket capacity is 0.3m³.
