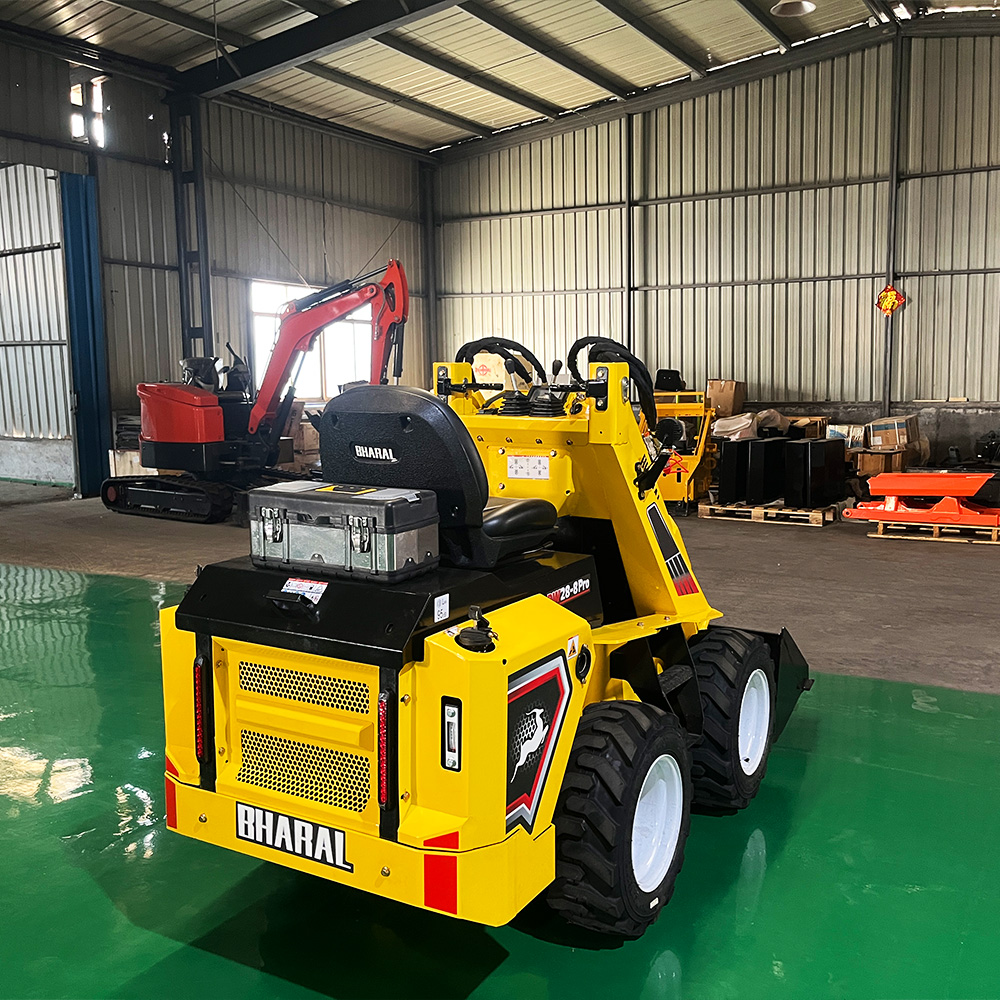

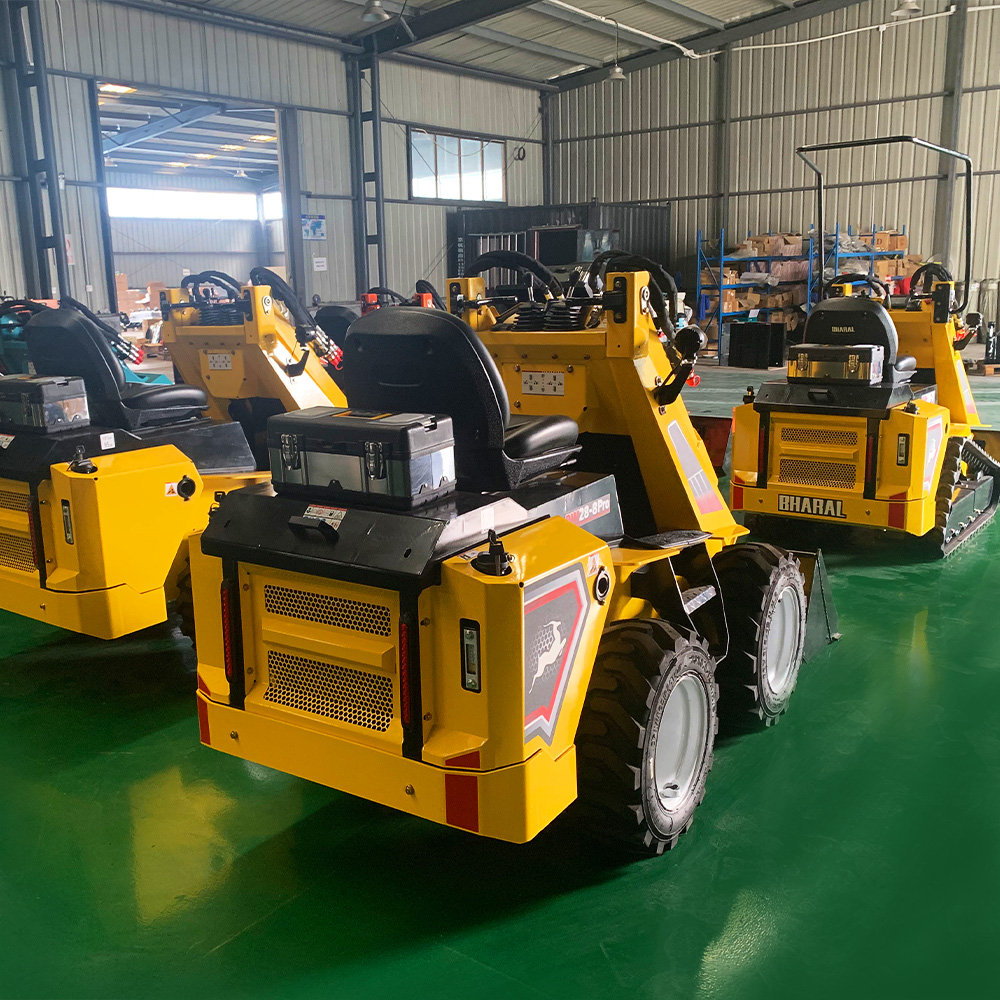

RW28-8 Pro Mini Wheel Skid Steer Loader 23HP EFI Engine EPA Euro V Certified High-end Main Valve Multi-attachment Skid Steer

RW28-8 Pro Mini Wheel Skid Steer Loader 23HP EFI Engine EPA Euro V Certified High-end Main Valve Multi-attachment Skid Steer

USD $7500.00 - $8000.00 / قطع

الحد الأدنى للطلب: 1 قطع

Operating weight:
1050Kg
Tipping Load:
550Kg
Rated Operating Capacity:
360Kg
Max. Travel Speed:
8.5Km/h
شروط التجارة المدعومة:
FOB
السعر المرجعي:
USD $7500.00 - $8000.00
الحد الأدنى لكمية الطلب:
1 قطع
مهلة التسليم:
30 working days
القدرة على التوريد:
50 قطع لكل أسبوع
ميناء الشحن:
Qingdao
إرسال استفسار

The RW28-8 Pro Mini Skid Steer Loader is an upgraded compact wheel-type compact utility loader optimized for narrow and complex job sites. This EPA and Euro V certified mini skid steer loader features EFI electronic fuel injection engine, intelligent dual-screen control and adjustable multi-power modes, delivering stronger and more stable performance for landscaping, farm maintenance, residential construction, snow removal, warehouse material handling and backyard renovation.

Powered by a 23HP ZONSENROTO 292 twin-cylinder EFI gasoline engine with optional Kepu engine solution, this upgraded small skid steer loader fully meets EPA and Euro V emission standards, eligible for North America & European market import. Equipped with high-flow hydraulic system and upgraded main valve, the machine supports full-series interchangeable attachments and complex simultaneous working movements, including dirt bucket, snow blower, sweeper, mower, pallet fork and grapple bucket, achieving true one machine for multiple jobs.

tu3

With ultra-compact body dimension, minimum turning radius, 2-speed travel and 5-level power adjustment, RW28-8 Pro mini skid steer works efficiently and energy-saving in greenhouses, garden yards, narrow alleys and indoor renovation sites where large loaders cannot access.

未标题-1

Jining Hejia Electromechanical Equipment Co., Ltd.

Founded on October 17, 2019, Jining Hejia Electromechanical Equipment Co., Ltd. is located in Rencheng District, Jining City, Shandong Province, the well-known base for construction machinery industry in China.
We specialize in the supply of construction machinery, mainly including mini skid steer loaders, compact engineering equipment, construction machinery, general mining machinery and machinery spare parts.
We provide one-stop services including equipment supply, customized machine production, optional attachments, on-site installation, equipment rental and after-sales maintenance. Our machines are widely adopted in landscaping, municipal works, mining, construction, water conservancy projects, farms, greenhouses and property maintenance.

Our product range also covers hardware & electromechanical products, metal materials, rubber sealing parts, thermal insulation & waterproof materials, safety equipment and labor protection supplies. Benefiting from Jining complete construction machinery industrial chain, we strictly control product quality and deliver cost-effective machinery and professional technical support for global buyers.

We offer custom machines, technical consultation and export service for overseas orders. We aim to be your trusted one-stop supplier for construction machinery.

tu1

 1. Core Power Configuration

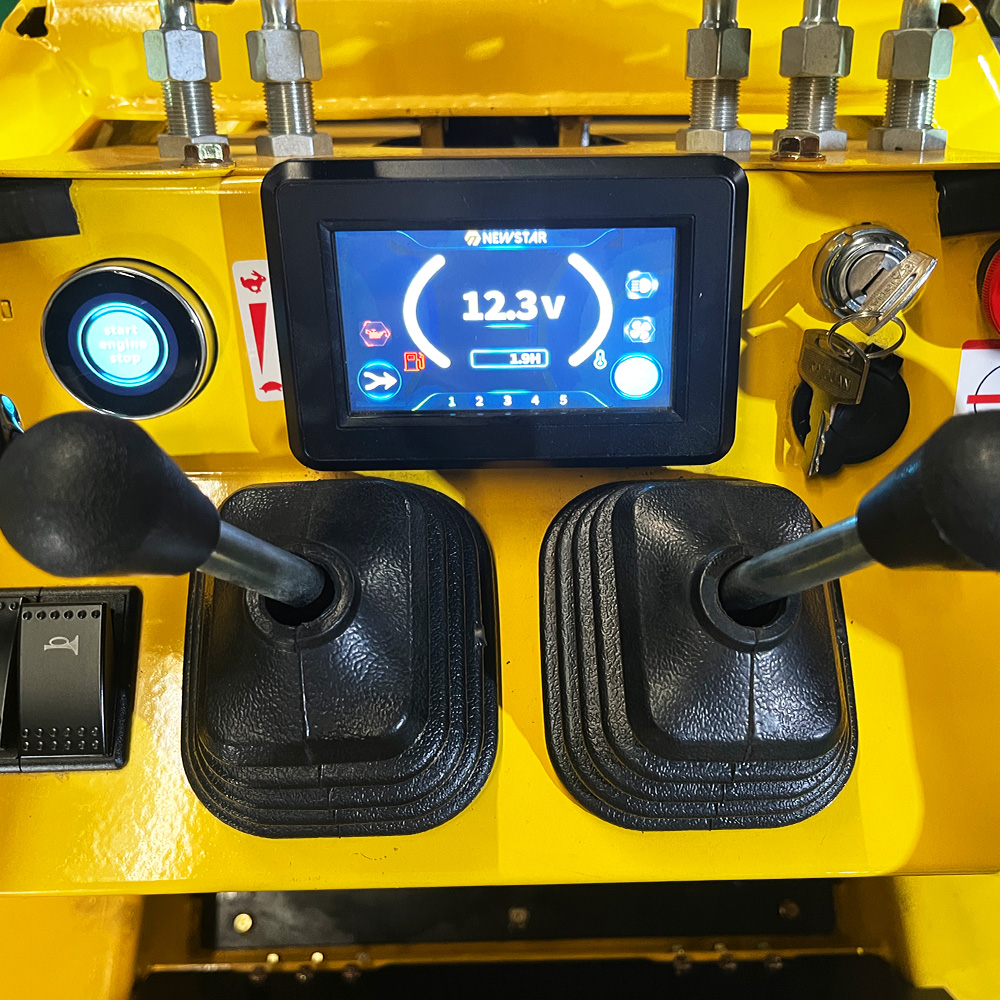

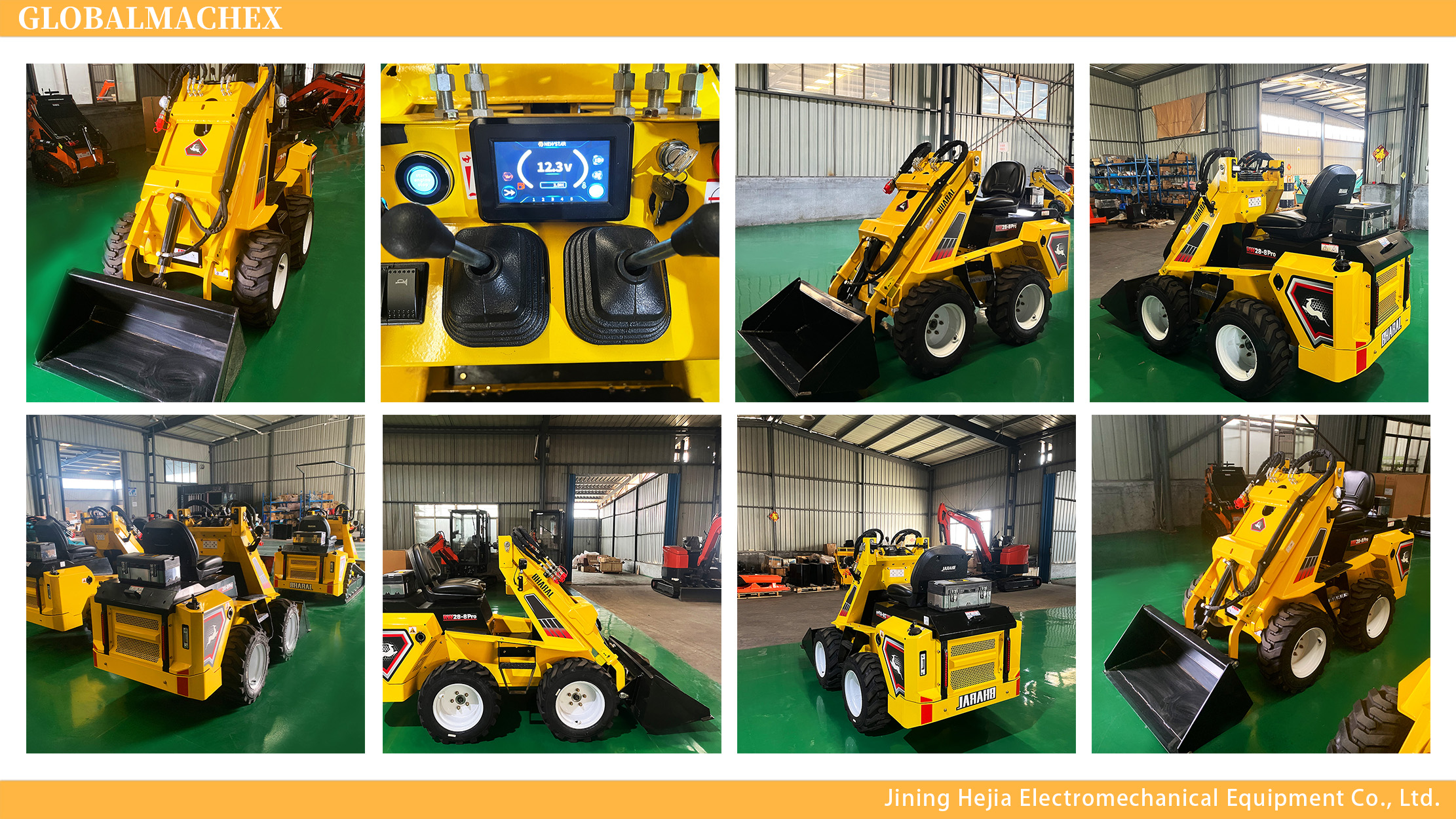

  • Equipped with circular LCD instrument + 4.3-inch touch screen, knob & touch dual-control design with one-key start. Real-time monitoring of engine data and working status, simpler operation and higher intelligent level than ordinary models.

2.  Dimension & Trafficability

Independent 5 power working modes adapt to light-load, medium-load and heavy-load conditions intelligently, effectively reducing idle fuel consumption. High and low two-speed travel design, low speed provides super traction for heavy work, high speed improves moving efficiency for flat ground operation.

 3.  Control & Electric System

High-flow hydraulic pump matched with upgraded high-grade main valve and electronic control attachment valve. The hydraulic output is stable and smooth, supporting all full-series skid steer attachments and 2+ simultaneous compound working movements.

4. Attachments & Application

23*8.5-12 thickened vacuum rubber tires feature wear resistance and impact resistance, ensuring strong grip on lawn, pavement and gravel ground without damaging the site. Reinforced steel frame greatly extends service life under long-term heavy-duty operation.

5. Export Advantages

Narrow body design with small turning radius, flexible steering and flexible operation. It is the ideal upgraded mini skid steer loader for landscaping contractors, property management, farm users and small construction teams.

tu2

Technical Specification

Item
Parameter
Model
RW28-8 Pro Mini Skid Steer Loader
Operating Weight
1050 Kg
Rated Operating Capacity
360 Kg
Tipping Load
550 Kg
Max Travel Speed
8.5 Km/h
Engine
ZONSENROTO 292 EFI Twin-cylinder Gasoline Engine / Optional Kepu 292
Engine Power
16.8kW / 3600rpm
Emission Standard
EPA Certified, Euro V
Control Mode
Mechanical Operation, Single Hydraulic Output, One-key Start
Display
Circular LCD Instrument + 4.3-inch Touch Screen
Working Modes
5-level Adjustable Power Modes
Travel Speed
High & Low 2-speed Switchable
System Working Pressure
20 MPa
Fuel Tank Capacity
20 L
Hydraulic Oil Tank Capacity
20 L
Tire Spec
23*8.5-12 Vacuum Tire

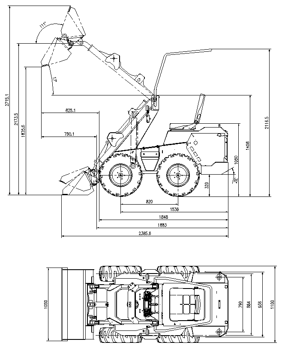

Overall Length (with bucket)
2385 mm
Overall Length (without bucket)
1885 mm
Overall Width
1100 mm
Overall Height
2115 mm
Max Working Height
2715 mm
Dumping Height
2173 mm
Ground Clearance
320 mm

海报

Application Scenarios

  • Landscaping & garden maintenance
  • Residential backyard construction & renovation
  • Snow removal, snow blowing, street cleaning
  • Farm, orchard & greenhouse material transport
  • Property maintenance, municipal small engineering
  • Warehouse, factory indoor material handling
  • Road repair, pavement cleaning and narrow-site construction

b4feb115-b468-4e6c-af3c-91447c0b66fe

Q1: Is this RW28-8 Pro skid steer loader EPA certified for USA market?

A1: Yes. Equipped with ZONSENROTO 292 EFI 23HP twin-cylinder gasoline engine with EPA & Euro V emission certification, can be imported to United States, Canada and European countries. Optional Kepu engine is also available for different market demands.

Q2: What are the advantages of RW28-8 Pro compared with ordinary mini skid steer?

A2: RW28-8 Pro adopts EFI electronic fuel injection engine, 5-level power adjustable modes and dual-screen intelligent control system. The upgraded hydraulic main valve provides smoother operation and lower fuel consumption. It supports more complex attachment movements and adapts to more working conditions.

Q3: How many attachments can this mini skid steer support?

A3: The high-flow hydraulic system and electronic control valve support all full-series skid steer attachments and attachments that require 2 or more simultaneous movements. We supply full series attachments for optional purchase.

Q4: What is the rated load capacity of RW28-8 Pro?

A4: Rated operating capacity is 360kg, tipping load reaches 550kg, stable and reliable for daily landscaping, farm and construction tasks.
