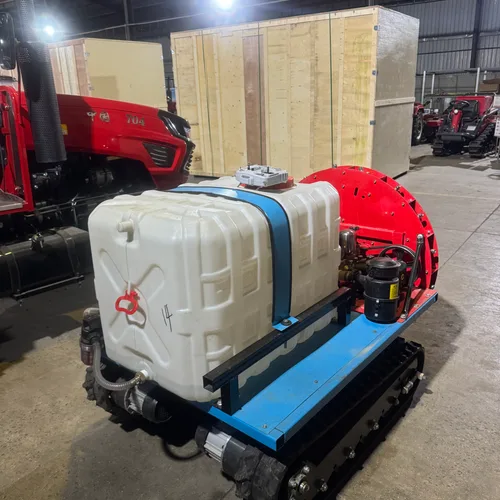

مقدمة المنتج: رشاش بساتين مجنزر يعمل بالهواء المضغوط ويتم التحكم فيه عن بعد

Chinese parameters	Specifications
Engine Model	195F Diesel Engine (Electric Start)
Power	10.2（kw）
Generator	56V 2500W (or 5kW Gasoline Range Extender)
Battery	4820 Set (with Charger)
Travel Motor	1600W (2×800W)
Crawler Track	150*60*44（Links）
Water Tank	400L Stainless Steel (Plate Thickness 1.8mm)
Solenoid Valve	5404 High Pressure (Remote Switch Control)
Spray Width	10-14（Meters）
Gradeability	≤45°
Spraying Speed	0-3/8（km/h）
Travel Speed	0-8（km/h）
Remote Control Distance	700 m
Overall Dimension (L×W×H)	1800×1000×1050mm
Steering Mode	In-situ Turning
Weight	(Net Weight)
Water Pump	60 High-Pressure Water Pump
Nozzle Quantity	12 Sets "Little Bee" Bidirectional Ceramic Nozzles

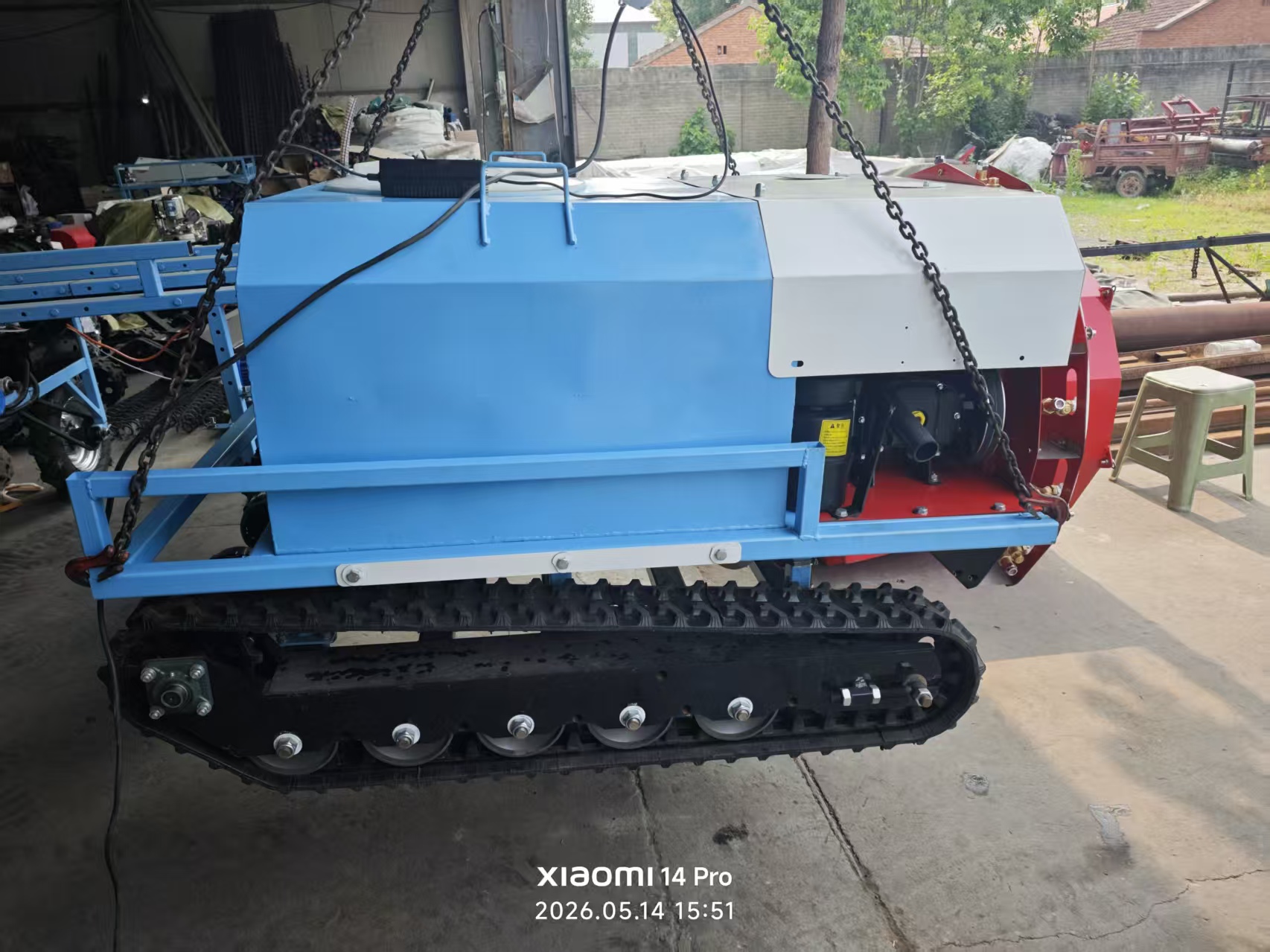

Product Introduction: Tracked Remote-Controlled Air-Assisted Orchard Sprayer
I. Detailed Specifications

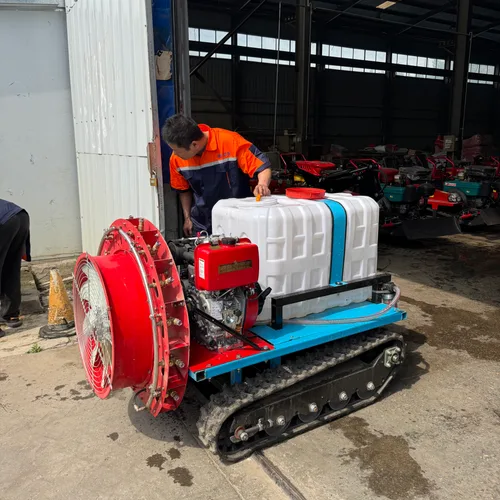

Power System: 195F electric-start diesel engine, 10.2 kW; equipped with a 56V 2500W generator + 48V 20Ah battery, optional 5 kW gasoline range extender; dual 800W travel drive motors
Pesticide Tank: 400L heavy-duty stainless steel tank (1.8mm sheet metal), equipped with a 60L/min high-pressure pump + 5404 solenoid valve for remote mist control
Spray Configuration: 12 sets of bidirectional ceramic “Little Bee” nozzles, air-assisted spray width 10–14 meters, uniform atomization with strong penetration

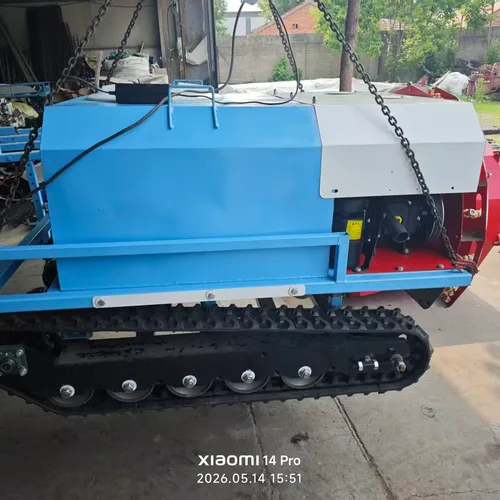

Chassis: 150×60×44 rubber tracks, 360° on-the-spot turning, maximum climbing angle ≤45°; travel speed 0–8 km/h, spraying speed 0–3.8 km/h
Remote Control Performance: Wireless remote control with a range of up to 700 meters; operators can control the machine from the field edge without entering the orchard and coming into contact with pesticides
Machine Dimensions: 1800×1000×1050 mm; Net weight: 454 kg;

II. Suitable Application Scenarios
✅ Suitable Areas
All types of orchards (primary applications): Densely planted orchards such as apple, cherry, citrus, peach, and grape orchards; mountainous and sloped orchards (easily climbs slopes up to 45°);
Hilly terraced fields and scattered sloped orchards: uneven, rocky slopes and mountainous orchards inaccessible to wheeled vehicles;
Nurseries, landscaping, and commercial tree plantations: large-scale pest control in nursery plots and protective forest spraying;
Contiguous greenhouse and open-field fruit and vegetable bases: large-scale open-air vegetable gardens and contiguous commercial crop spraying for pest control.
❌ Not suitable for: Deep, muddy paddy fields (can operate on dry land and moist orchard soil)

III. Core Operational Functions

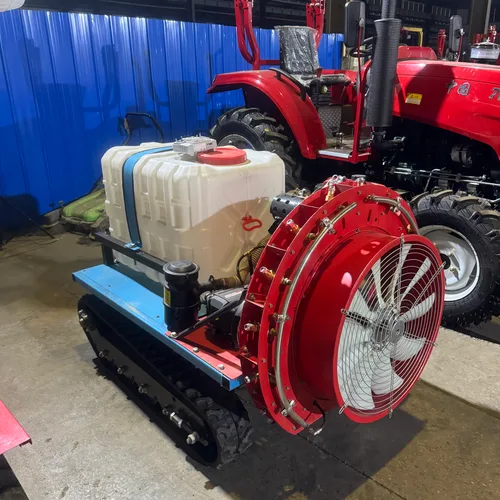

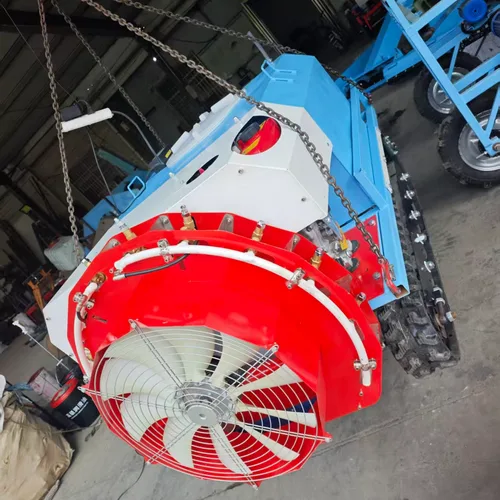

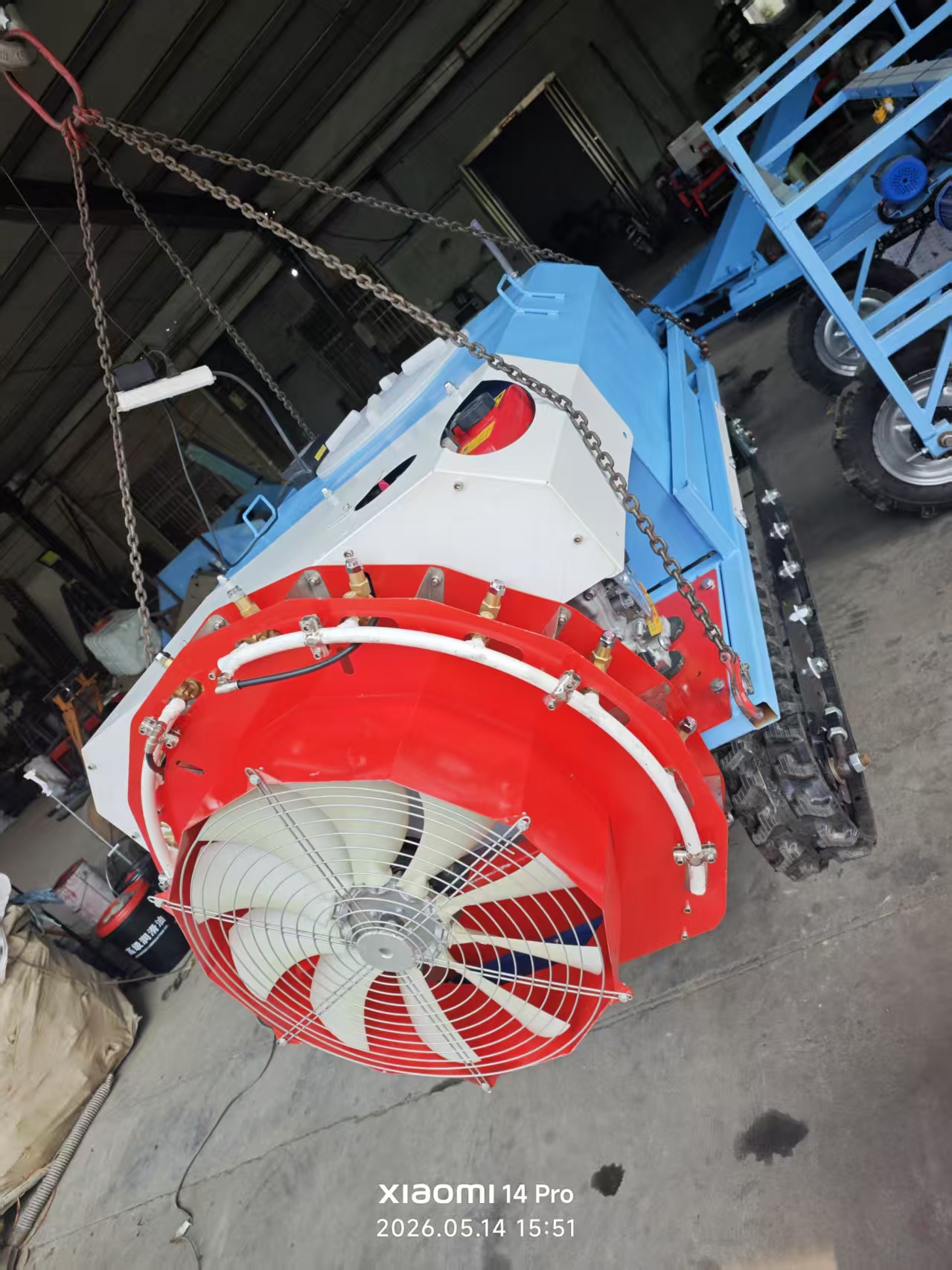

Air-assisted directional spraying: A rear-mounted high-capacity fan propels atomized mist, allowing the spray to penetrate the tree canopy and evenly coat both sides of the foliage. Twelve sets of bidirectional nozzles create a 33–46-foot spray width, saving time and reducing chemical usage;
Remote Solenoid Valve-Controlled Spraying: Allows for segmented nozzle activation, enabling single-side or section-by-section spraying to minimize pesticide waste on trees in corners and edges;
Fully Remote-Controlled Autonomous Operation: 700-meter remote control for forward/reverse movement, turning, and spray activation/deactivation, keeping operators away from pesticides to prevent poisoning;
Multifunctional Expansion: The chassis features pre-installed mounting points for attachments, allowing for the installation of rotary tillers or trenching tools, enabling a single machine to handle both spraying and field cultivation.

IV. Core Product Advantages
Long-Range Remote Control Operation: Operators can control the machine from the field ridge without having to walk through densely planted orchards, eliminating pesticide exposure and saving on labor;
Superior Climbing and Off-Road Capability: The tracked chassis can climb slopes up to 45°, allowing for smooth navigation through mountainous terrain, terraced fields, and muddy orchards without slipping or getting stuck;
Thickened Stainless Steel Tank: Resistant to corrosion and pesticide degradation, ensuring a long service life; the 400L large capacity reduces the need for frequent refilling of water and pesticide solution;

Air-assisted atomization saves pesticide: The air-assisted spray system ensures excellent adhesion and high utilization, saving over 30% in pesticide solution compared to manual spraying, with efficiency more than 10 times that of manual labor;
Diesel engine with ample runtime: The 195 diesel engine provides long-lasting power for all-day, uninterrupted operation; the onboard generator produces its own electricity, eliminating the need for external charging.
