New Heavy Manganese Steel Frame Livestock Carrier With Standard Double Swing Rear Door For Overseas Farm Live Cattle Horse Transport

New Heavy Manganese Steel Frame Livestock Carrier With Standard Double Swing Rear Door For Overseas Farm Live Cattle Horse Transport

USD $16296.00 / قطع

الحد الأدنى للطلب: 1 قطع

Overall Dimension:
17.5m Length × 3m Width × 4.35m Total Height
Main Beam Top Flange:
10mm Manganese Steel
Main Beam Bottom Flange:
12mm Manganese Steel
Main Web Plate:
6mm Manganese Steel
السعر المرجعي:
USD $16296.00
الحد الأدنى لكمية الطلب:
1 قطع
إرسال استفسار

ميزات المنتج وتطبيقاته

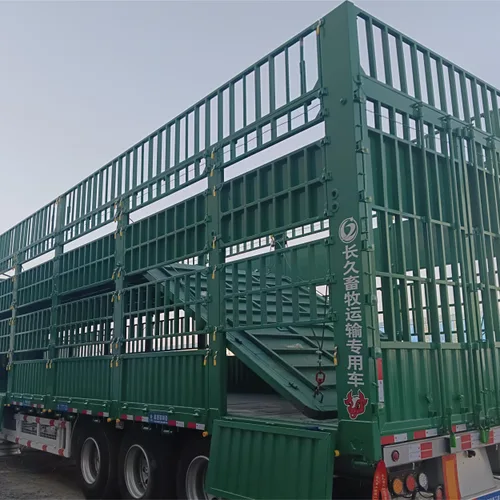

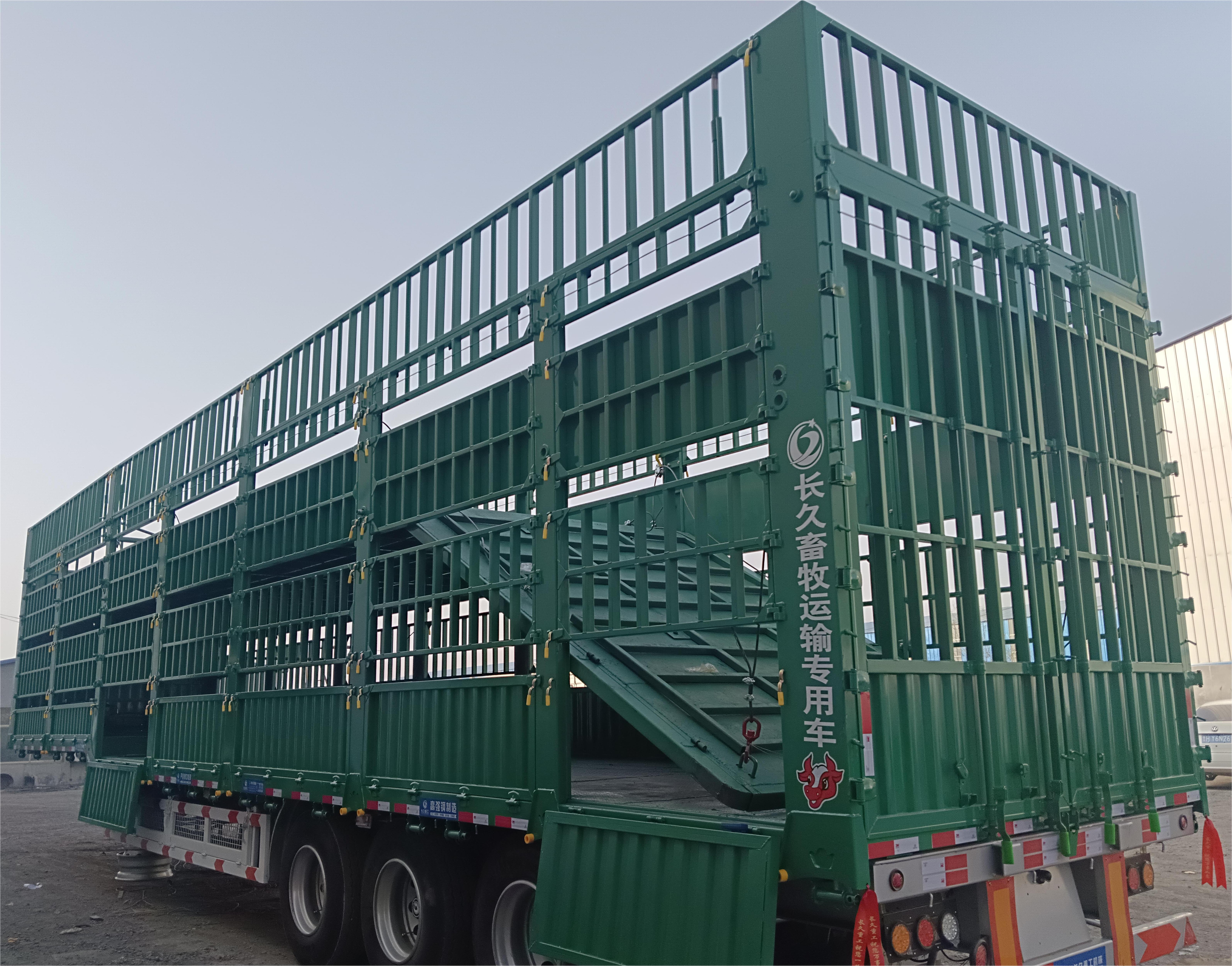

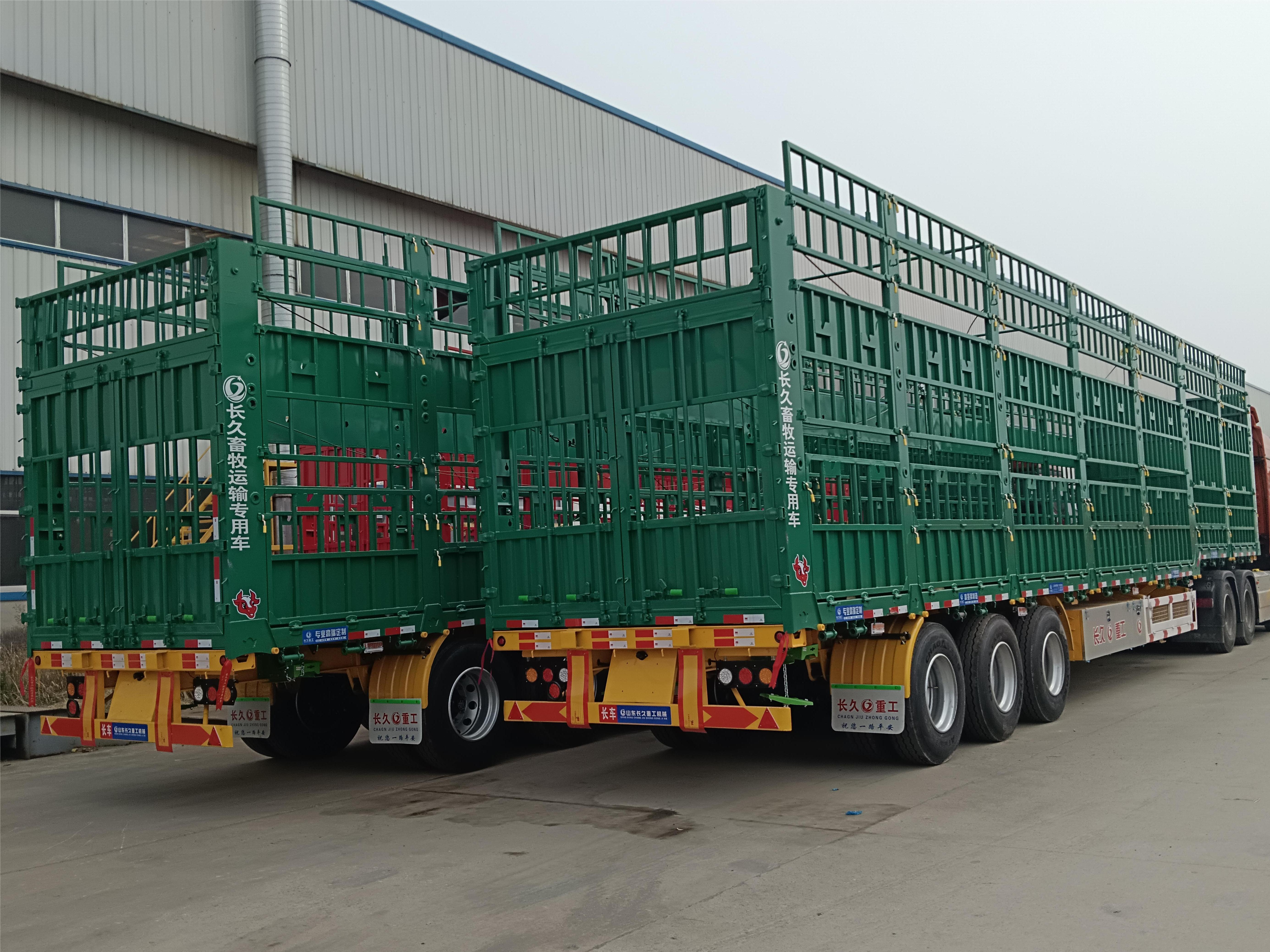

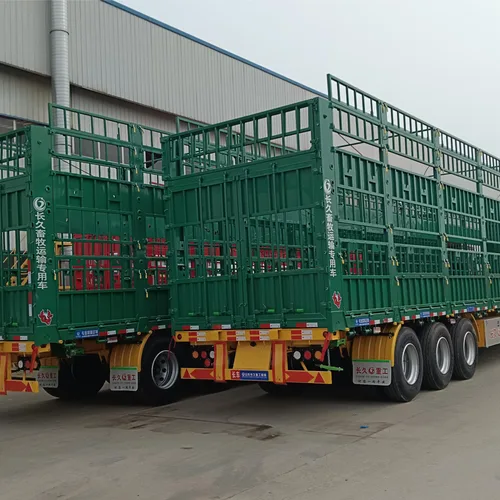

3-axle special double-deck livestock transport semi-trailer with overall dimension 17.5m×3m×4.35m. The main beam is integrally welded by thickened manganese steel with top flange 10mm, bottom flange 12mm and web plate 6mm. Equipped with 3-axle mechanical shock-absorbing suspension and standard 12R22.5 heavy-duty vacuum tires. Fitted with electric lifting second-floor platform to realize double-layer loading of large livestock such as cattle and horses, standard ordinary double swing rear door at rear. The ventilated high fence structure ensures sufficient air circulation for live animals. Main beam thickness, lifting system and body paint color are all customizable, mass exported to cross-border long-distance live stock transport projects of large farms in Central Asia and Africa.

  1. Core Foreign Trade Advantage Of Thickened Manganese Beam & Electric Double Deck Lifting System
    The main beam is integrally formed by automatic submerged arc welding with 10mm top flange, 12mm bottom flange and 6mm web manganese steel plate, featuring stable bending & torsion resistance, free of deformation or fracture during long-distance live stock haulage on bumpy gravel farm roads in Central Asia and Africa. The core highlight of this trailer is electric lifting second-floor platform with one-button electric control lifting, no manual partition disassembly required, fast switching between single-layer and double-layer loading modes. Double-layer mode can stably carry large livestock such as cattle and horses to greatly boost single transport capacity. The 3-axle mechanical spring suspension boasts simple durable structure with low failure rate under high-temperature dusty farm conditions, globally universal spare parts to cut overseas maintenance procurement cost.
  2. 17.5m Full Ventilation Double Deck Special Livestock Structural Design
    Total trailer height reaches 4.35m with 3-meter wide fully ventilated mesh side high fences without closed dead corners, sufficient air circulation during long-distance transit to reduce animal stress and heat loss. Anti-slip patterned floor with guard strips laid on electric lifting platform to prevent cattle and horses from slipping and injury during walking. Standard ordinary double swing split rear door with wide opening width, animals can load and unload directly via site ramps without extra auxiliary ramp. Locking latches equipped on lifting platform to firmly fix the second floor under full load and eliminate shaking & tilting risks during transit.
  3. Stable Load Bearing System With 3-Axle Mechanical Suspension
    Three sets of heavy-duty mechanical shock-absorbing spring suspension buffer bump damage to livestock during long haulage, thickened reinforced balance arms distribute load evenly on three axles under full double-layer live stock load to avoid over-wear on single axle. Matched with 12R22.5 heavy-duty vacuum tires with wear and puncture resistance, adapting to complex gravel farm roads in desert and rural areas. Full standard ABS anti-lock braking system delivers stable non-locking braking on long downhill roads under heavy live stock load to prevent animal extrusion injury caused by sudden brake. Complete waterproof integrated wiring harness, compliant LED tail lamps and full-body reflective warning signs meet cross-border farm freight safety regulations of all countries.
  4. Full-range Personalized Customization Service For Overseas Market
    Main beam steel thickness can be upgraded on demand, hydraulic lifting system optional to replace electric lifting. Vent mesh density of side fence, overall trailer height and rear door style are adjustable. Whole vehicle paint color, farm brand LOGO and side advertising graphics are fully customizable. Full vehicle load, brake and beam flaw detection finished before delivery, trailer factory certificate and customs clearance documents supplied to simplify overseas farm cross-border live stock registration and customs clearance procedures.
  5. Core Application Scenarios
    Long-distance cross-border transportation of live cattle and horses from large farms, transit haulage for livestock auction in agricultural & pastoral areas, cross-border import & export logistics of live livestock. This 3-axle electric double-deck lifting livestock semi-trailer is the mainstream special livestock carrier exported to large farms in Central Asia and Africa for long-distance live stock transport.
  6. Full Export Supporting Service
    ①Main beam material flaw inspection report, whole vehicle brake load safety test report and trailer factory certificate available, assistance for full CE export certification documents.
    ②Double anti-rust epoxy primer & industrial wear-resistant top coat for whole trailer, independent protective film wrapping for electric lifting control parts, lamps and pipelines, solid wooden frame packaging for long-distance ocean shipping. 24-hour Chinese & English online technical after-sales support, wearing parts including axles, suspension, tires, lifting motors and brake accessories can be exported separately in bulk for replenishment.
    ③Traction pin size adjustable to match tractor head connection standards worldwide; dual Chinese & English manual for trailer installation, electric lifting maintenance and brake troubleshooting supplied.
