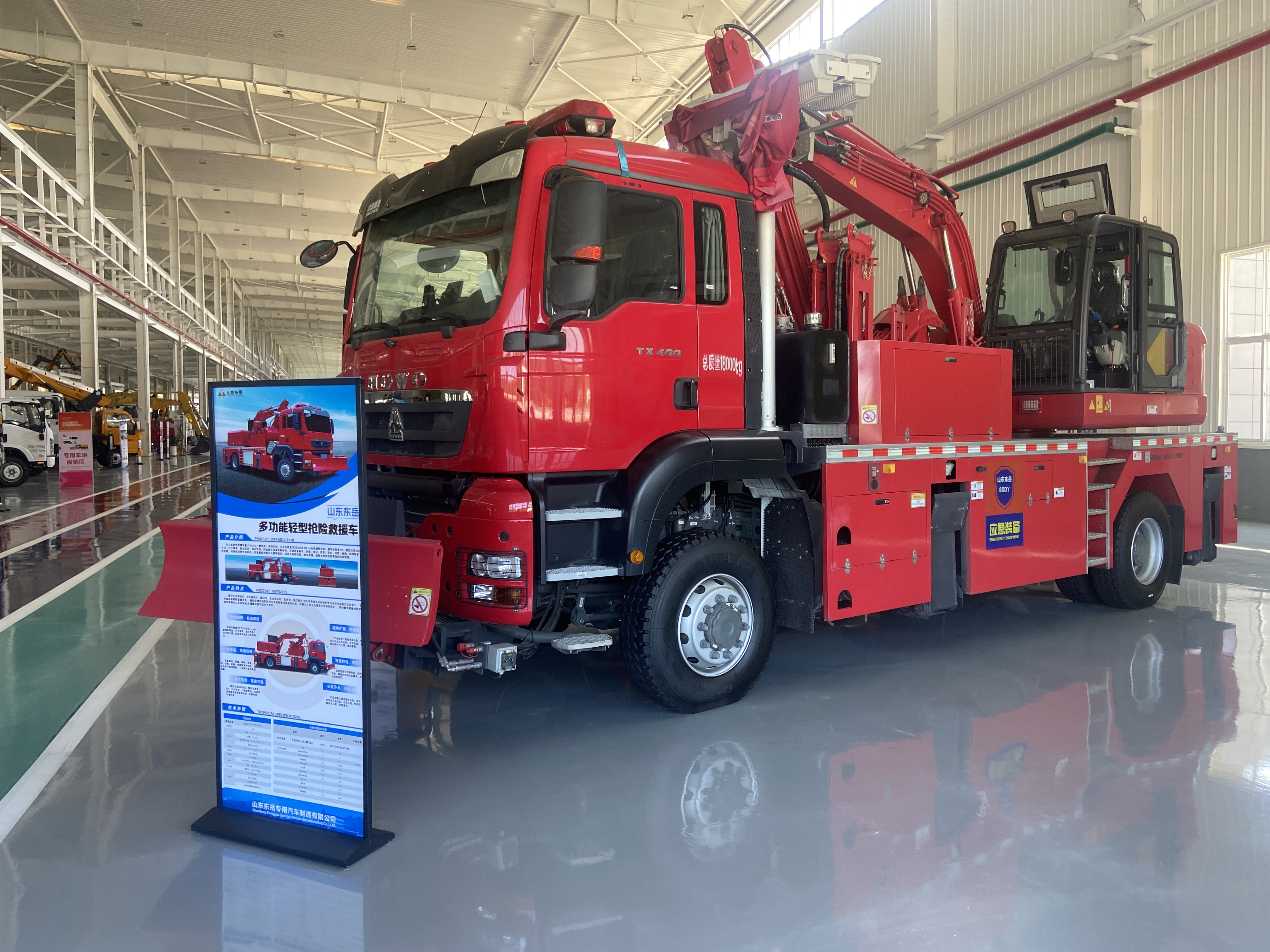

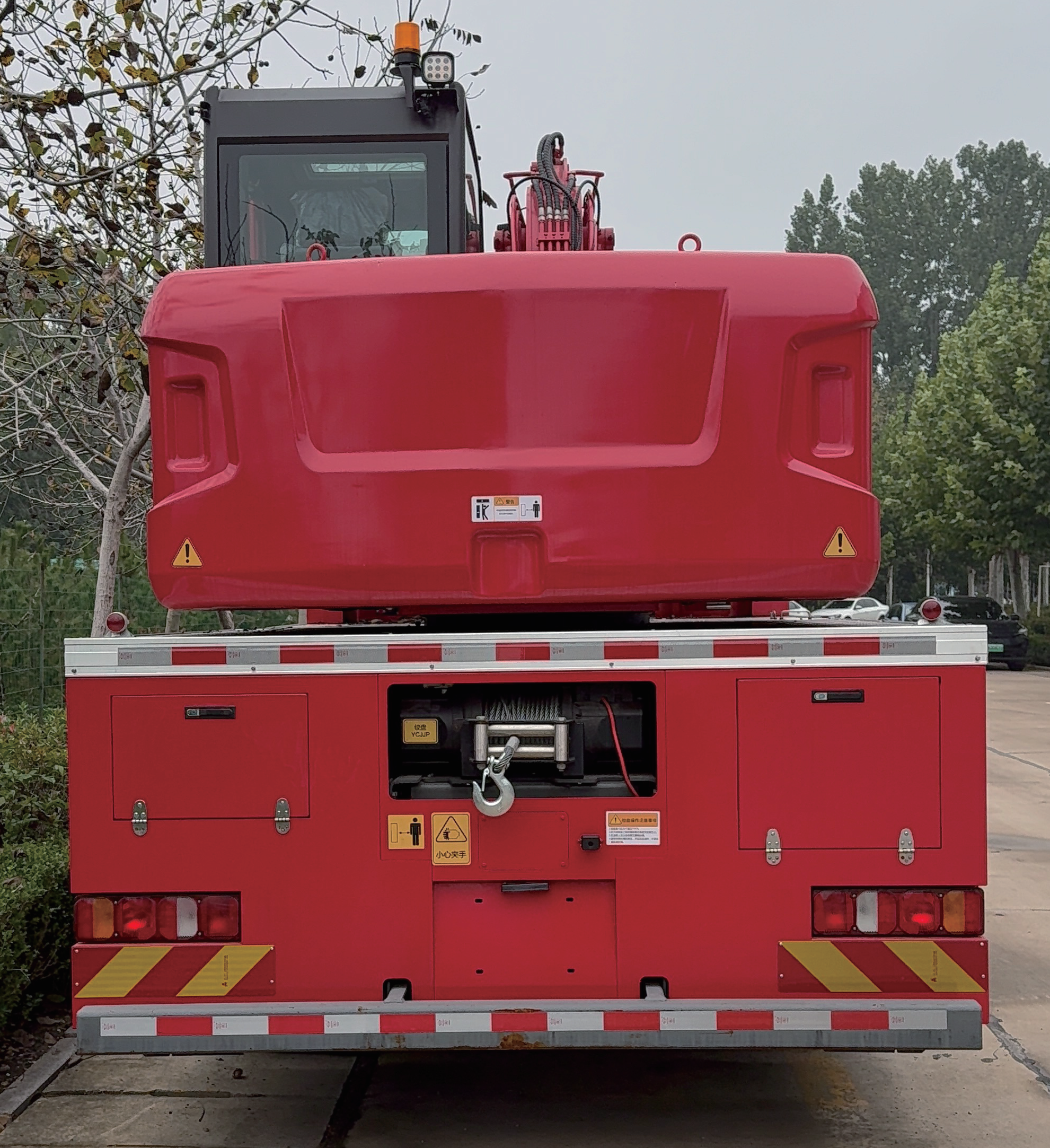

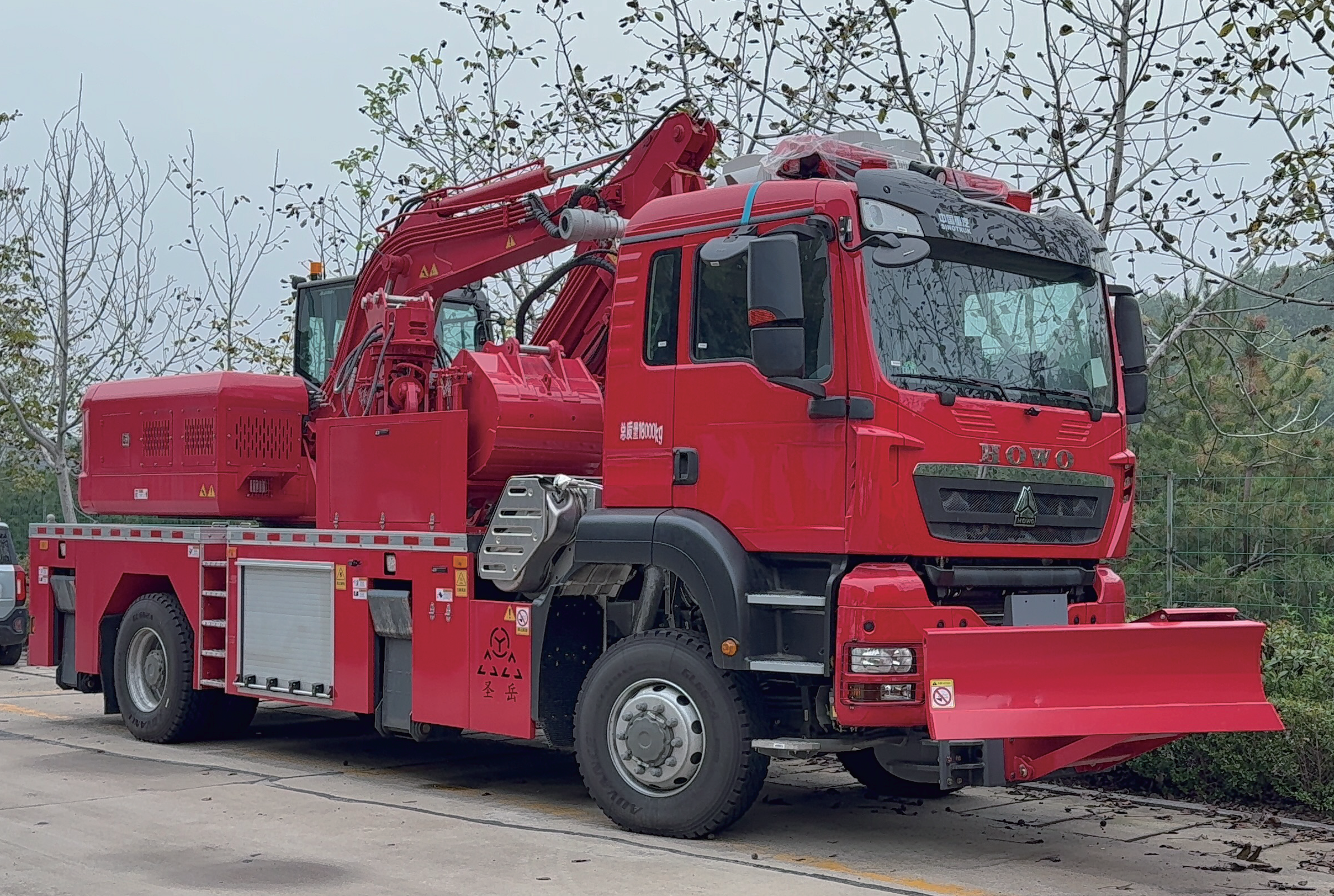

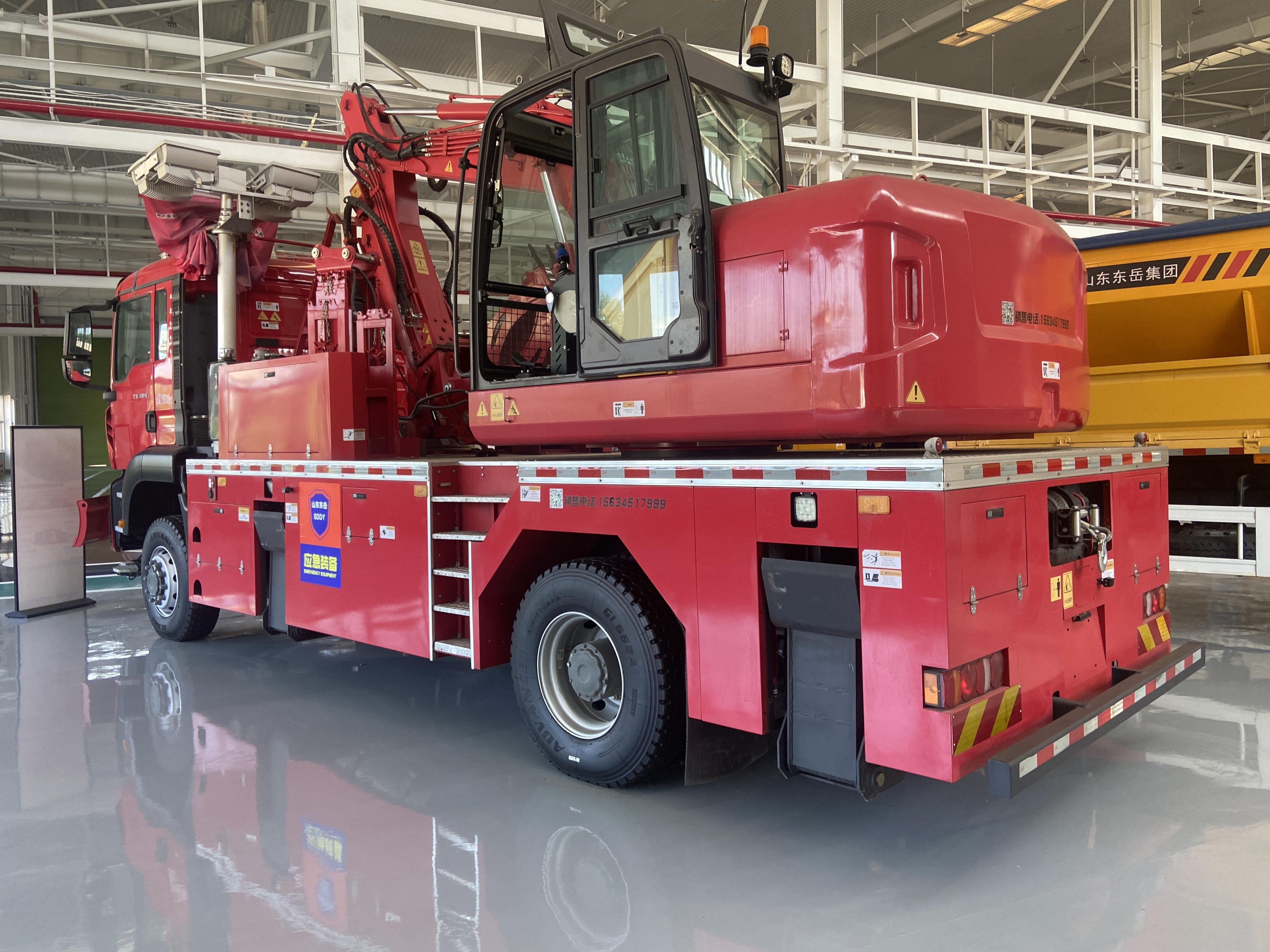

Multi-purpose lightweight emergency rescue vehicle
USD $164179.00
/ وحدات
الحد الأدنى للطلب: 1 وحدات
- Dimensions:
- 8620×2550×3960mm
- Wheelbase:
- 5100mm
- Drive type:
- 4×4
- Engine model::
- MC11.46-61
شروط التجارة المدعومة:
FOB
- السعر المرجعي:
- USD $164179.00
- الحد الأدنى لكمية الطلب:
- 1 وحدات
- مهلة التسليم:
- 30 working days
- القدرة على التوريد:
- 10 قطع لكل شهر
- ميناء الشحن:
- qing'daoqingdao
The multifunctional lightweight emergency rescue vehicle in this series has onboard operation handles similar to those of an excavator, making it easy for operators to quickly get familiar with them. The boom, stick, bucket, and rotation movements of the excavation arm are similar to a traditional excavator, allowing multiple actions to be performed simultaneously and improving work efficiency. It also comes with an 11KW gasoline generator (380V 220V), 360° liftable lighting, an 18KN electric winch, and multiple quick-change attachments. There’s an optional front push shovel setup as well.
المواصفات الفنية
- Dimensions
- 8620×2550×3960mm
- Wheelbase
- 5100mm
- Drive type
- 4×4
- Engine model:
- MC11.46-61
- Displacement
- 10.518L
- Rated power/rpm
- 341KW/1900r/min
- Emission standard
- China VI
- Fuel tank
- 400L aluminum alloy
- Urea tank
- 90L
- Electrical system
- Battery 2×12V×180Ah
- Curb weight
- 17,850kg
- Gross vehicle weight
- 18,000kg
- Minimum turning radius
- ≤21m
- Approach angle
- ≥30°
- Departure angle
- ≥14°
- Maximum gradeability
- ≥30%
- Vertical obstacle clearance
- 360mm
- Tires
- 315/80R22.5
مواصفات التجارة
- السعر المرجعي
- USD $164179.00
- الحد الأدنى لكمية الطلب
- 1 وحدات
- مهلة التسليم
- 30 working days
- القدرة على التوريد
- 10 قطع لكل شهر
- ميناء الشحن
- qing'daoqingdao
شروط التجارة المدعومة:
FOB
Shandong Dongyue Special Vehicle Manufacturing Co., Ltd.
- الموقع
- No.126 Tongji Rd., Jining Hi-Tech Zone, Jining, Shandong, China
- الموظفون
- 501-1000 People
- مساحة المصنع
- < 1,000 m²
- الإيرادات السنوية
- Above US$50 Million
- الأسواق الرئيسية
- Middle East & North Africa / Africa
