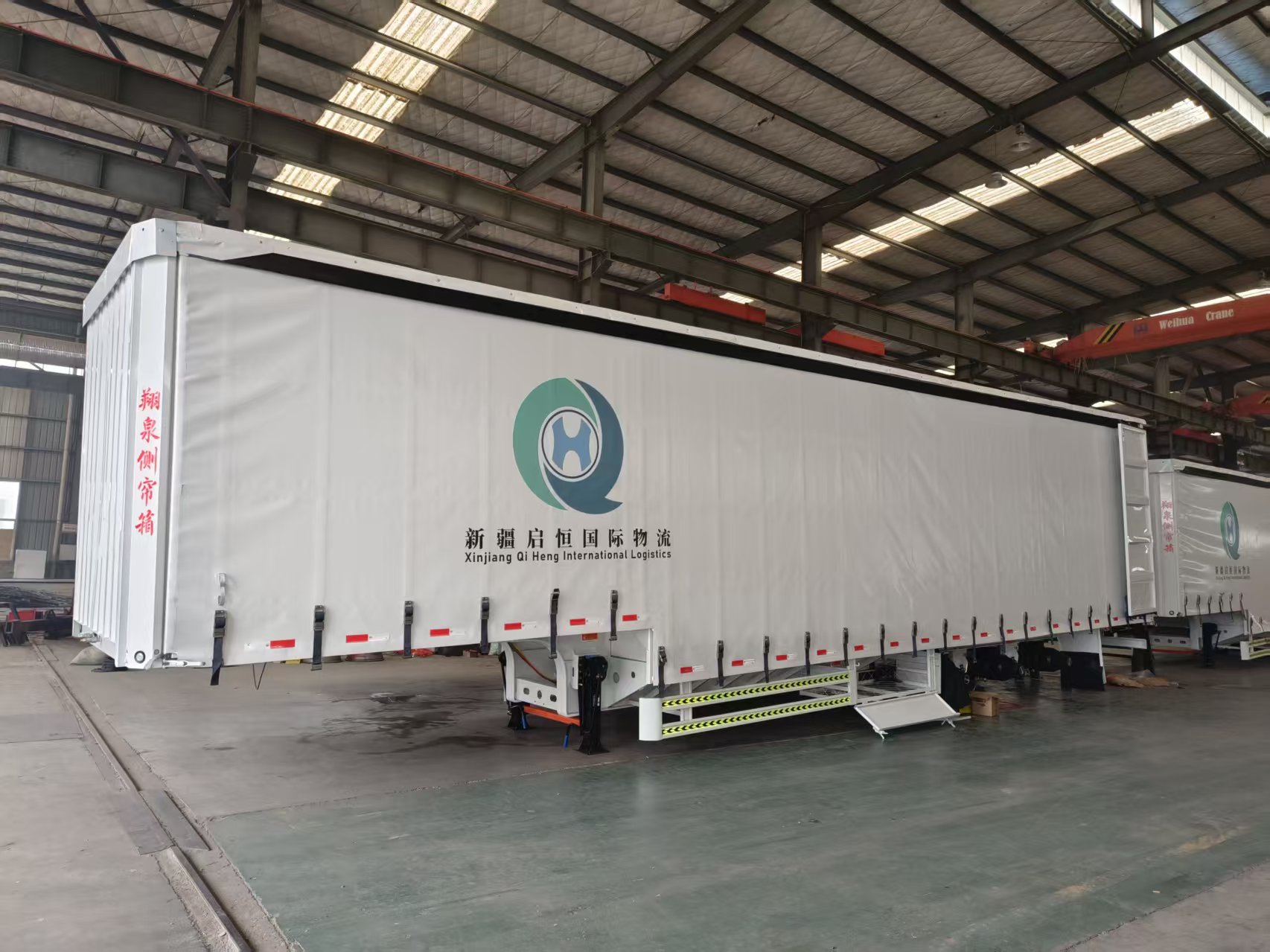

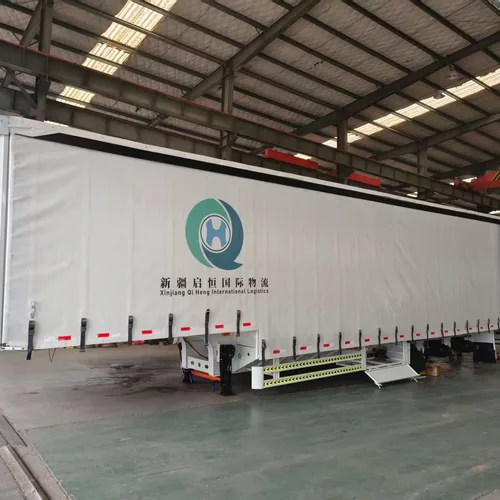

Light Weight Curtain Side Semi-trailer Aluminum Double Rear Door LED Wiring JOST Landing Gear Export Central Asia Europe

Light Weight Curtain Side Semi-trailer Aluminum Double Rear Door LED Wiring JOST Landing Gear Export Central Asia Europe

USD $17777.00 / قطع

الحد الأدنى للطلب: 1 قطع

Overall Dimension:
17000mm(L) × 2750mm(W) × 400mm(H)
Inner Box Size:
16800mm(L) × 2750mm(W) × 2600mm(H)
Curb Weight:
9500 KG
Main Beam:
T700/690D High Strength Steel, Top12mm Bottom12mm Web6mm
السعر المرجعي:
USD $17777.00
الحد الأدنى لكمية الطلب:
1 قطع
إرسال استفسار

ميزات المنتج وتطبيقاته

17m export 4-axle full air suspension lift front curtain side semi-trailer. Overall dimension 17000×2750×400mm, inner box 16800×2750×2600mm, curb weight 9500KG. Adopt T700 high strength steel main beam (top&bottom flange 12mm, web 6mm), 4-axle full air suspension with liftable front axle, Diamond brand heavy axles, Kem ABS & JOST landing gear. Both sides fitted with 600mm aluminum side rail + 2m height sliding waterproof PVC curtain, aluminum double swing rear door. Standard 3mm patterned steel floor (20mm wood floor optional with extra 3000 RMB). Whole chassis shot blasting + double-component 2+2 layer polyurethane paint, LED lamp & pure copper waterproof wiring, Triangle/Chaoyang 12R22.5 / 385 tires. Aluminum wheel rims available with extra cost. Full VAT invoice can be issued, without vehicle registration papers. Widely used for cross-border pallet, e-commerce and general LTL long haul logistics in Europe & Central Asia.

  • Core Export Advantage Of 4-Axle Lift Air Suspension
    Equipped with four sets full air suspension, the front axle can be lifted under empty load to reduce tire wear and cut cross-border highway tolls greatly. Air suspension delivers superior shock absorption to avoid scratch & damage for fragile home appliances and general goods during long transit. Integrally bent T700 high strength main beam provides strong bending resistance without deformation for 17m long box. Lightweight design increases effective cargo volume and fully complies with EU weight limit regulations. Full VAT invoice can be issued without domestic vehicle registration papers, perfect for pure export wholesale clients.
  • Lightweight Aluminum Curtain Side Box Structure
    600mm low aluminum rail + 2m full sliding waterproof PVC curtain fitted on both sides. Curtain can be fully retracted to front/rear for full side forklift pallet loading, doubling loading efficiency. Aluminum side rail, rear door and side guard net feature light weight & anti-corrosion, free of rust in coastal rainy overseas areas. Standard 3mm anti-slip patterned steel floor, optional thick wood floor for food & precision equipment anti-scratch transport. Removable box posts allow loading extra high oversize goods.
  • Premium Export Standard Components
    Mature export-grade full fittings: Diamond heavy-duty axles with stable load capacity, Kem ABS anti-lock brake ensures safety on long downhill; JOST 28-ton heavy landing leg prevents rollover during parking lifting. Pure copper plug-in waterproof wiring & LED side/tail lamps resist extreme temperature without short circuit. Full chassis shot blasting rust removal + double-layer two-component polyurethane anti-rust paint, no peeling under coastal salt fog & desert wind sand. Triangle/Chaoyang wear-resistant vacuum tires with two sizes optional to meet global road standards.
  • Flexible Upgrade & Custom Options
    ①20mm solid wood floor: extra 3000 RMB;
    ②Aluminum wheel rim: extra 7000 RMB;
    ③WABCO brake, widened air bag, higher curtain available for upgrade;
    ④Custom body paint color, box brand LOGO & side advertising printing;
    ⑤Adjustable kingpin, tool box size & lashing tracks.
    Full inspection including beam flaw detection, air lift function and brake performance finished before delivery. Full official VAT invoice supplied without domestic vehicle registration documents to simplify export customs declaration.
  • Core Application Scenarios
    EU cross-border pallet LTL logistics, cross-border e-commerce full truck general cargo haulage, long-distance transport of light industry, home appliances & textiles, bulk standard pallet land transit. This 17m 4-axle air lift aluminum curtain side semi-trailer is mainstream lightweight compliant logistics semi-trailer exported to Europe & Central Asia.
  • Full Export Supporting Service
    ①Main beam material, air suspension lift & whole brake test reports provided, full VAT invoice available (no vehicle registration certificate).
    ②Whole trailer wrapped by protective film, solid wooden frame packaging for ocean shipping.
    ③24-hour Chinese & English online after-sales service, spare parts of air bag, axles, tires, curtain cloth & ABS can be exported in bulk separately.
    ④Dual Chinese & English manual for air suspension, curtain and brake maintenance supplied.
