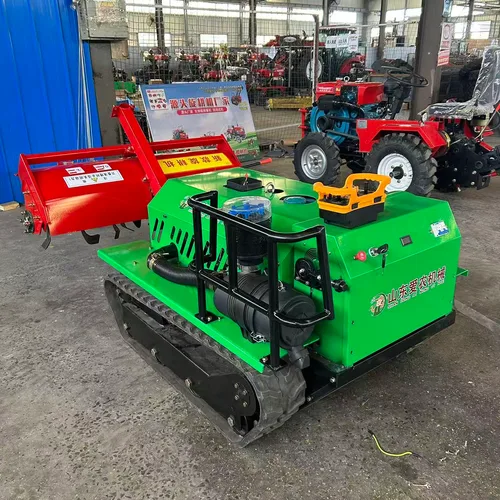

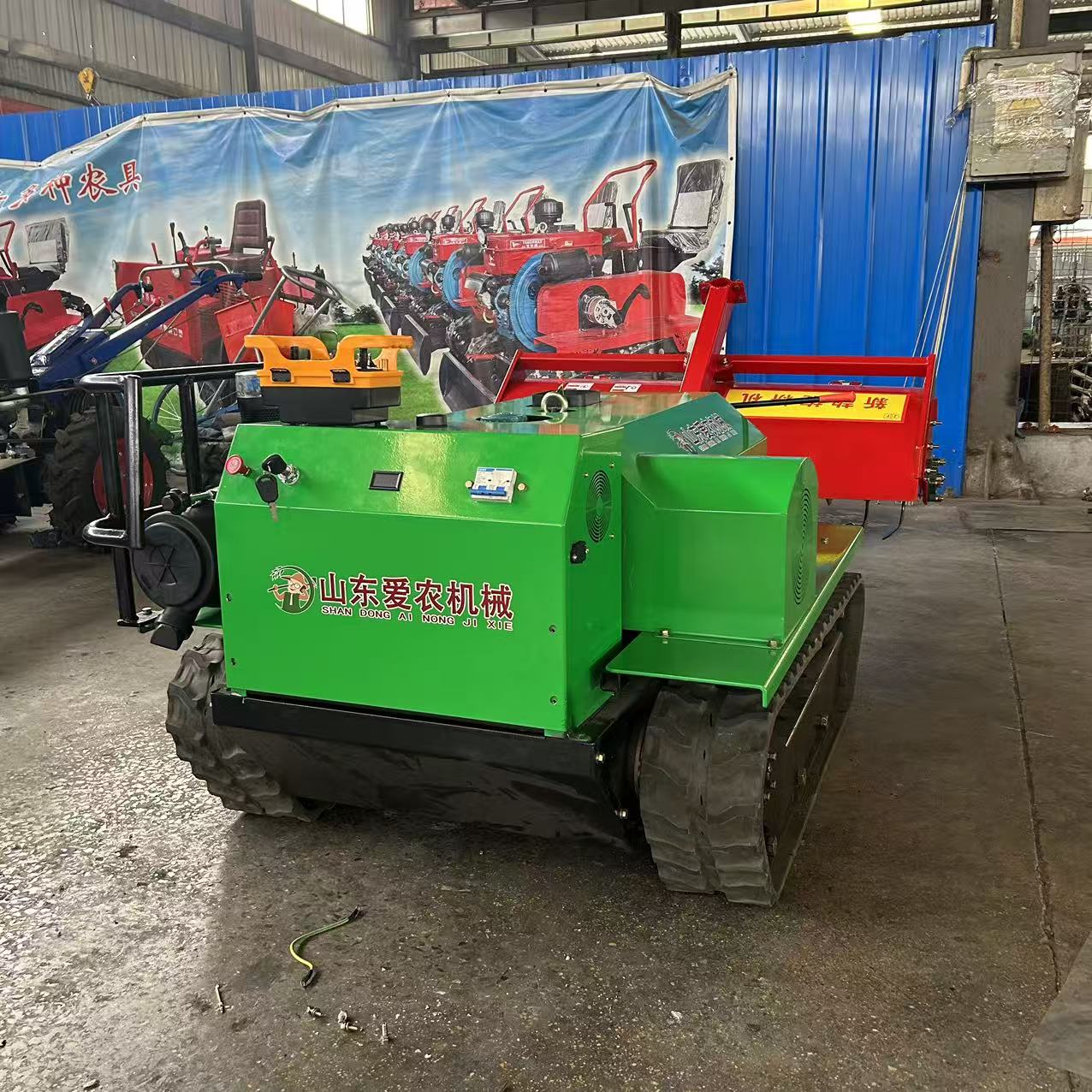

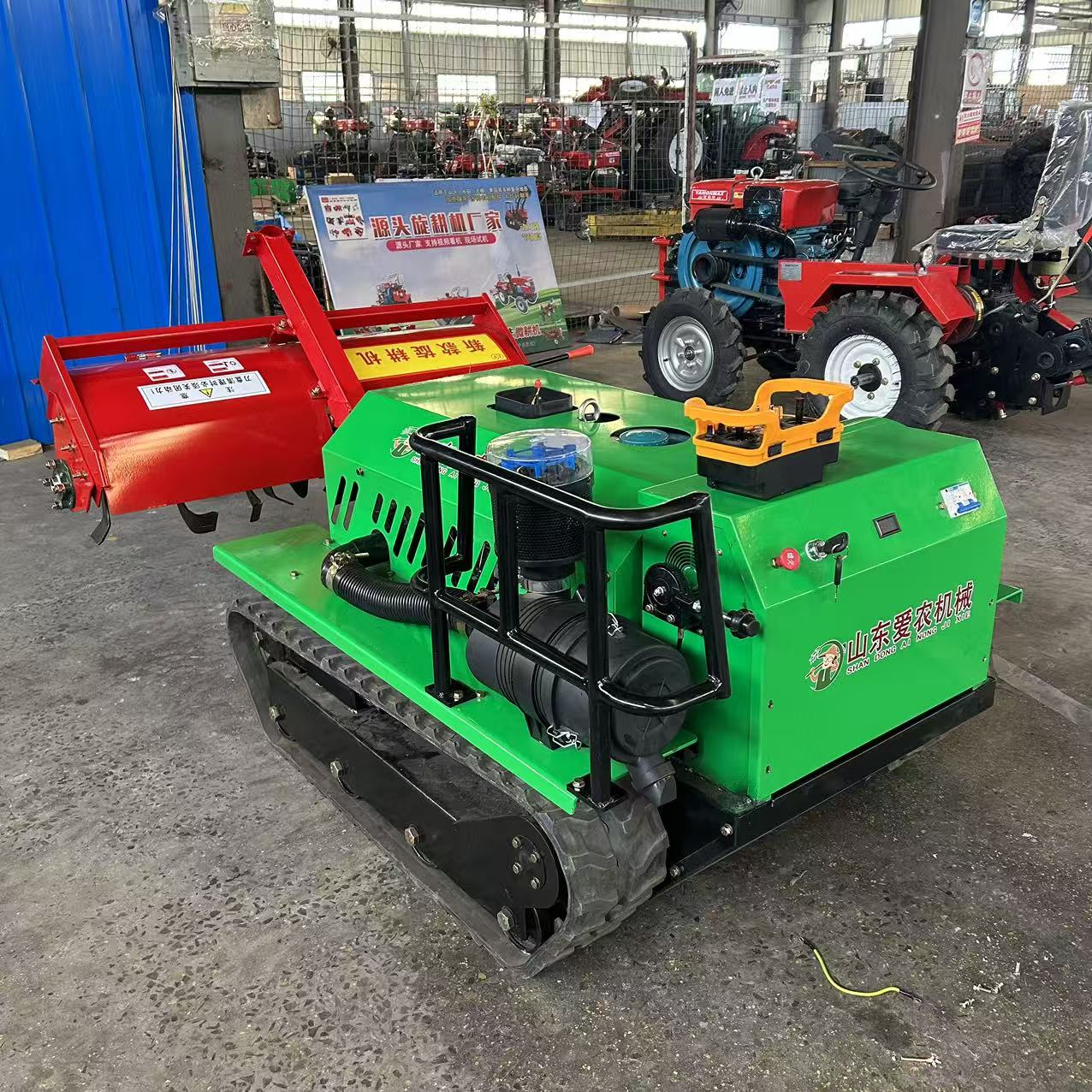

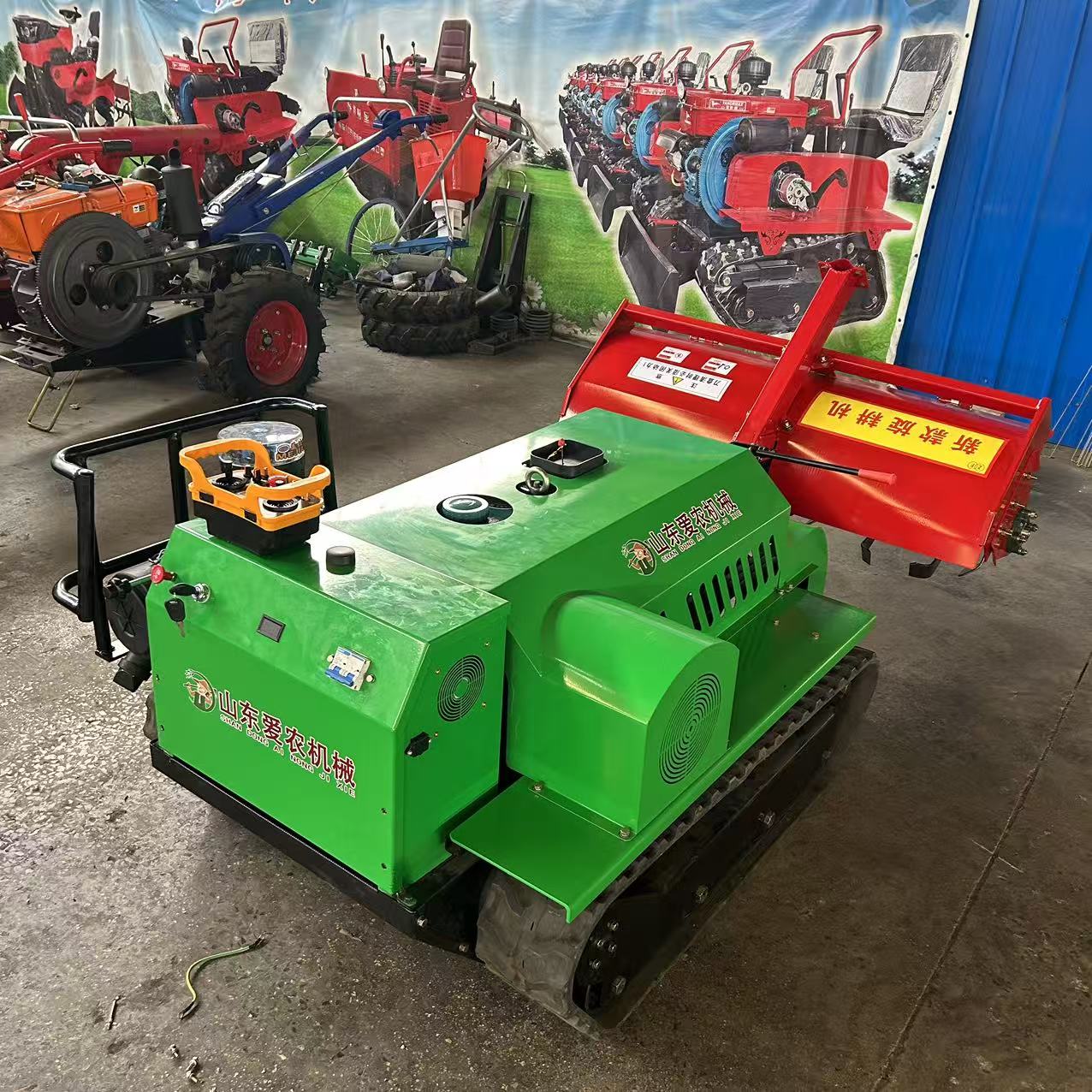

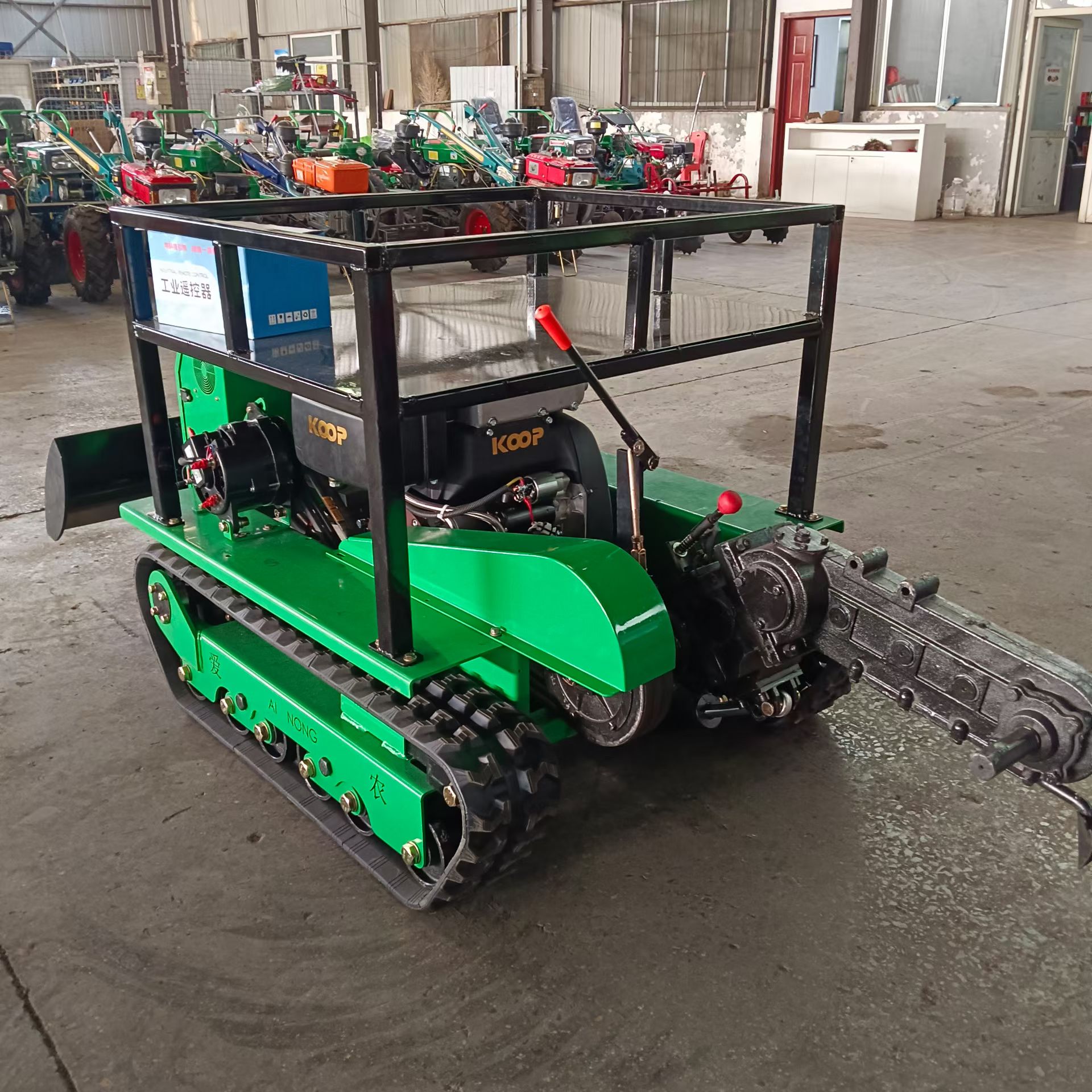

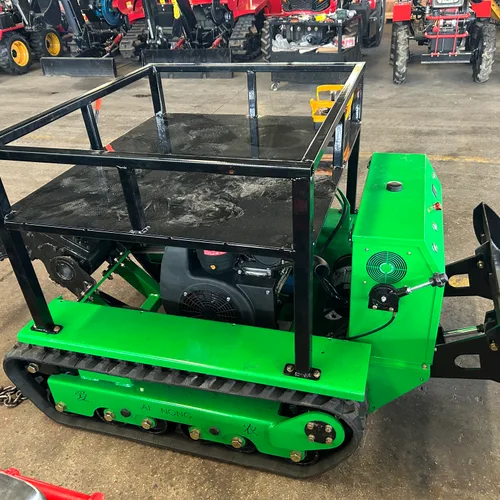

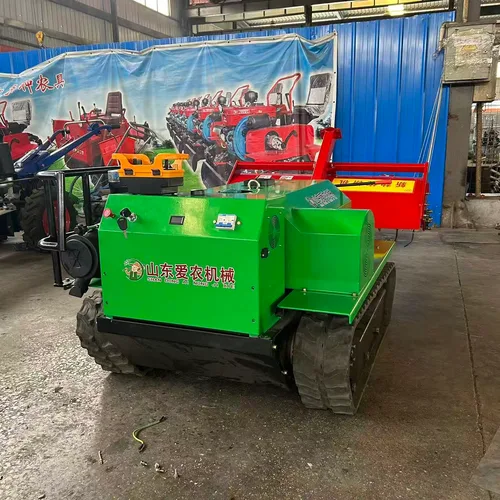

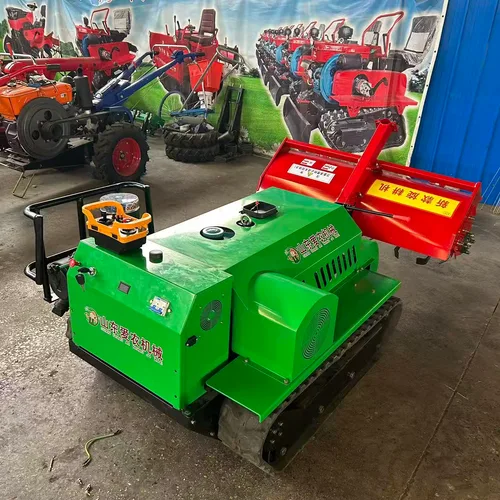

محراث دوار مجنزر هجين يعمل بالغاز والكهرباء

Product Introduction: Tracked Remote-Control Multi-Functional Orchard Management Machine
I. Suitable Land Types
Mountainous / Hilly Slopes: With strong traction, the machine can climb slopes of 25–30 degrees. It is suitable for mountainous orchards, terraced fields, and uncultivated hillsides, as well as sloped areas inaccessible to wheeled tractors. It does not easily get stuck or slip on muddy or wet soil after rain;
Various Orchard Types: Apple, citrus, grape, and cherry orchards; suitable for narrow tree row spacing (can pass through rows spaced 80 cm or wider), small plots with tight tree-to-tree spacing, small orchards inaccessible to large machinery, and densely planted gardens;
Greenhouses / Vegetable Plots: Vegetable greenhouses and arched tunnels; narrow ridges and small vegetable plots inside the structures; field operations within low-ceilinged greenhouses;
Scattered small plots, terraced fields, riverbanks, and landscaping areas: Irregularly shaped, uneven, or gravel-strewn plots; greening areas on riverbank slopes;

Parameter Items	value
Net Weight	670KG
Dimension (L×W×H)	2200mm×1060mm×900mm
Steering Mode	Remote Control
Starting Mode	Electric Start
Track Width	180mm
Engine Brand / Power	Changchai 25/35, Yanmar 25/35, Changfa 40
Remote Control Distance	200m
Working Efficiency	0-3 Mu/h
Fuel Consumption Per Mu	1L/Mu
Generator Voltage	56V
Traveling Motor	1000W Permanent Magnet Brushless Motor
Control System	Self-developed by Ainong
Remote Controller Configuration	Industrial-grade remote control with emergency stop switch
Battery Brand	Chaowei
Tiller Gearbox	With high and low speed adjustment
Standard Accessories	Tiller, ditching machine, weeding wheel, backfill wheel
Optional Accessories	1m straw returning machine (custom remote control version)
Warranty Instruction	1-year warranty for mechanical parts; 3-month warranty for electronic components

II. Suitable Farming Tasks (Achieve multi-purpose use with different attachments)
1. Standard / Common Attachment Operations
✅ Trenching: Digging deep trenches for fruit tree fertilization, creating ridges and drainage ditches in vegetable plots; trench depth 20–40 cm;

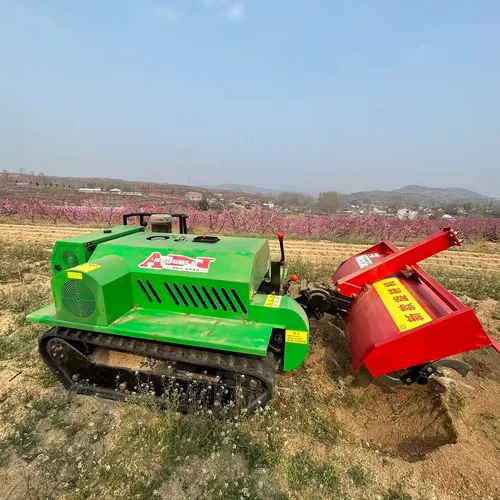

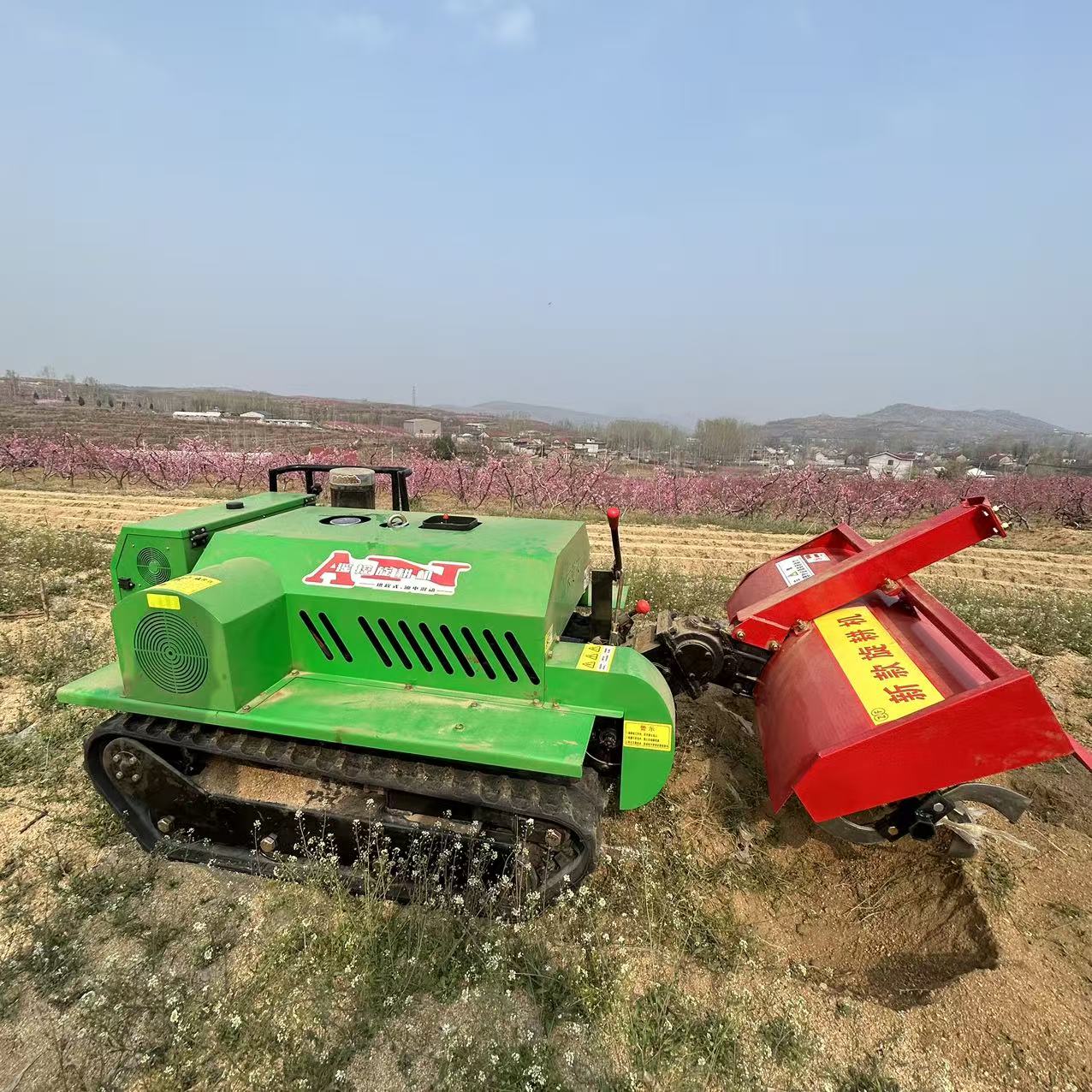

✅ Rotary tilling and soil loosening: Inter-row tilling, soil fragmentation, and land preparation; breaking up compacted soil and loosening soil between orchard rows;
✅ Integrated trenching + fertilizing + backfilling: The built-in hopper can hold organic or chemical fertilizers, completing trenching → fertilizer spreading → backfilling in a single pass—the preferred method for applying base fertilizer in orchards during the fall;
✅ Weeding and mulching: Switch to the weeding blade to shred weeds and crop residues between rows for incorporation into the soil, replacing manual weeding.
2. Optional attachments for expanded functionality
Backfilling and ridging: Covering grapevines with soil for winter protection and mounding soil around fruit tree roots;
Ridging: Creating raised ridges for growing melons, fruits, and vegetables;
Remote-controlled spraying: Install a spray tank for orchard-wide insect control and foliar fertilization;

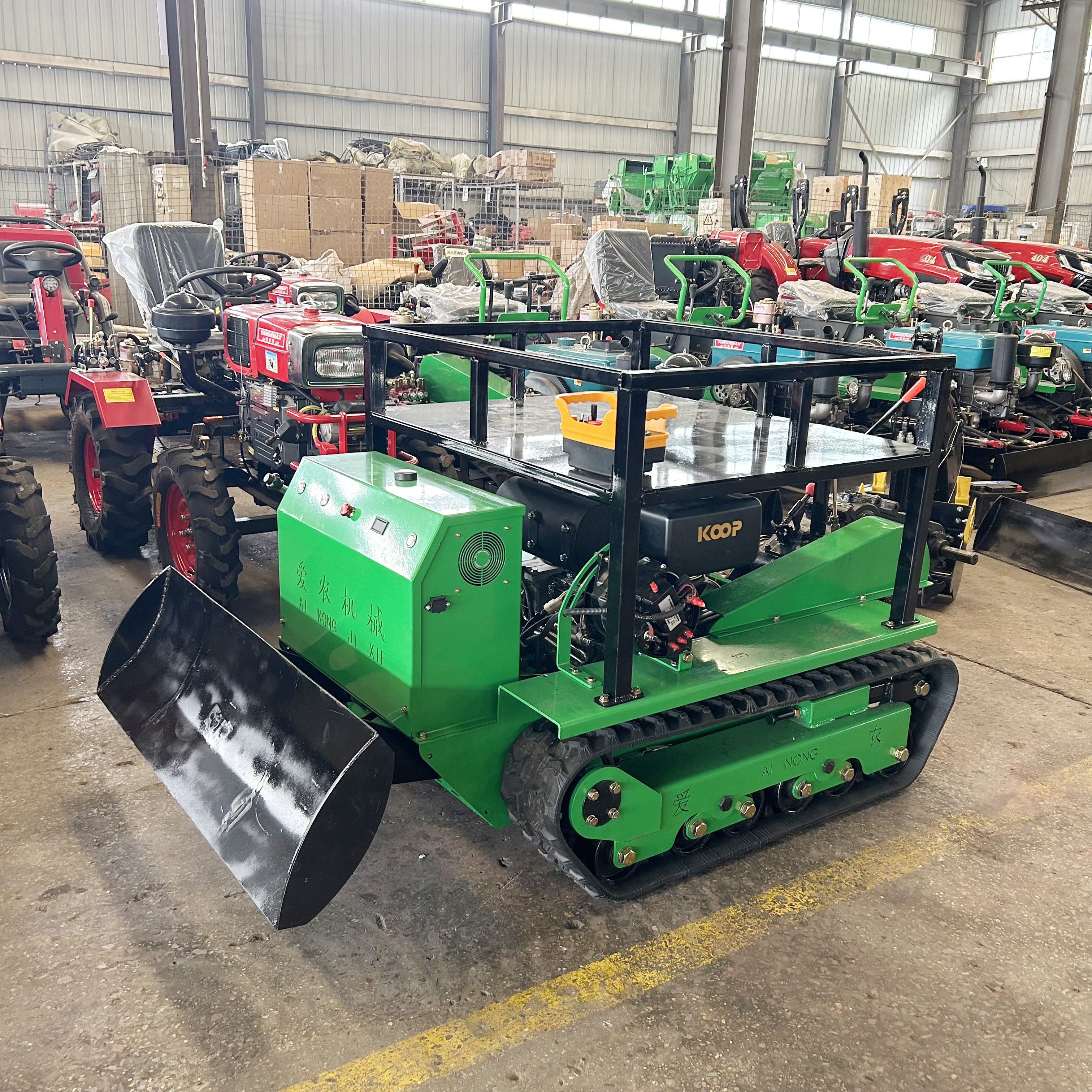

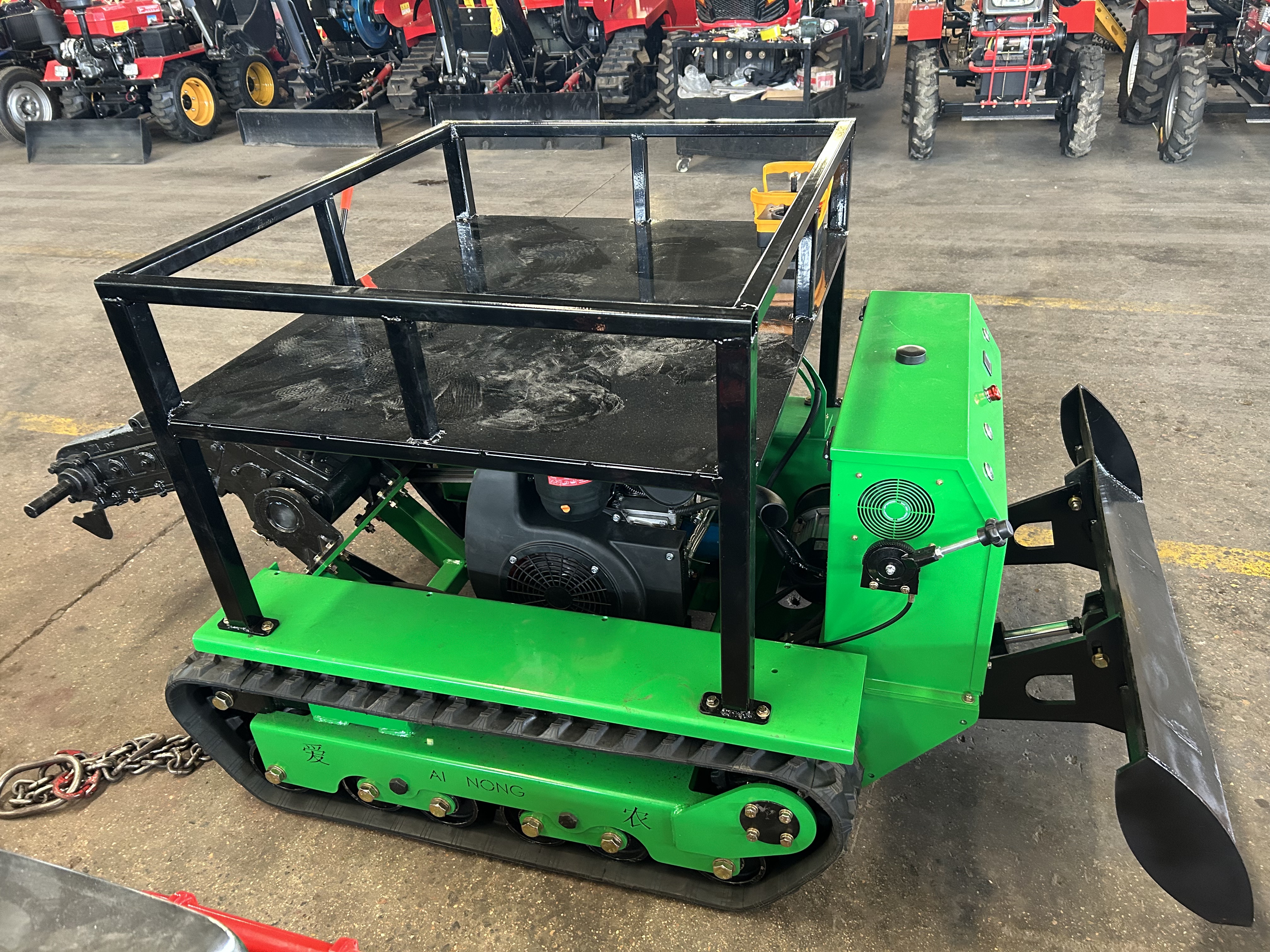

Dozer blade: Leveling ground, preparing orchard plots, and clearing snow in winter;
Branch shredding and incorporation: Branch shredder for on-site shredding and incorporation of pruned branches;
Trailer towing: Short-distance transport of fertilizer, fruits, and other materials.

III. Machine Advantages
The entire machine is operated via wireless remote control, allowing the operator to stand on the field ridge and control it remotely—no need to wade through mud or risk collisions with machinery. The tracks provide a large ground contact area, resulting in significantly less soil compaction compared to wheeled machinery, thus protecting fruit tree root systems. In small to medium-sized orchards, it can replace the labor of over a dozen workers.
