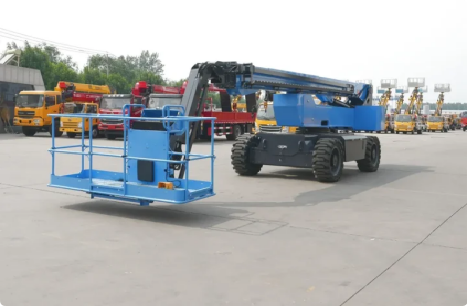

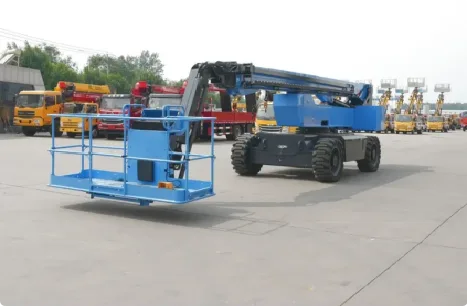

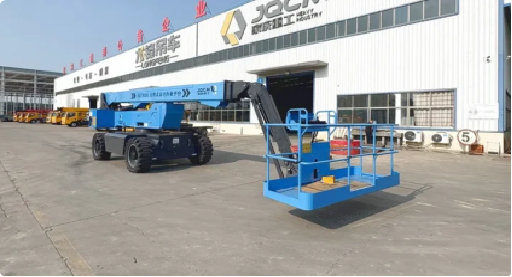

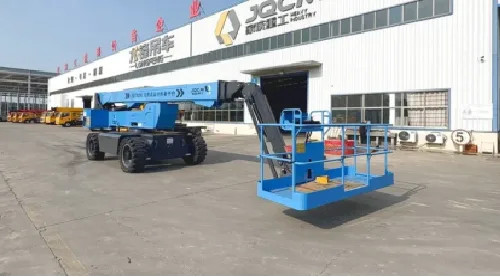

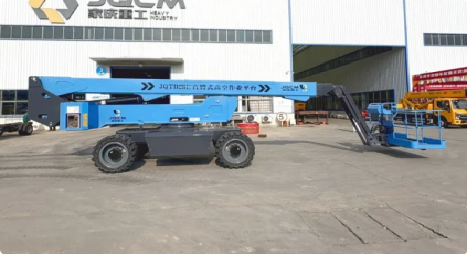

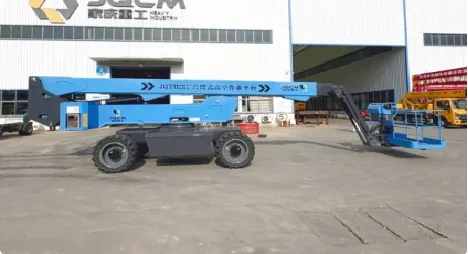

Factory JQCM 28m Self-propelled Telescopic Boom Lift, Full Pre-shipment Function Test Before Shipment

Factory JQCM 28m Self-propelled Telescopic Boom Lift, Full Pre-shipment Function Test Before Shipment

USD $0.15 - $148148.00 / قطع

الحد الأدنى للطلب: 1 قطع

Stowed Overall Length:
11540mm
Overall Width:
2285mm
Overall Height:
2785mm
Wheelbase:
3000mm
السعر المرجعي:
USD $0.15 - $148148.00
الحد الأدنى لكمية الطلب:
1 قطع
إرسال استفسار

ميزات المنتج وتطبيقاته

JQCM 28m battery-powered self-propelled telescopic boom aerial work platform, 4×2 rough terrain drive, max working height 28m, max working radius 20m. Unrestricted load capacity 300kg, basket 180° rotatable, turntable full 360° continuous slewing. 83.2V large capacity lithium battery for silent zero-emission operation, powerful gradeability. Suitable for large factory, stadium, outdoor construction and municipal venue maintenance. Single unit or full container bulk export available with one-stop customs, inspection & certificate of origin service.

  • 4×2 rough terrain self-propelled chassis, independent movement on uneven construction ground
    4×2 two-wheel drive off-road chassis with deep tread rugged tires, no separate transport trailer required, fully self-movable. Travel speed 0.6km/h under stowed condition, limited to 0.4km/h during lifting operation. Max uphill grade 45% and downhill 30%, stable climbing performance on muddy and gravel factory sites.
  • 28m straight telescopic boom wide working coverage, 20m horizontal outreach for large-area works
    Straight synchronous telescopic boom delivers max working height 28m and horizontal radius up to 20m. Boom luffing range from -3° to +75° enables flexible adjustment of high and low working positions, ideal for high-rise equipment installation and wall maintenance in large steel factories, exhibition venues and logistics warehouses.
  • Dual load mode & dual slewing design, flexible operation for personnel & tool carrying
    Unrestricted basket load 300kg, up to 460kg in restricted zone, capable of holding 2 operators plus full set of maintenance tools. Full 360° unlimited continuous turntable slewing, plus 180° left-right basket rotation for precise positioning in narrow gaps between columns and equipment.
  • Large capacity lithium battery all-electric power, zero emission & low noise for enclosed indoor works
    Equipped with 83.2V 480Ah large lithium battery pack, main AC motor matched with 1.9kW DC auxiliary hydraulic unit, fully electric drive with zero exhaust emission. Ultra-low running noise allows unrestricted operation inside enclosed factories, underground venues and exhibition centers without diesel emission restrictions.
  • Multi-layer safety protection against misoperation, complying with international aerial safety standards
    Built-in automatic speed limit during lifting, tilt grade interlock system that locks lifting movement if slope exceeds safe threshold. Additional protection includes boom luffing limit, slewing buffer stop and basket overload alarm, eliminating risks of machine drop caused by site misoperation.
  • One-stop full export supporting service
    ①Original technical data booklet, lithium & hydraulic system factory inspection report, dual-language operation & maintenance manual delivered with each unit;
    ②Whole vehicle cleaning & anti-rust protection, reinforced wooden frame package for sea shipment;
    ③Full wearable spare parts including lithium modules, travel motors, hydraulic oil seals and control joysticks can be consolidated in container for supplementary export;
    ④One-stop service for aerial equipment customs declaration, certificate of origin and equipment inspection official documents.
