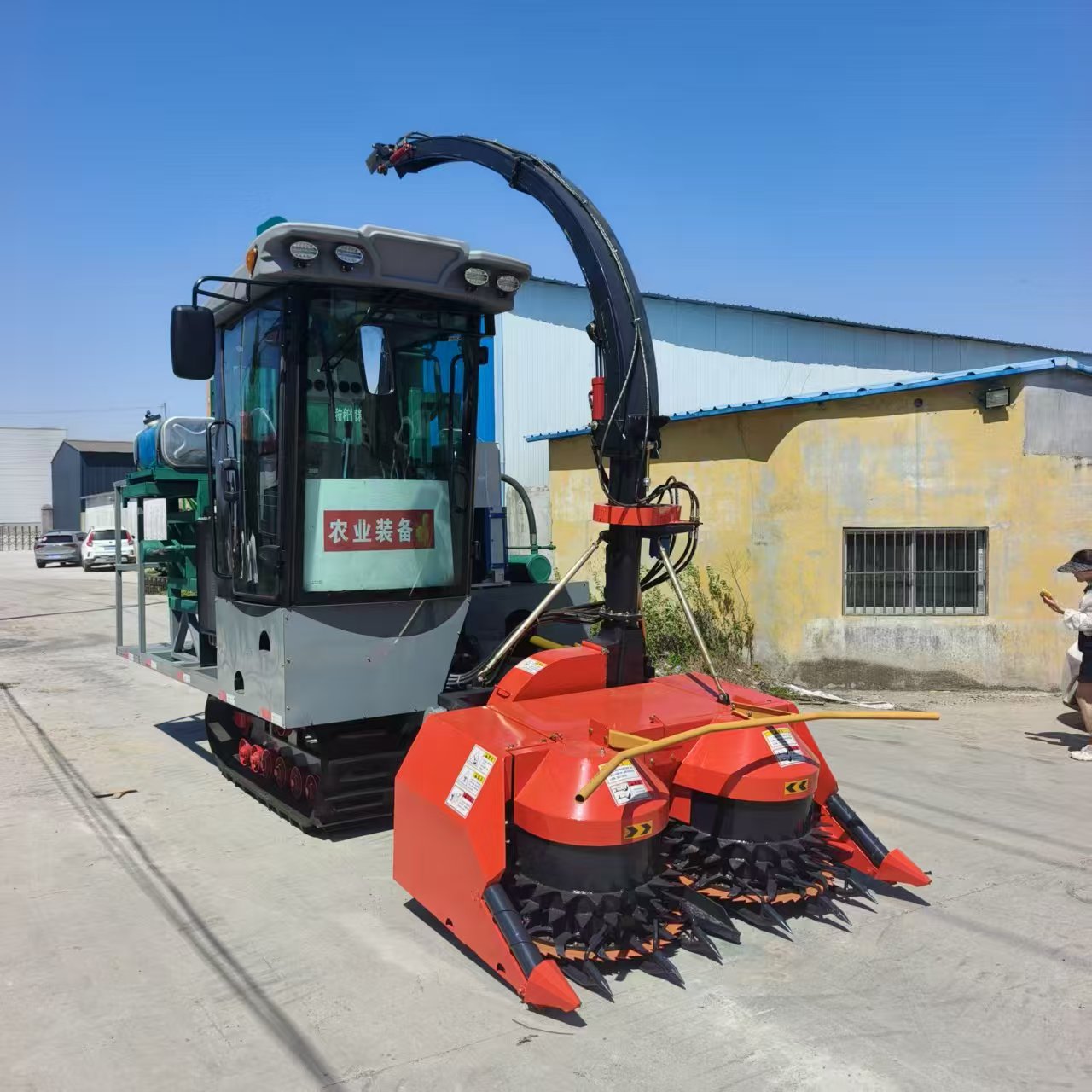

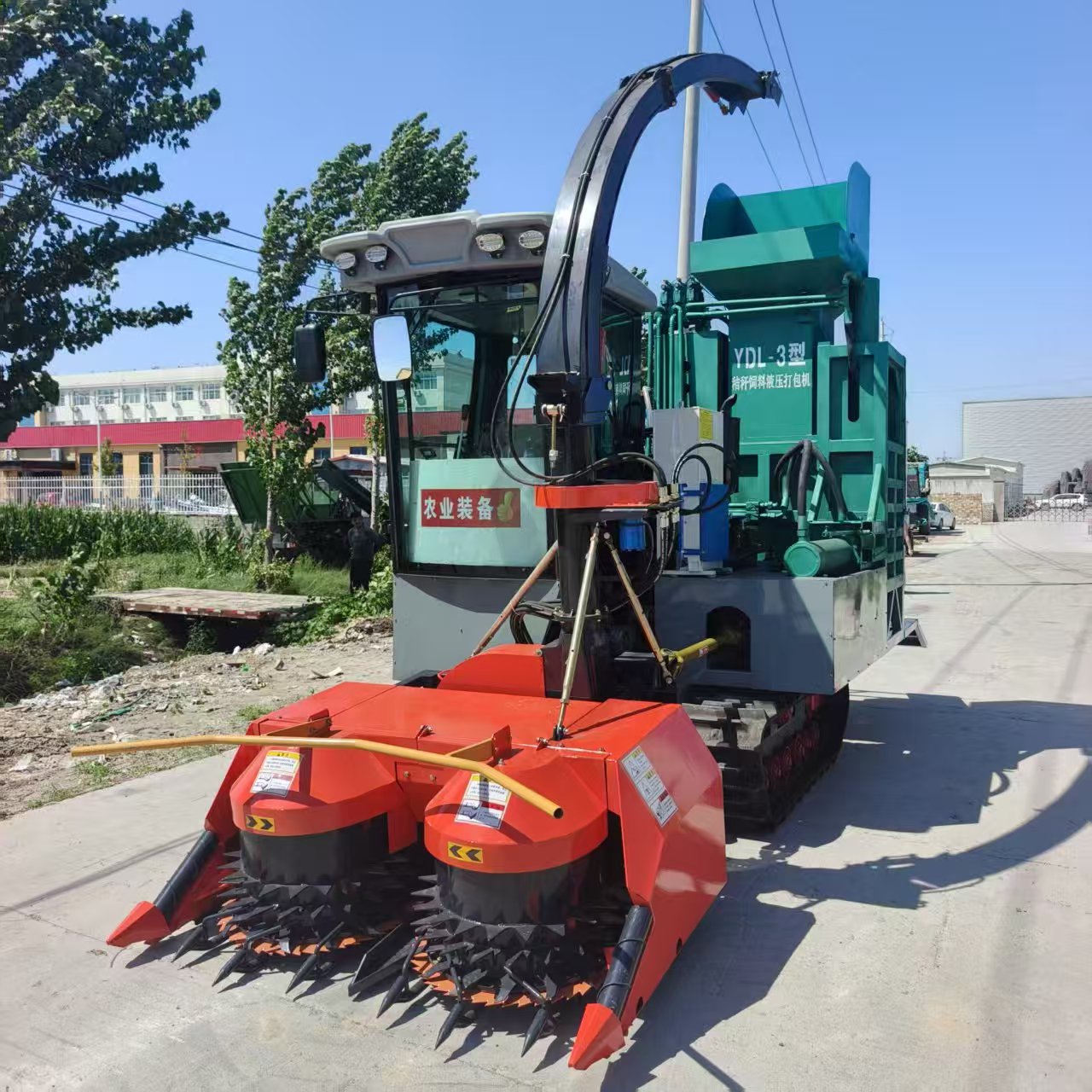

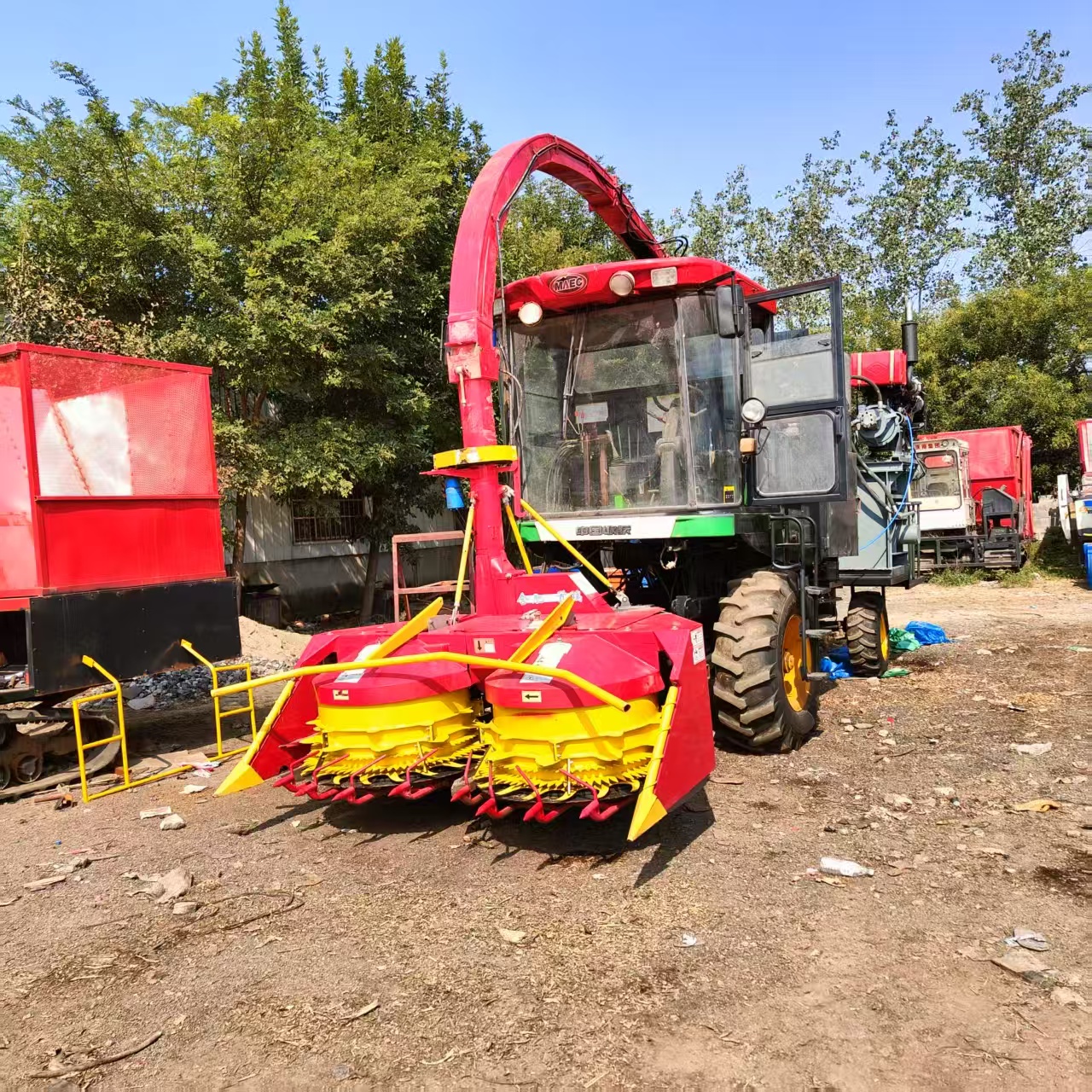

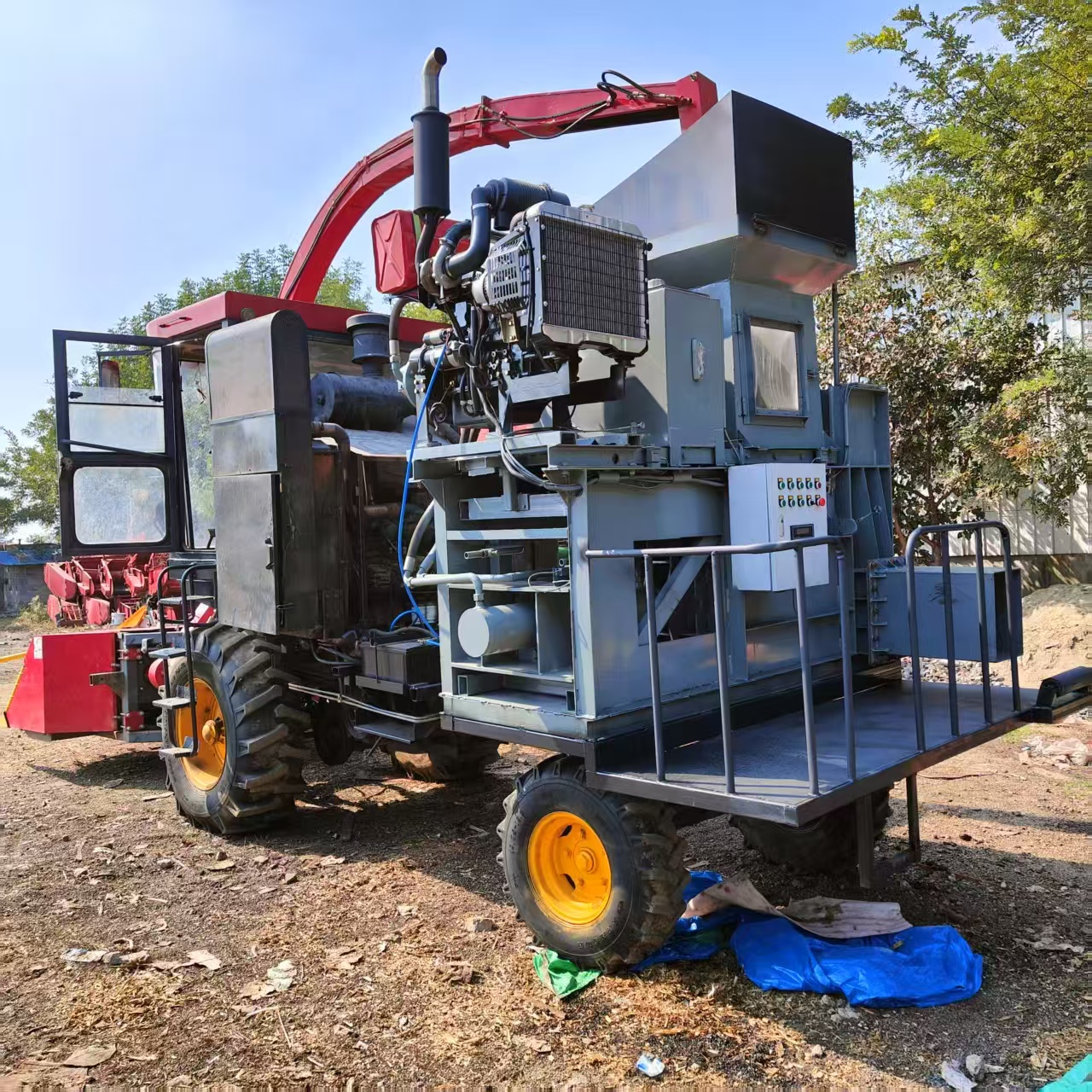

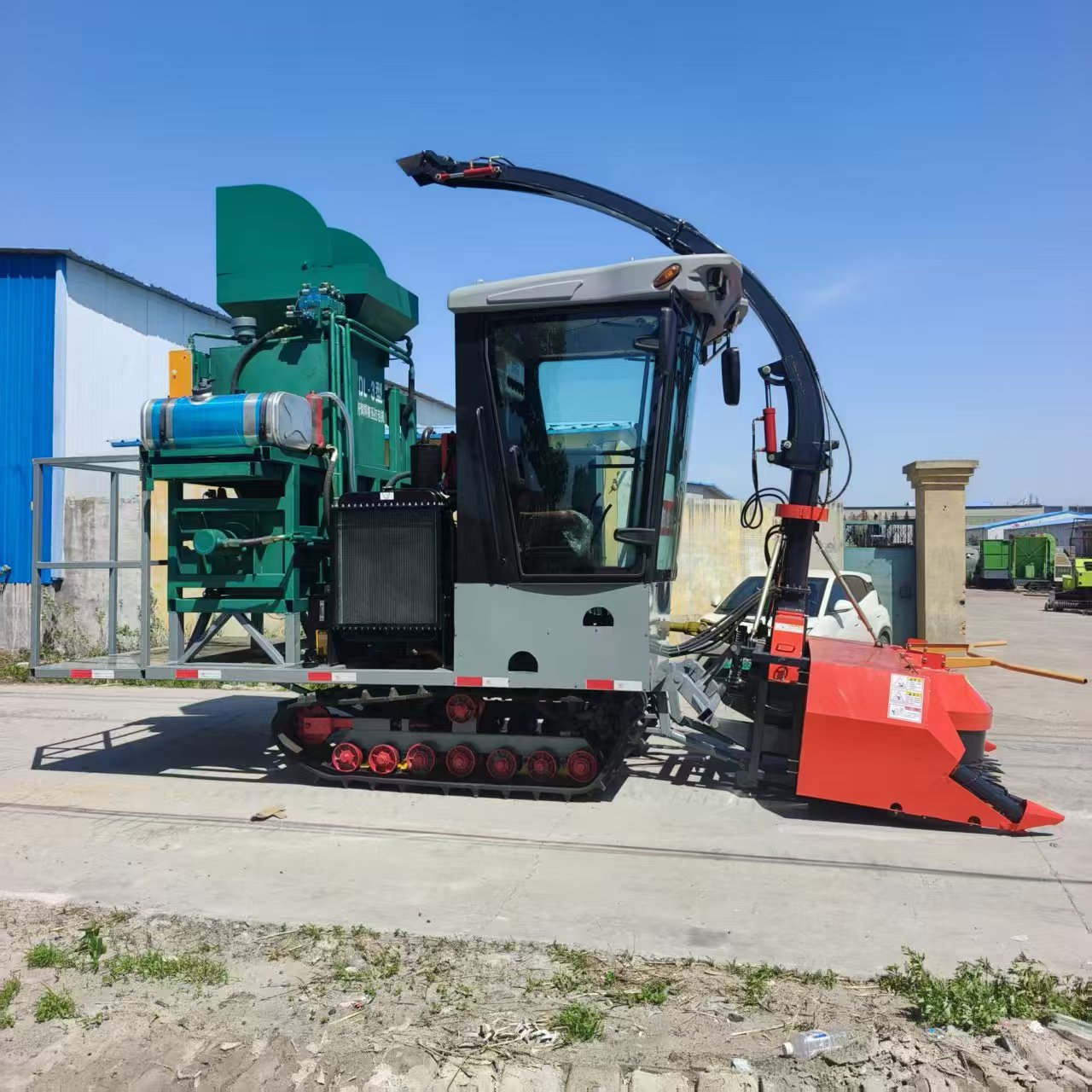

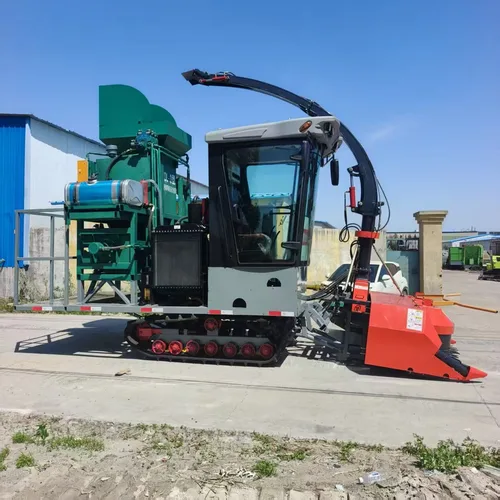

Crawler Self-propelled Straw Harvest Baling All-in-one Machine Independent Power No Tractor Farm Export

Crawler Self-propelled Straw Harvest Baling All-in-one Machine Independent Power No Tractor Farm Export

USD $11111.00 - $14518.00 / قطع

الحد الأدنى للطلب: 1 قطع

Walking Type:
Crawler autonomous walking chassis with independent power system
Tying Mode:
Optional automatic net wrapping / automatic rope tying
Suitable Materials:
Corn Stalk / Forage Grass / All Types Of Silage
Working Procedure:
Harvest/Pick → Crush & Knead → Screw Convey → High Pressure Compress → Auto Tie → Bale Ejection
السعر المرجعي:
USD $11111.00 - $14518.00
الحد الأدنى لكمية الطلب:
1 قطع
إرسال استفسار

ميزات المنتج وتطبيقاته

Crawler self-propelled harvesting & baling all-in-one machine is equipped with independent power system and crawler walking chassis, which can complete field operations without tractor traction. The machine integrates harvesting & picking, crushing & kneading, screw conveying, high-pressure hydraulic compression, automatic net/rope tying and automatic finished bale ejection. It adapts to mountains, hills, small plots and large farmlands to realize on-site straw recycling and baling without multiple transfer procedures. It is the preferred equipment for straw resource utilization of large growers, agricultural cooperatives and straw recycling enterprises. Single unit or bulk export available with one-stop full export license & customs document service.

  • Independent crawler self-propelled chassis, free from tractor traction restriction
    The machine is equipped with complete built-in independent power system and crawler walking chassis, which can work in fields without tractor matching. The crawler has large ground contact area to avoid slipping and sinking on mountains, hills and muddy small terraced plots, completely solving the pain points of traditional trailed straw machines relying on tractors and failing to operate on complex terrain.
  • Integrated six-process fully automatic continuous operation without manual transfer
    The front header synchronously completes straw harvesting or picking. Materials enter the crushing & kneading unit for fine processing, then evenly fed into high-pressure compression chamber via screw conveyor. The hydraulic system compresses straw into shape, automatically finishes net wrapping or rope tying, and finally the ejection device drops bales automatically. The whole process runs continuously without manual intermediate intervention, only one operator is required for the whole machine control.
  • On-site recycling & baling greatly cuts labor and yard cost
    All procedures of straw harvesting, crushing, compression and baling are completed at one time in the field, eliminating separate steps of pre-harvest stacking, short-distance transfer and secondary baling, as well as air-drying, loading, unloading and intermediate storage. It saves a lot of labor, transportation and yard cost. Fresh straw is baled directly for better silage fermentation quality.
  • Universal for all terrain, suitable for all kinds of farm plots
    The walking structure of the machine is optimized for complex farmland, it can work stably on flat large fields, steep mountain slopes, scattered small terraced plots and muddy hilly lands, highly adaptable to agricultural producing areas with various landforms at home and abroad.
  • Simple operation procedure and low maintenance threshold
    Standard workflow: Start up & adjust parameters → Autonomous traveling operation → Harvest, crush, compress & tie → Continuous work / Stop for inspection. Hydraulic and transmission parts of the whole machine are general agricultural machinery accessories, easy for overseas farmers to purchase and replace, daily inspection and maintenance are simple.
  • One-stop full export supporting service
    ①Original equipment introduction document, factory full machine inspection report and dual-language operation & maintenance manual are delivered with each machine;
    ②The whole machine is cleaned, derusted and protected, separate wooden frame reinforcement for header, crawler and compression baling unit to avoid collision damage during ocean shipping;
    ③Wear parts such as disc blades, crawler rubber blocks, tying rope/net, hydraulic oil seals and conveyor chains can be supplied in bulk for supplementary export;
    ④One-stop service for customs declaration, certificate of origin and commodity inspection official documents, full container shipment of complete machine is supported.
