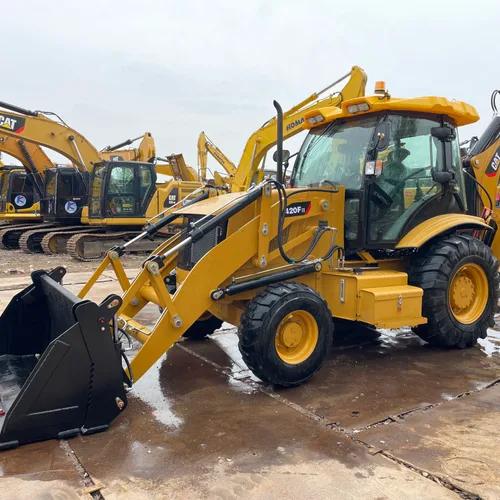

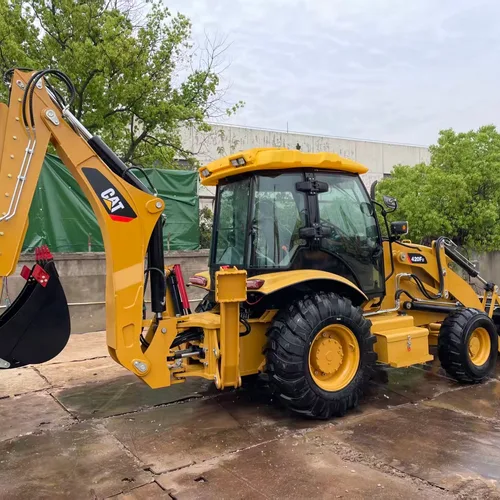

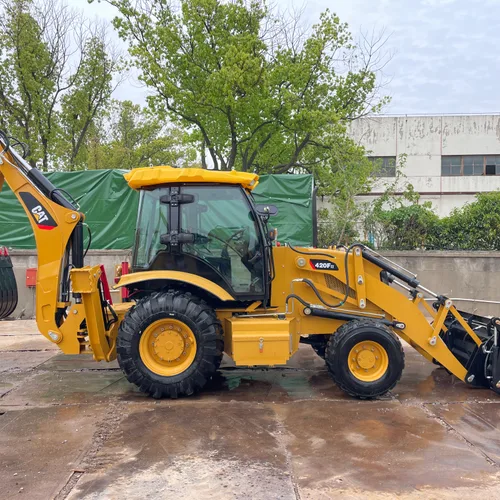

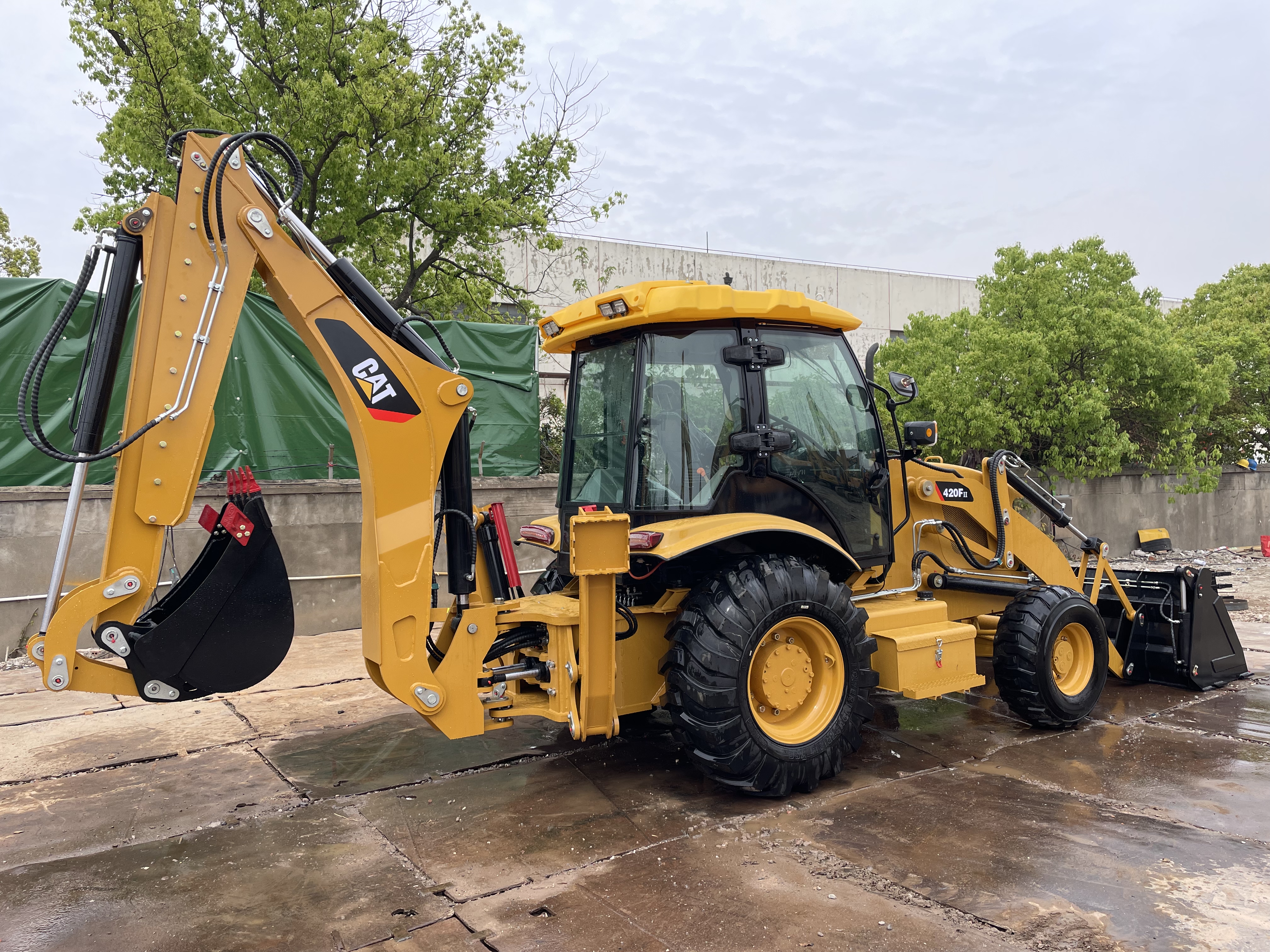

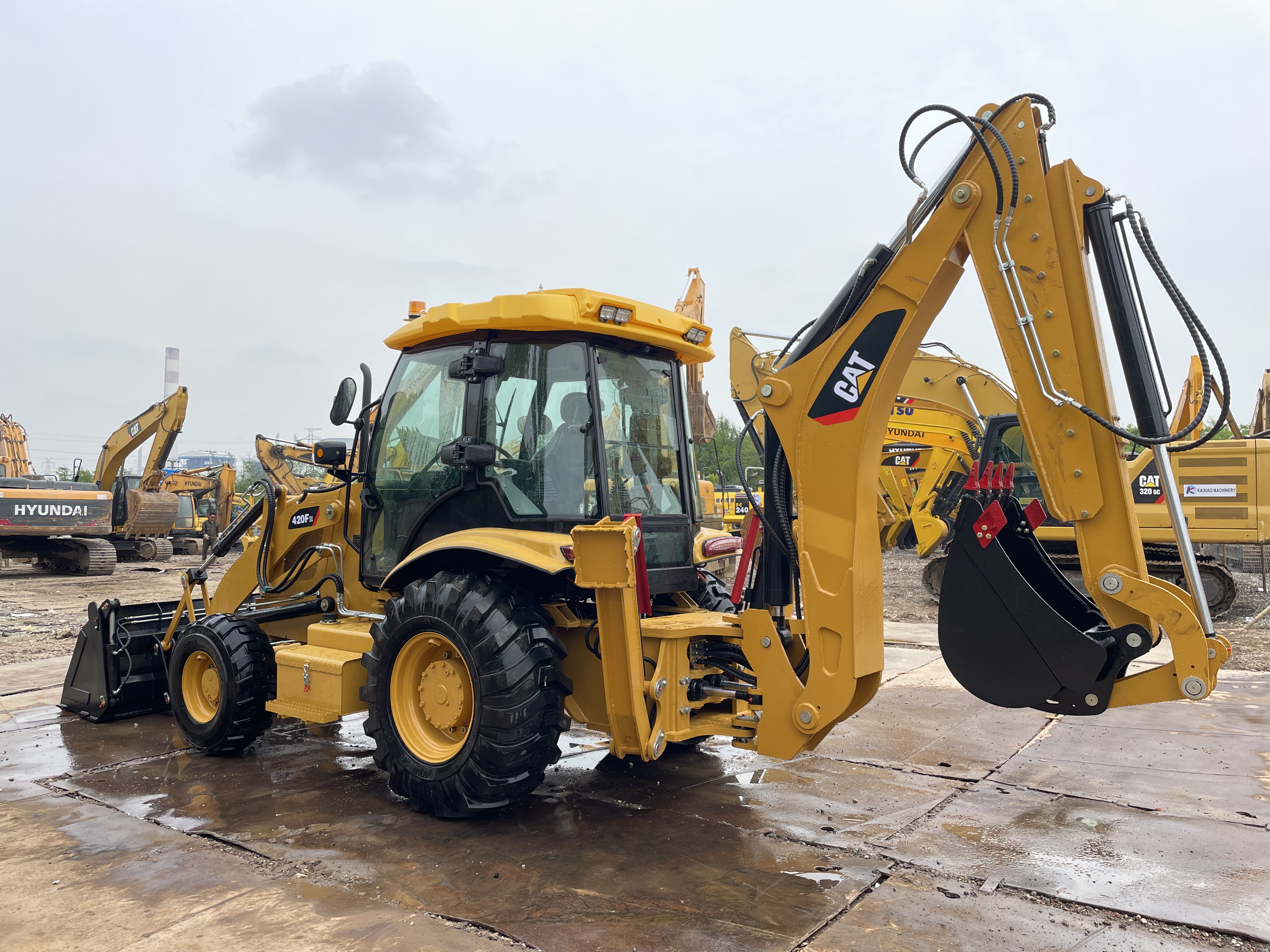

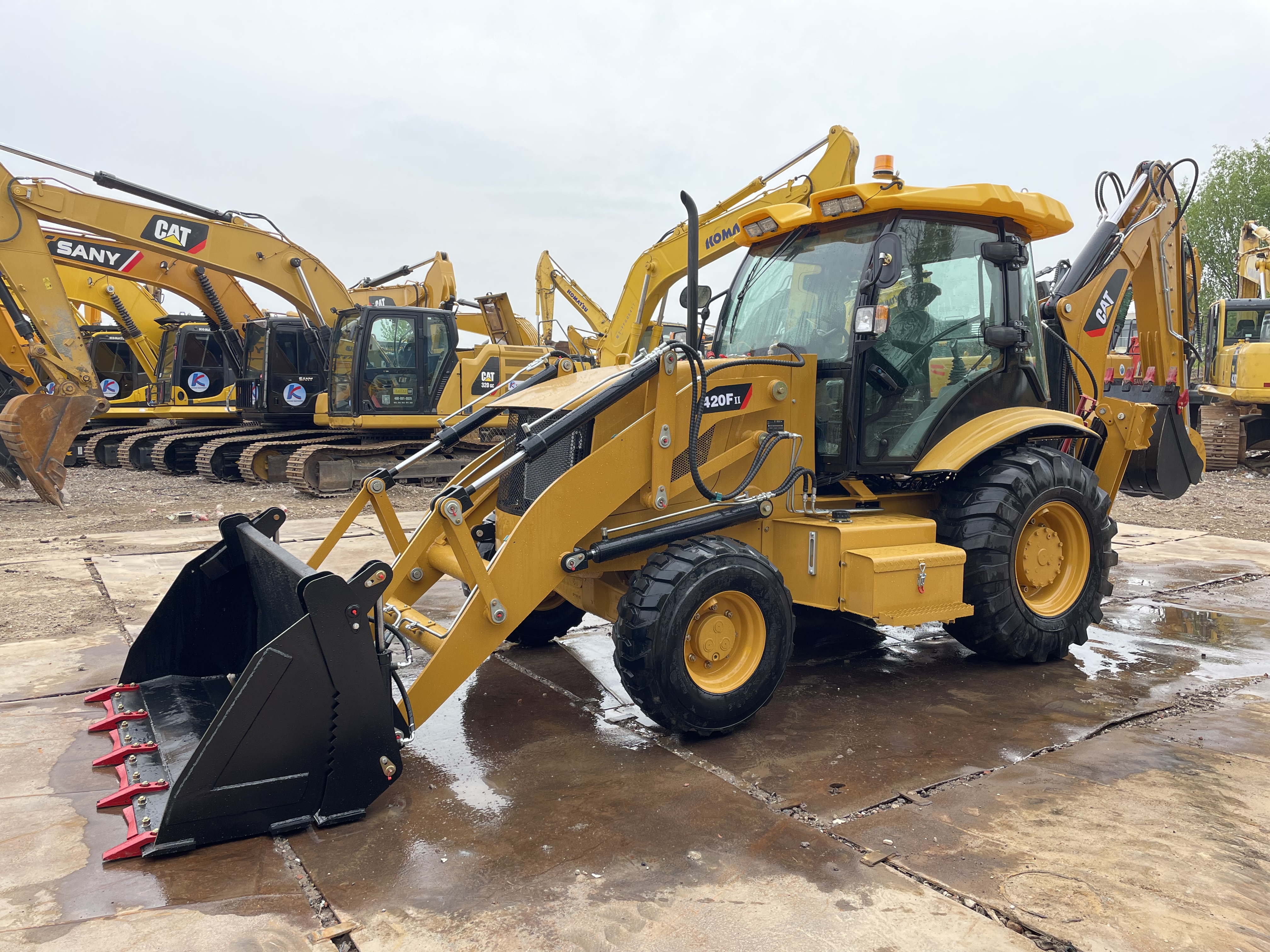

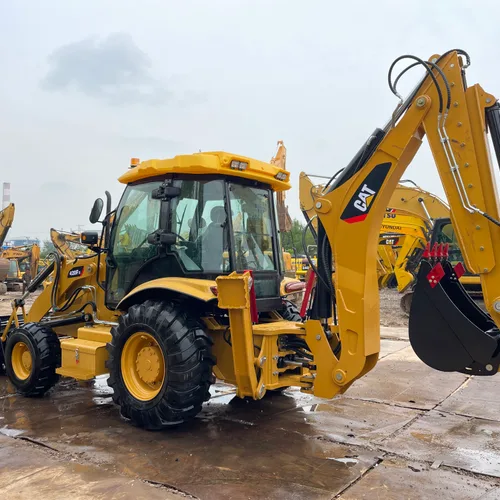

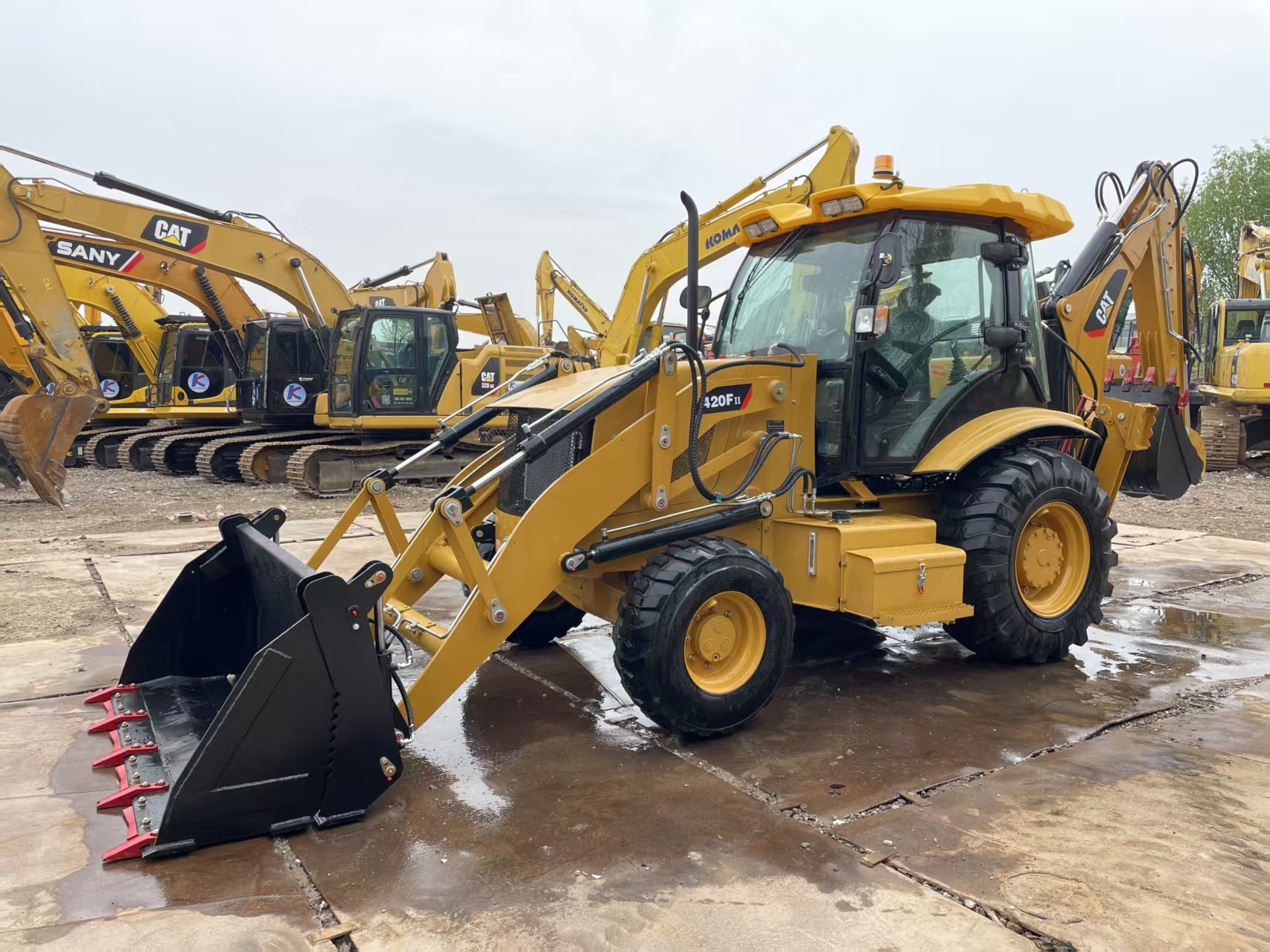

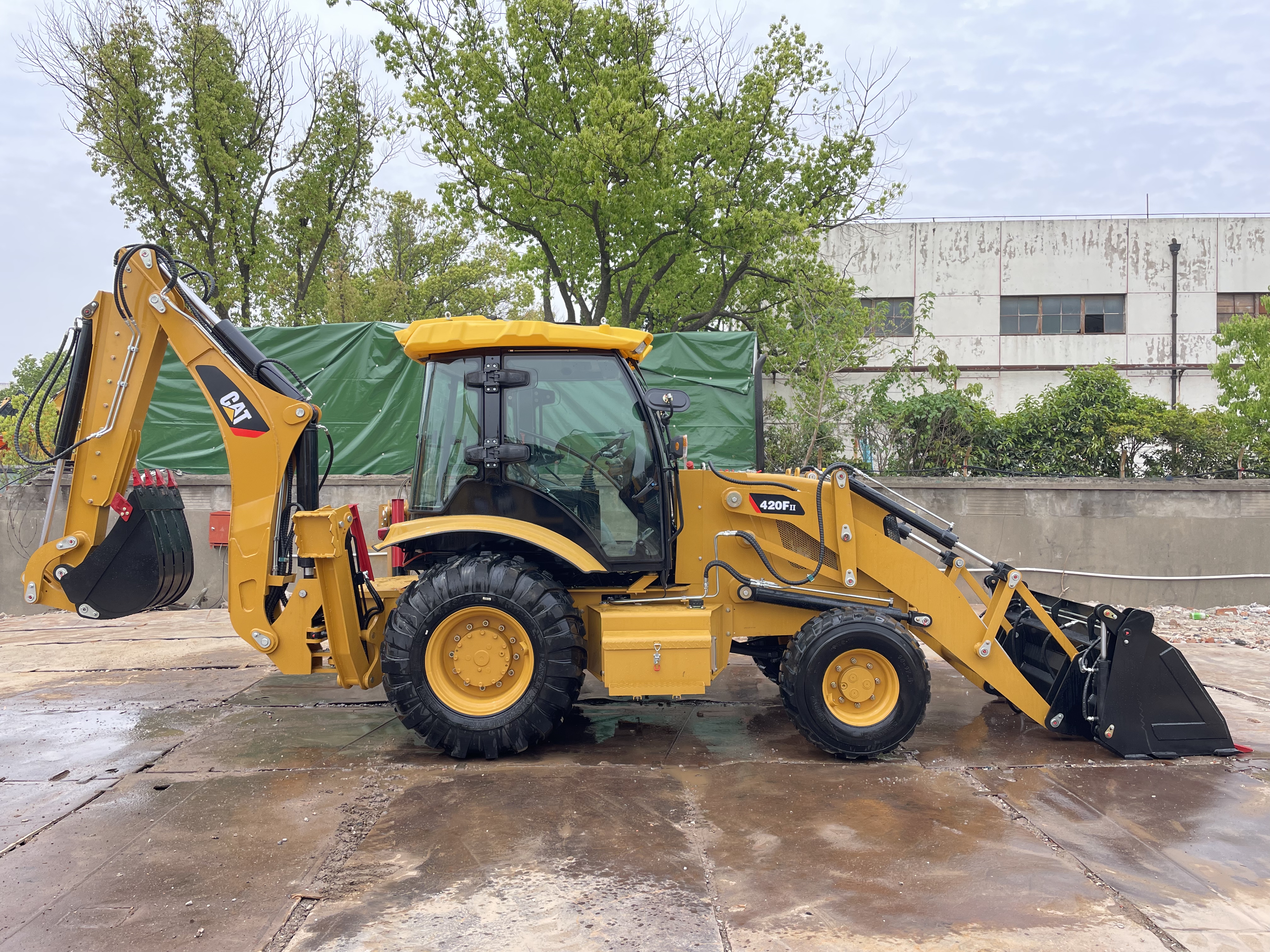

CAT 420F2 Backhoe Loader

CAT 420F2 Backhoe Loader

USD $8000.00 - $15000.00 / قطع

الحد الأدنى للطلب: 1 قطع

Overall Machine Parameters:
Operating Weight: 7,680 kg Overall Transport Length: 7,210 mm Overall Width: 2,350 mm Overall Height (Cab Top): 2,820 mm Wheelbase: 2,160 mm Min Turning Radius: 5,200 mm Standard Tire: Front 11.00-16; Rear 19.5L-24 Ground Clearance: 345 mm
Front Loader Working Performance:
Standard Loader Bucket Capacity: 1.0 m³ Max Lift Height: 3,420 mm Max Dump Clearance: 2,680 mm Max Dump Reach: 720 mm Loader Breakout Force: 49.2 kN Rated Lift Capacity (Full Height): 2,610 kg Loader Arm Lift Cycle Time: 3.8 s
Engine Power System:
Engine Model: CAT C4.4 ACERT 4-cylinder Turbocharged Diesel Rated Net Power: 70 kW (94 HP) @ 2200 rpm Peak Torque: 412 N·m @ 1400 rpm Emission Standard: Tier 3 / Euro IIIA Air Intake: Turbocharger + Intercooler Fuel Tank Volume: 136 L
السعر المرجعي:
USD $8000.00 - $15000.00
الحد الأدنى لكمية الطلب:
1 قطع
إرسال استفسار

ميزات المنتج وتطبيقاته

The CAT 420F2 backhoe loader is a classic dual-purpose construction machine integrating front loader and rear excavator functions, independently developed by Caterpillar. It perfectly combines loading, digging, trenching, lifting and backfilling operations in one compact body. With flexible steering, switchable 2WD/4WD and stable CAT power system, it is widely used in municipal maintenance, farmland renovation, pipeline laying, small road construction and landscaping projects. Its small turning radius enables free operation in narrow urban streets, residential areas and indoor construction sites, making it a multi-functional all-round workhorse for small and medium engineering teams.

The CAT 420F2 backhoe loader is equipped with Caterpillar self-developed C4.4 four-cylinder turbocharged intercooled diesel engine, which delivers 70kW (94HP) rated power at 2200rpm and peak torque of 412N·m at low 1400rpm. Abundant low-speed torque enables stable output under heavy-load digging and shoveling, avoiding frequent high-rev operation and cutting fuel consumption effectively.
Three customizable working modes adapt to diverse construction tasks:
  • ECO Mode: For light work like land leveling, yard cleaning and backfilling, reducing fuel consumption significantly;
  • Standard Mode: Balances power and economy for daily pipeline trenching, small road maintenance and landscaping;
  • Power Mode: Releases full hydraulic power to handle hard clay, compacted soil and small rock excavation.
This engine complies with Tier 3 / Euro IIIA emission standards, with optimized fuel injection and combustion structure to lower exhaust pollution. It has strong compatibility with different grades of diesel fuel in global markets, and stable long-hour continuous operation performance.
