60 Ton Double Cylinder Vertical Hydraulic Baler, 30KW Large Waste Paper Plastic Film Woven Bag High Density Compression Baling Machine, Large & Medium Recycling Vertical Compactor For Export

60 Ton Double Cylinder Vertical Hydraulic Baler, 30KW Large Waste Paper Plastic Film Woven Bag High Density Compression Baling Machine, Large & Medium Recycling Vertical Compactor For Export

USD $1479.00 / قطع

الحد الأدنى للطلب: 1 قطع

Model:
60 Ton Double Cylinder Vertical Hydraulic Baler
Main Motor Power:
30 KW
Total Hydraulic Pressure:
60 Ton
Single Cylinder Bore:
160 mm
السعر المرجعي:
USD $1479.00
الحد الأدنى لكمية الطلب:
1 قطع
إرسال استفسار

ميزات المنتج وتطبيقاته

60 ton double cylinder vertical hydraulic baler equipped with 30KW high-power motor, double cylinders output total 60 tons compression force, 160mm thickened cylinder bore and 1000mm piston stroke. Standard bale dimension 1200800900mm, single bale weight 130-160kg. The whole frame is reinforced with thick steel plates, synchronous double cylinder pressing achieves ultra-high bale density. Suitable for mass processing of waste cartons, plastic film, PET bottles, woven bags and non-woven fabrics. Dedicated for large & medium waste sorting centers, paper mills and plastic recycling enterprises. Customizable motor voltage & operation language for global overseas markets.

1. Overall Machine Introduction

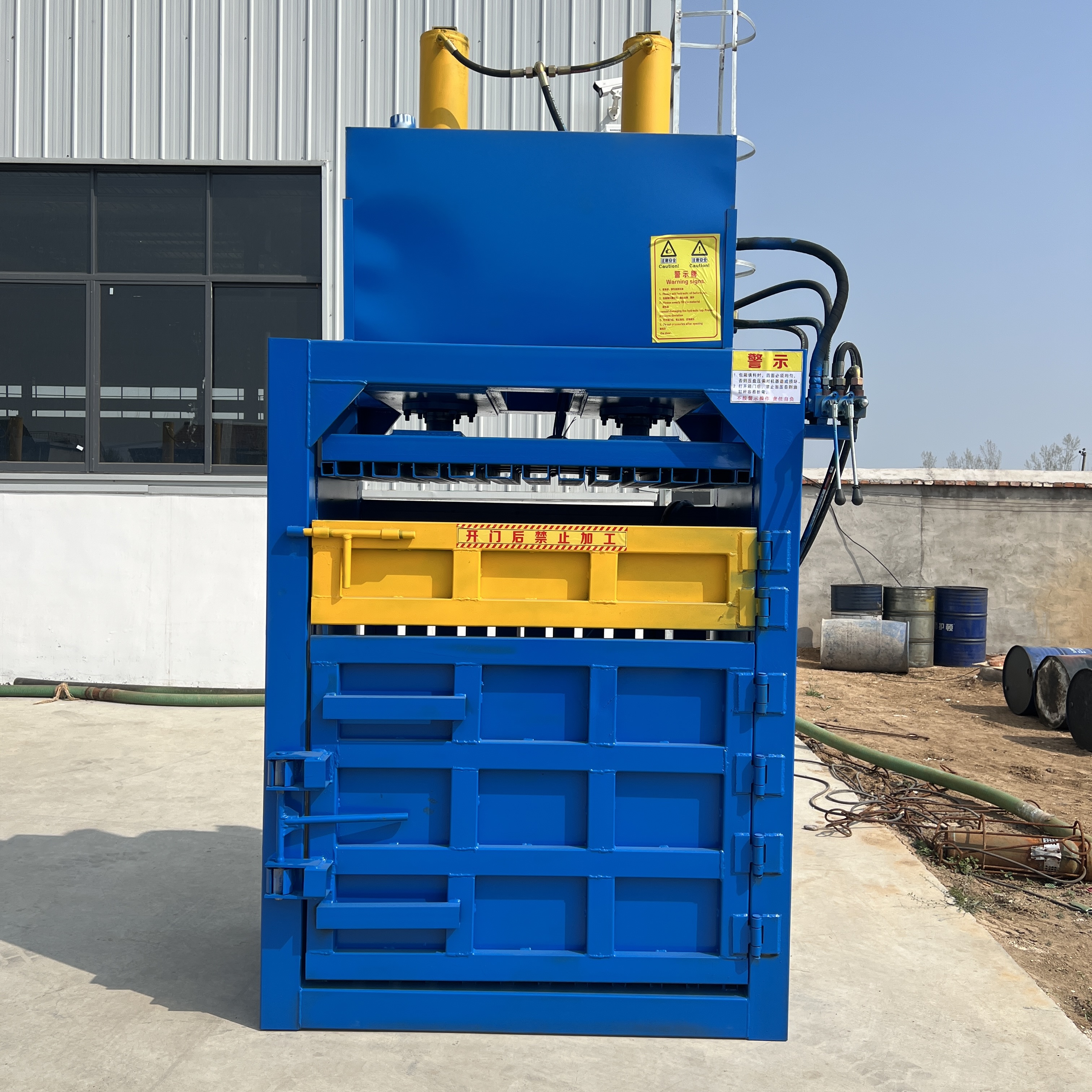

60 ton double cylinder vertical hydraulic baler is heavy-duty compression equipment dedicated to large & medium renewable resource recycling. The whole frame is integrally reinforced with full thick wear-resistant steel plates, two 160mm large-diameter hydraulic cylinders press synchronously to output stable total 60 tons high compression force, 1000mm long stroke allows large feeding volume per cycle. Three-side open heavy-duty hopper lined with integral wear-resistant steel plate, finished heavy bales can be pushed out via front or side doors after compression, single worker with forklift can finish full line operation. Equipped with 30KW standard high-power copper motor and large-flow silent hydraulic power unit, no overheating or power attenuation under 24-hour continuous full-load operation, bale density far exceeds 10-ton & 30-ton single-cylinder models. Standard finished bale dimension 1200800900mm, max single bale weight up to 160kg, greatly improve container loading rate and cut cross-border sea freight cost. Widely matched with large waste paper sorting bases, plastic pelletizing plants and paper mill raw material preprocessing workshops. PLC control system supports English interface switch, motor customizable to 220V/380V/415V for export to Southeast Asia, Central Asia and Africa.

2. Six Core Product Advantages

  1. Synchronous Double Cylinder 60 Ton Ultra High Pressure Leading Bale Density
    Dual 160mm thick cylinders apply synchronous pressure with total 60 tons force, fully compact fluffy plastic & thick industrial cartons, container loading capacity increased by 35% vs 30-ton balers to reduce container quantity.
  2. 30KW High-power Pure Copper Motor Stable For 24-hour Mass Production
    Large-displacement copper winding motor matched with high-flow double-cylinder oil pump, no power fatigue under long full-load compression, daily throughput over 3 times of small vertical balers, perfect for large-scale production lines.
  3. Three-side Reinforced Wear-resistant Hopper Smooth Discharge For Heavy Bales
    Thickened reinforced hopper with integral wear lining plate, anti-scratch from sharp waste and no deformation after long extrusion; multi-directional discharge via front & dual side doors, no multi-person dragging required for 160kg heavy bales, high-efficiency continuous operation with forklift.
  4. Thickened Load-bearing Frame No Cracking Under Long Heavy Load
    All vertical columns & cross beams integrally welded with extra thick steel plates, uniform stress under double-cylinder high pressure, no deformation or cracking after 3-5 years of 24-hour factory operation for longer service life.
  5. Large Hopper & Heavy Bales Higher Single-cycle Throughput
    1200800900mm large-capacity hopper allows more feeding per cycle, max finished bale weight 160kg to reduce strapping & transfer frequency and cut labor cost by 40%.
  6. Full Custom Export Solution Global Compatibility
    Touch screen switches Chinese & English with one click, motor refittable to 220V/380V/415V 50/60Hz, full English manual & nameplate, optional full production line with conveyor & shredder for overseas renewable resource plants.

3. Application Scenarios

  1. Large & Medium Waste Paper Sorting Base: Mass high-pressure compression of industrial cartons, book paper & corrugated paper;
  2. Plastic Reprocessing Pelletizing Factory: Uniform baling of agricultural film, mineral water bottles & industrial plastic film;
  3. Paper Mill Raw Material Preprocessing Workshop: Waste paper volume reduction for storage & full-container sea export;
  4. Large Chain Supermarket & E-commerce Warehouse: Centralized treatment of packaging plastic & express cartons;
  5. Overseas Large-scale Renewable Resource Enterprises: Full-line matched baling equipment for high-density waste compression before container export.

4. Custom Export Supporting Service

  1. Voltage Customization: 220V/380V/415V 50/60Hz hydraulic motor & electric control system refitted on demand;
  2. Hopper Dimension Customization: Extended/widened hopper, adjustable finished bale length/width/height;
  3. Language Support: Full English PLC touch screen, machine nameplate & operation manual;
  4. Full Line Matching: Optional belt conveyor & plastic shredder to form automatic recycling baling production line;
  5. Logo Customization: Customer brand LOGO printable on machine body, custom paint color available.

5. Full One-stop Export Support

  1. Complete Customs Clearance Documents: One-stop commercial invoice, packing list, customs declaration, certificate of origin & English operation manual;
  2. Sea Freight Packing: Machine split into sections, packed with reinforced solid wooden cases, separate moisture & rust proof sealed package for oil pump & electric cabinet, fit standard container long-distance shipment;
  3. Long-term Online After-sales: 24-hour engineer remote video guidance for installation, PLC debugging, hydraulic oil change & seal maintenance; original cylinder, oil pump & wear lining spare parts in permanent spot stock;
  4. Pre-delivery Inspection: Every machine passes 8-hour full-load double-cylinder synchronous cycle test to verify total pressure, ejection speed & electric control stability with official factory quality inspection report attached.

6. Bulk Purchase Cooperation Terms

  1. Sufficient spot stock, fast production schedule for single unit & multi-unit full line bulk orders, tiered low price for large quantity;
  2. Long-term cooperative renewable resource enterprises & overseas traders enjoy permanent discount on hydraulic wear parts plus priority production scheduling;
  3. Warranty covers dual hydraulic cylinders, oil pump & electric control system, online remote troubleshooting & spare parts direct shipment to overseas port;
  4. Complete foreign trade settlement documents available to match overseas client payment procedures.
