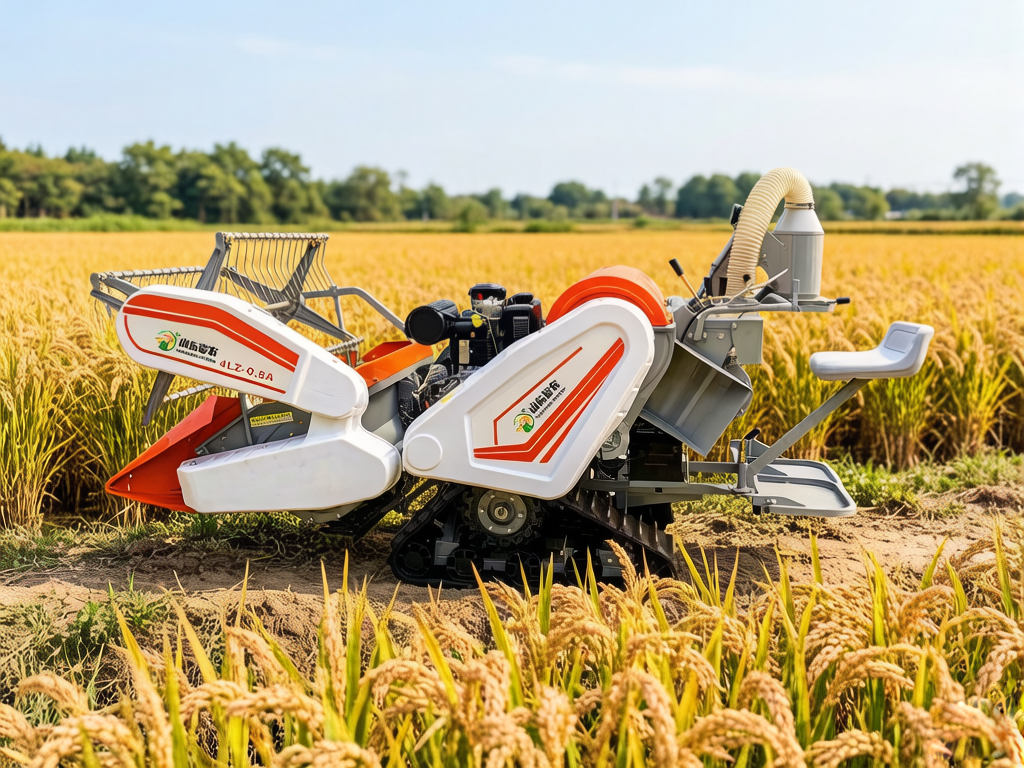

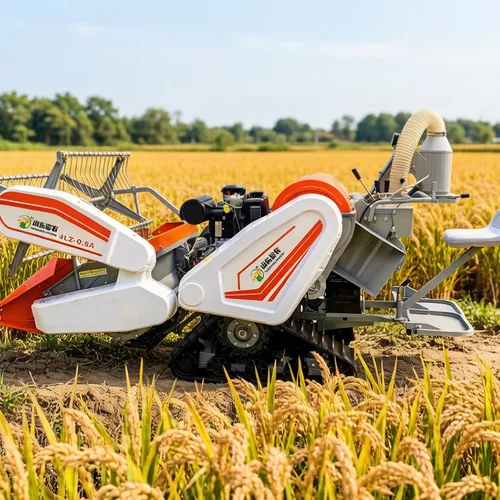

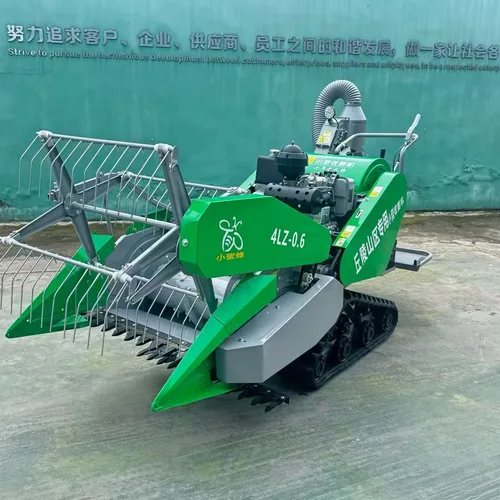

مقدمة عن منتج الحصادة المجنزرة الصغيرة ذاتية الدفع كاملة التغذية 4LZ-0.6B/4LZ-1.05D

Parameter Items	English Value
mode	4LZ-0.6C
Structure Type	Self-walking Crawler Type
Overall Dimension - Length*Width*Height(mm)	2500*1150*1500
Weight(Kg)	420
Engine - Model	KD188FAE
Engine - Cooling Type	Forced-air cooling
Engine - Power(KW)	6.9
Engine - Rated Speed(r/min)	3600
Gearbox-Gear Shifting	1F,2F,3F/N/1R,2R,3R
Harvest Portion - Cutting Width(m)	0.8
Harvest Portion - Rated Feeding Capacity(Kg/s)	0.6
Min. Ground Clearance(mm)	≥180
Working Productivity(mu/h)	0.8≈1/hm2/h
Fuel Consumption(Kg/hm²)	≤35
Cutter Type	Standard II Type
Auger Type	Spiral telescopic finger
Reel-Type	eccentric Spring-Tooth
Reel-Diameter(mm)	620
Reel-Reel Number	4
Threshing Roller - Threshing Type	Axial flow rod tooth
Threshing Roller - Threshing Drum(mm)	360*648
Sieve Type	Grid
Blower-Type	centrifugal
Blower-Diameter(mm)	225
Size(pitch*number*width)	66mm*34节*250mm
track gauge(mm)	550

4LZ-0.6B/4LZ-1.05D Small Self-Propelled Full-Feed Tracked Combine Harvester Product Introduction

✅ Suitable Applications
Small plots, hilly terraced fields, and scattered mountainous rice paddies: Terraced fields in southern mountainous regions, small plots, and paddy fields with significant elevation changes where large combine harvesters cannot access;
Muddy and waterlogged paddies: Rubber tracks exert low ground pressure, preventing the machine from getting stuck in soft mud after rain and allowing normal harvesting of rice in muddy fields;
Smallholder private plots, vegetable gardens with intercropped rice, glutinous rice / millet: Small-scale cultivation and plots with scattered varieties;
Wheat, soybeans, sorghum: Can harvest dryland grains by changing attachments.

✅ Integrated Operation Functions
Harvesting → Threshing → Cleaning → Unloading in one integrated process
The crop-guiding wheel guides downed crops, the cutter head harvests, the full-feed drum threshes, the fan and sieve remove impurities, grains are discharged at a high elevation via a spiral hose, and straw is shredded and returned to the field on-site.
Differences Between the Two Models
0.6B: The top choice for small-scale farmers, scattered plots under 10 mu, and narrow mountain terraces—lightweight and agile;
1.05D: Ideal for large-scale farming and livestock operations, as well as contiguous paddy fields spanning dozens of mu—powerful, fast feed intake, and higher harvesting efficiency.

✅ Core Product Advantages
Superior Off-Road Capability: Low-profile chassis + high ground clearance, easily navigates muddy paddy fields, steep terraced slopes, and small corner plots;
Full-Feed Threshing for Clean Grain: Axial-flow drum ensures thorough threshing, while the fan removes chaff and minimizes impurities, resulting in clean grain;
Compact Design: With a total length of 3 meters, it turns easily on field ridges and navigates narrow field paths and farmland around greenhouses with ease;
Air-Cooled Diesel Engine: Resistant to high temperatures and water shortages, ensuring low failure rates during field operations; parts are widely available and easy to maintain;
Straw Returning to the Field: Chopped straw is returned to the field after harvesting. 4LZ-0.6C Small Tracked Full-Feed Combine Harvester Product Introduction

✅ Suitable Scenarios
Mountainous terraced fields and small hilly paddy fields: Scattered small rice fields in southern regions, terraced fields with significant elevation changes, and fragmented plots inaccessible to large harvesters;
Muddy, waterlogged paddies: Waterlogged, soft-mud fields after rain; low-lying, muddy rice paddies—the large contact area of the tracks prevents the machine from getting stuck;
Smallholder private plots, backyard fields, glutinous rice / specialty rice: Small-scale cultivation, irregular corner plots;
With interchangeable attachments, it can also harvest dryland crops such as wheat, millet, and soybeans.
✅ Operational Functions
Integrated harvesting — conveying — full-feed threshing — air-screen cleaning — high-discharge drum unloading
Eccentric spring-tooth reel lifts lodged rice plants, while the Type II cutterbar quickly cuts down the crop;
Screw auger conveyor with telescopic extension, full-feed axial-flow drum threshing;
Dual-layer impurity removal via grid screen + centrifugal fan, resulting in clean rice with minimal broken grains and husks;
Grain is discharged directly through a telescopic top-mounted hose for on-site bagging, while straw is chopped and returned to the field.
