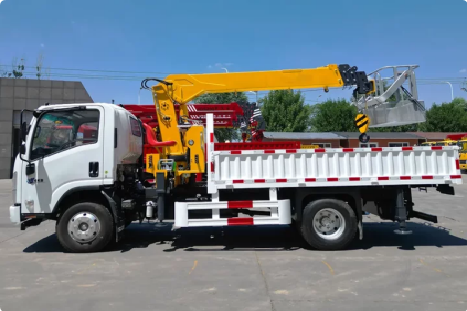

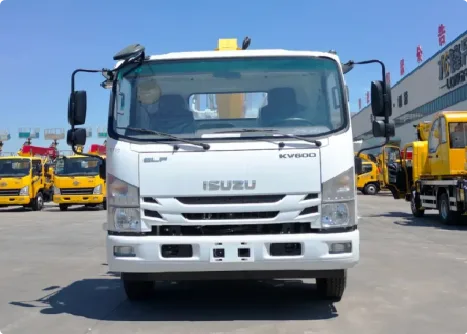

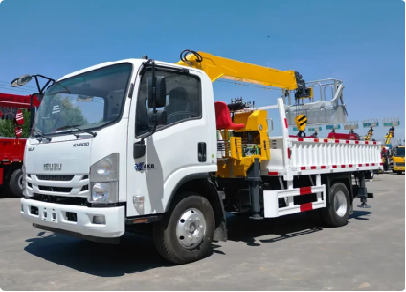

3.2 Ton FAW Light Truck Mounted Crane JQCM 4 Section Boom With Aerial Working Platform Export

Name: 3.2 Ton FAW Light Truck Mounted Crane JQCM 4 Section Boom With Aerial Working Platform Export
Brand: جلوبال ماتشكس
Availability: InStock
Rating: 5 (1 reviews)

JQCM 3.2-ton dual-purpose truck crane based on FAW light truck chassis, equipped with Yunnei 140HP diesel engine and WLY 6-speed gearbox, 4-section synchronous telescopic boom with rated lifting capacity 3200kg. Fitted with rotatable aerial working basket, the cargo box transports building materials and seedlings, integrating cargo haulage, lifting and aerial work in one vehicle. Single hydraulic pump with dual control operation, 360° full slewing. Suitable for rural building material delivery, garden seedling transplant and small wall maintenance. Single unit or full container bulk export available with one-stop customs, inspection & certificate of origin service.

$0.15 - 148148.00

إرسال رسالة اتصل بالمورد

Jining Jiaqing Special Vehicle (Group) Co., Ltd.

عرض المورد

Year Established Established in 2015

Employees 101-500 People

Factory Area 10,000-50,000 m²

Annual Revenue US$10 Million - US$50 Million

Main Markets Southeast Asia / Middle East & North Africa

التفاصيل

المواصفات

معلومات التجارة

Compliant FAW light blue-label chassis, flexible transit on rural narrow roads
FAW light-duty blue plate chassis with overall length 5.995m and 3300mm wheelbase, perfectly fit narrow village lanes and farm roads. Yunnei 140HP engine matched with WLY 6-speed gearbox, 700R16 lightweight tires, full load weight only 4495kg, free from urban rural traffic restrictions, low fuel consumption for short-distance material haulage.
3.2-ton 4-section telescopic boom, 11.5m lifting height for rural hoisting
4-section synchronous extended boom with max lifting height 11.5m and rated capacity 3.2 ton, max boom elevation angle 75°. 1-inch thick turntable enables smooth 360° full slewing, ideal for seedling transplant, small building material loading and mini equipment hoisting on compact rural construction sites.
Integrated rotatable aerial basket, all-in-one cargo, lifting & aerial function
Aluminum aerial work basket mounted on boom tip with ±180° left-right rotation, max working height 12.5m. Equipped with standard cargo box to transport stone, timber and seedlings, then directly conduct wall repair and wire maintenance without separate aerial lift purchase, cutting equipment investment for small contractors.
Single pump dual-control hydraulic system, easy operation & low failure rate
Single gear hydraulic pump supplies oil to dual upper & lower control levers, operators control boom extension, slewing and luffing either from ground or platform. Neat hydraulic pipeline layout ensures stable heat dissipation, universal spare parts simplify maintenance on overseas rural sites, resisting overheating during long shifts.
Lightweight legal design without transport policy restrictions
Full vehicle complies with light truck standards, press-welded rear axle and 70L large fuel tank deliver long range for cross-village haulage. 20° approach & 15° departure angle avoid chassis scraping on rural steep and bumpy roads, suitable for scattered small engineering works in mountain and countryside areas.
One-stop full export supporting service
①Original technical data booklet, dual-function lifting & aerial factory test report, dual-language operation & maintenance manual delivered with each truck;
②Whole vehicle rust removal & cleaning, anti-rust wrapping for boom and basket, standard container sea shipment packaging;
③Full wearable spare parts including hydraulic pump, winch, oil seals and aerial basket can be consolidated in container for supplementary export;
④One-stop agency service for construction machinery customs declaration, certificate of origin and equipment inspection official documents.

Rated Lifting Capacity

3200kg (3.2 Ton)

Chassis Model

FAW Light Truck Chassis

Overall Dimension

599522002950mm

Cargo Box Size

3300*2200mm

Wheelbase

3300mm

Full Load Gross Weight

4495kg

Crane Curb Weight

4300kg

Engine

Yunnei 140HP / 103kW Diesel Engine

Gearbox

WLY 6-speed Manual Gearbox

Max Driving Speed

95km/h

Front/Rear Suspension

1115/1580mm

Approach/Departure Angle

20°/15°

Rear Axle

Press-welded Axle

Fuel Tank Capacity

70L

Tire Spec

700R16LT 6PR

Hydraulic Pump

Single Gear Pump

Control System

Dual Control Levers

Slewing Bearing

1-inch Turntable, 360° Unlimited Rotation

Boom Structure

3m 4-section Synchronous Telescopic Boom

Max Lifting Height

11.5m

Max Boom Elevation Angle

75°

Max Working Height

12.5m

Platform Dimension

15007001100mm

Platform Slewing Range

±180°

الحد الأدنى لكمية الطلب

1 قطع

وصف

Compliant FAW light blue-label chassis, flexible transit on rural narrow roads
FAW light-duty blue plate chassis with overall length 5.995m and 3300mm wheelbase, perfectly fit narrow village lanes and farm roads. Yunnei 140HP engine matched with WLY 6-speed gearbox, 700R16 lightweight tires, full load weight only 4495kg, free from urban rural traffic restrictions, low fuel consumption for short-distance material haulage.
3.2-ton 4-section telescopic boom, 11.5m lifting height for rural hoisting
4-section synchronous extended boom with max lifting height 11.5m and rated capacity 3.2 ton, max boom elevation angle 75°. 1-inch thick turntable enables smooth 360° full slewing, ideal for seedling transplant, small building material loading and mini equipment hoisting on compact rural construction sites.
Integrated rotatable aerial basket, all-in-one cargo, lifting & aerial function
Aluminum aerial work basket mounted on boom tip with ±180° left-right rotation, max working height 12.5m. Equipped with standard cargo box to transport stone, timber and seedlings, then directly conduct wall repair and wire maintenance without separate aerial lift purchase, cutting equipment investment for small contractors.
Single pump dual-control hydraulic system, easy operation & low failure rate
Single gear hydraulic pump supplies oil to dual upper & lower control levers, operators control boom extension, slewing and luffing either from ground or platform. Neat hydraulic pipeline layout ensures stable heat dissipation, universal spare parts simplify maintenance on overseas rural sites, resisting overheating during long shifts.
Lightweight legal design without transport policy restrictions
Full vehicle complies with light truck standards, press-welded rear axle and 70L large fuel tank deliver long range for cross-village haulage. 20° approach & 15° departure angle avoid chassis scraping on rural steep and bumpy roads, suitable for scattered small engineering works in mountain and countryside areas.
One-stop full export supporting service
①Original technical data booklet, dual-function lifting & aerial factory test report, dual-language operation & maintenance manual delivered with each truck;
②Whole vehicle rust removal & cleaning, anti-rust wrapping for boom and basket, standard container sea shipment packaging;
③Full wearable spare parts including hydraulic pump, winch, oil seals and aerial basket can be consolidated in container for supplementary export;
④One-stop agency service for construction machinery customs declaration, certificate of origin and equipment inspection official documents.
