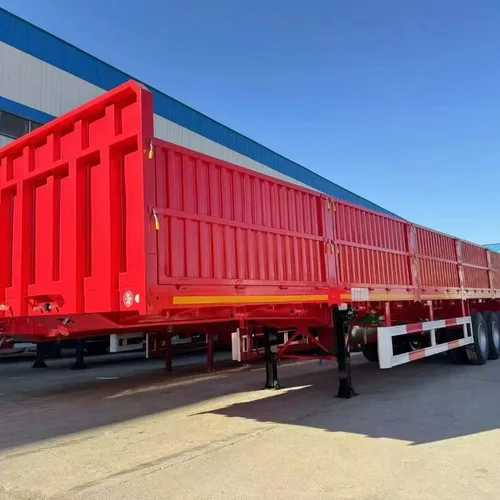

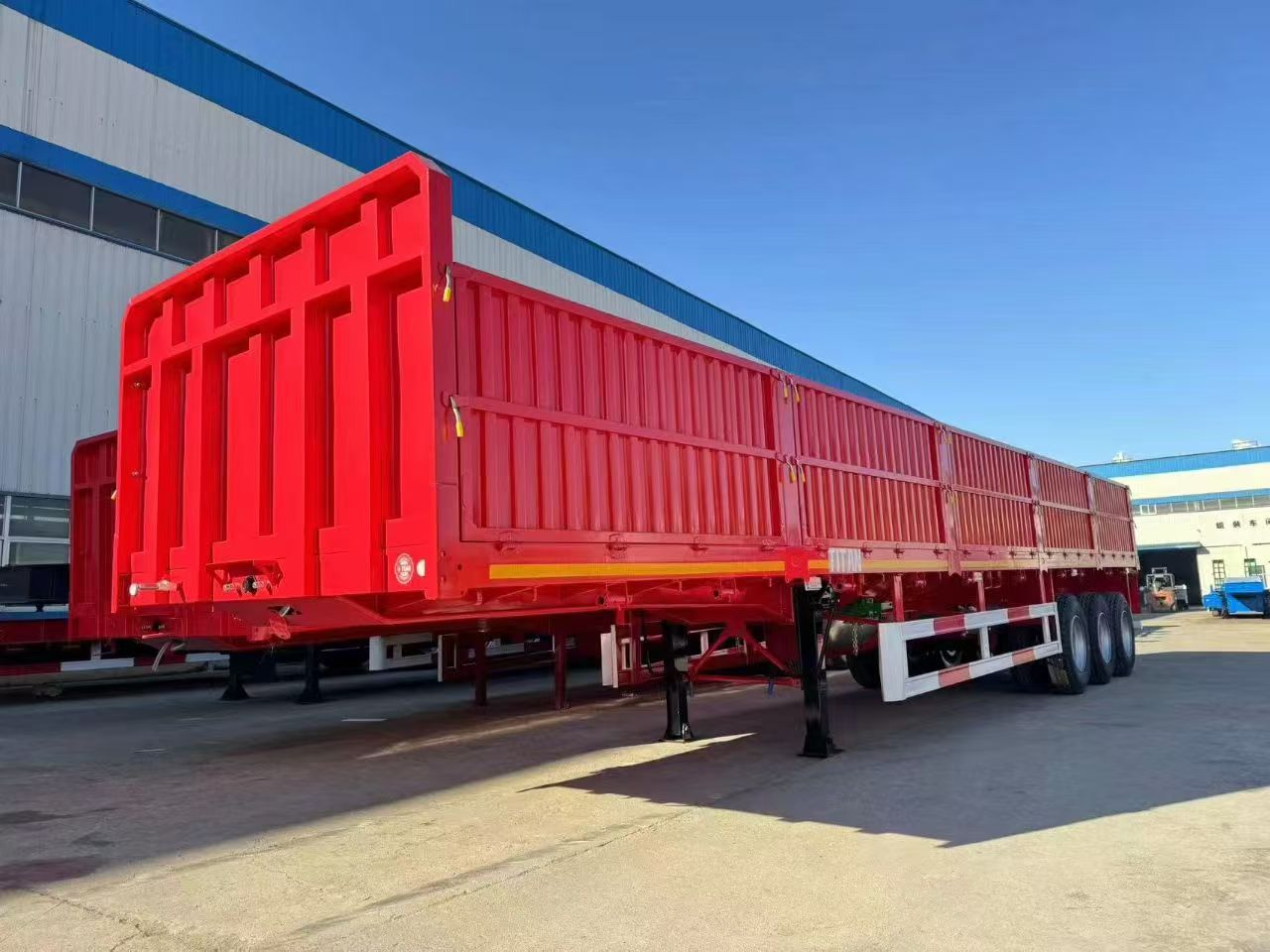

3 Axle Drop Side Semi Trailer, Straight Beam Side Wall Cargo Semi-trailer for Steel & Bulk Goods Transport

Name: 3 Axle Drop Side Semi Trailer, Straight Beam Side Wall Cargo Semi-trailer for Steel & Bulk Goods Transport
Brand: جلوبال ماتشكس
Availability: InStock
Rating: 5 (1 reviews)

Standard 3-axle drop side semi-trailer with openable side panels for easy loading of steel, sand, general cargo and pallet goods. High-strength steel main beam with full automatic submerged arc welding realizes light tare weight and high load capacity. Customizable side height & body length for domestic highway and TIR cross-border haulage of construction materials & general freight.

$8868.00 - 11824.00

إرسال رسالة اتصل بالمورد

Shandong Sitong Special Automobile Manufacturing Co., Ltd.

عرض المورد

Year Established Established in 2002

Employees 101-500 People

Factory Area > 50,000 m²

Annual Revenue US$10 Million - US$50 Million

Main Markets Southeast Asia / South Asia / Middle East & North Africa / Africa

التفاصيل

المواصفات

Side Panel: Stamped detachable side boards with pin shaft opening design for side forklift loading; reinforced thick front bulkhead against impact deformation.
Frame Craft: Q355 high tensile steel main beam welded by full-automatic CO₂ & submerged arc welding for excellent torsion & bending resistance, lightweight to raise legal payload.
Chassis: Standard 3-axle American type axle & mechanical suspension; optional air suspension, ABS brake and wide tires, available with domestic registration & export certification.
Customization: Optional body length 13m/13.75m, side height 600~1200mm; customizable painting color and customer logo.
Application: Steel profile, aggregate grain, agricultural products, pallet LTL, construction waste and general commodity haulage.

Trailer Type

3Axle Drop Side Semi-trailer

Overall Size

13000×2550×3100mm（Customizable）

Inner Cargo Size

12700×2480×800mm

Side Wall Height

600–1200mm Optional

Number of Axles

3 Axles

Rated Payload

Ton

Main Beam Material

Q355B High Tensile Alloy Steel

Suspension

Mechanical Suspension, Air Suspension Optional

Tyre Specification

12R22.5 Tubeless Tyre

Brake System

Standard Drum Brake, ABS Available

Side Door Type

Pin Shaft Side Opening Sideboard

وصف

Side Panel: Stamped detachable side boards with pin shaft opening design for side forklift loading; reinforced thick front bulkhead against impact deformation.
Frame Craft: Q355 high tensile steel main beam welded by full-automatic CO₂ & submerged arc welding for excellent torsion & bending resistance, lightweight to raise legal payload.
Chassis: Standard 3-axle American type axle & mechanical suspension; optional air suspension, ABS brake and wide tires, available with domestic registration & export certification.
Customization: Optional body length 13m/13.75m, side height 600~1200mm; customizable painting color and customer logo.
Application: Steel profile, aggregate grain, agricultural products, pallet LTL, construction waste and general commodity haulage.
