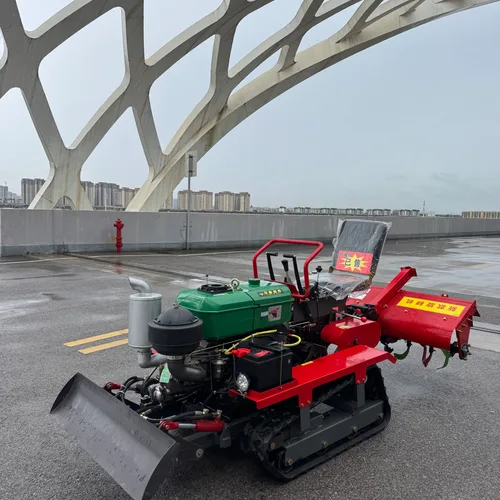

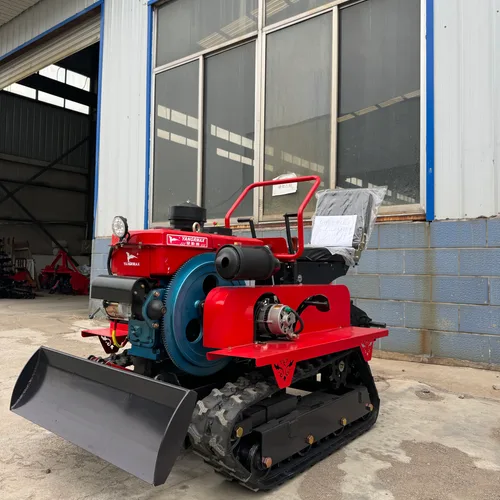

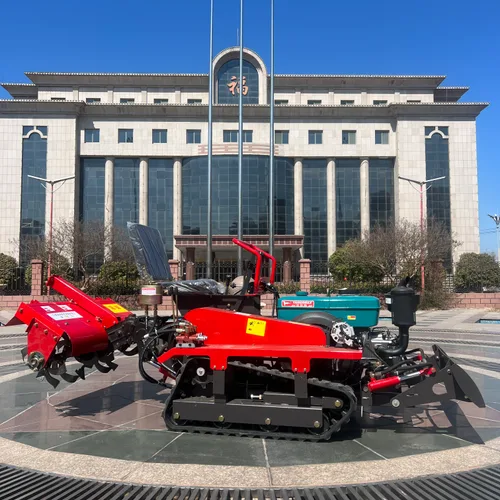

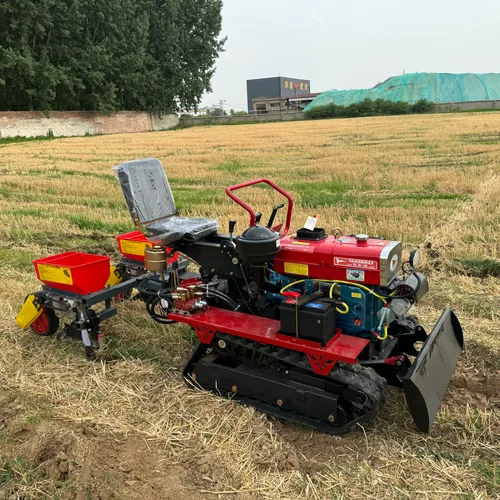

The frame is well-designed and constructed from thickened steel plates, making it sturdy and durable. It effectively reduces engine vibrations and extends the machine’s service life. The machine is powered by a 25-horsepower Quanchai engine.
The 25-horsepower model features a custom-designed all-gear transmission. The front transmission has three forward gears and one reverse gear, while the rear features a working gearbox that can be paired with a wide range of agricultural implements, such as rotary tillers and trenchers. The drive wheels are made of heat-treated steel, ensuring they are robust and wear-resistant.
| Parameter Items |
Value |
| Overall Dimensions |
2500x1000x1200mm |
| Engine Brand |
Yangma / Changchai / Shifeng (G2, G4) |
| Power |
35 HP |
| Machine Weight |
680kg |
| Fuel Consumption |
1 L/mu |
| Transmission Type |
Gear Drive |
| Track Specification |
Width 180mm, 72×36 |
| Gear Shift |
3+R with high/low speed lever, total 8 gears |
| Travel Speed |
5km/h |
| Working Speed |
1-2 mu/h |
| Air Filter |
Bath Type |
| Water Tank |
Evaporative Cooled (Do not run dry) |
| Gearbox |
Custom Full Gear Transmission (Reinforced Heavy-Duty Type) |
| Engine Speed |
2200rpm |

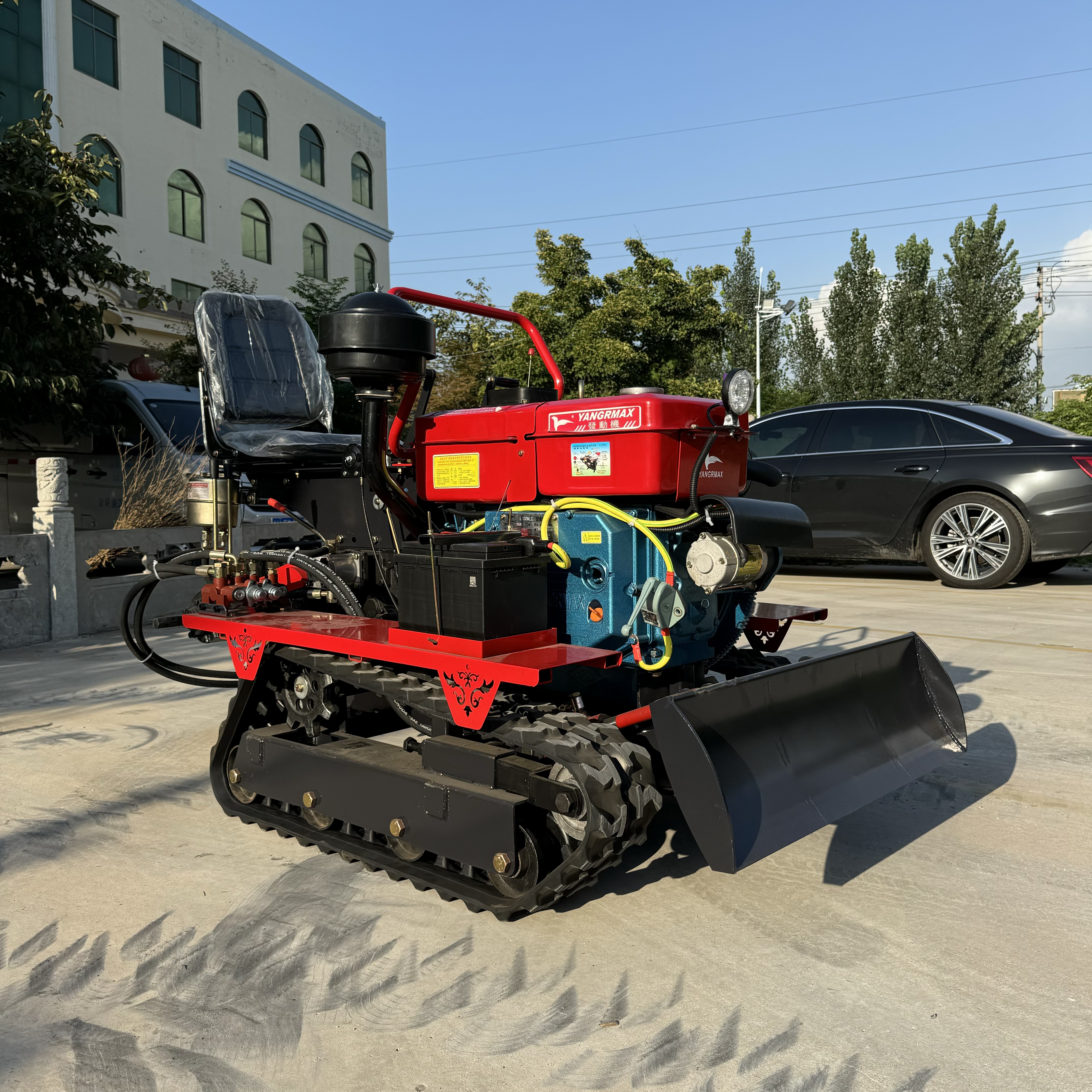

| Standard Attachments - Dozer Blade |
Width 90cm |
| Standard Attachments - Rotary Tiller |
Width 100cm |
| Standard Attachments - Furrow Opener |
Depth 20cm, Width 20cm |
| Standard Attachments - Weeder |
Width 90cm |
| Standard Attachments - Backfill |
Width 90cm |
All sheet metal components of the machine are made of thickened steel plates with a T6 grade or higher, ensuring robustness,durability, and resistance to deformation. The finish features high-quality powder coating with excellent adhesion, preventing paint peeling and rust.
The left and right steering systems utilize a tie-rod mechanism, ensuring simple operation and resistance to damage or malfunction.

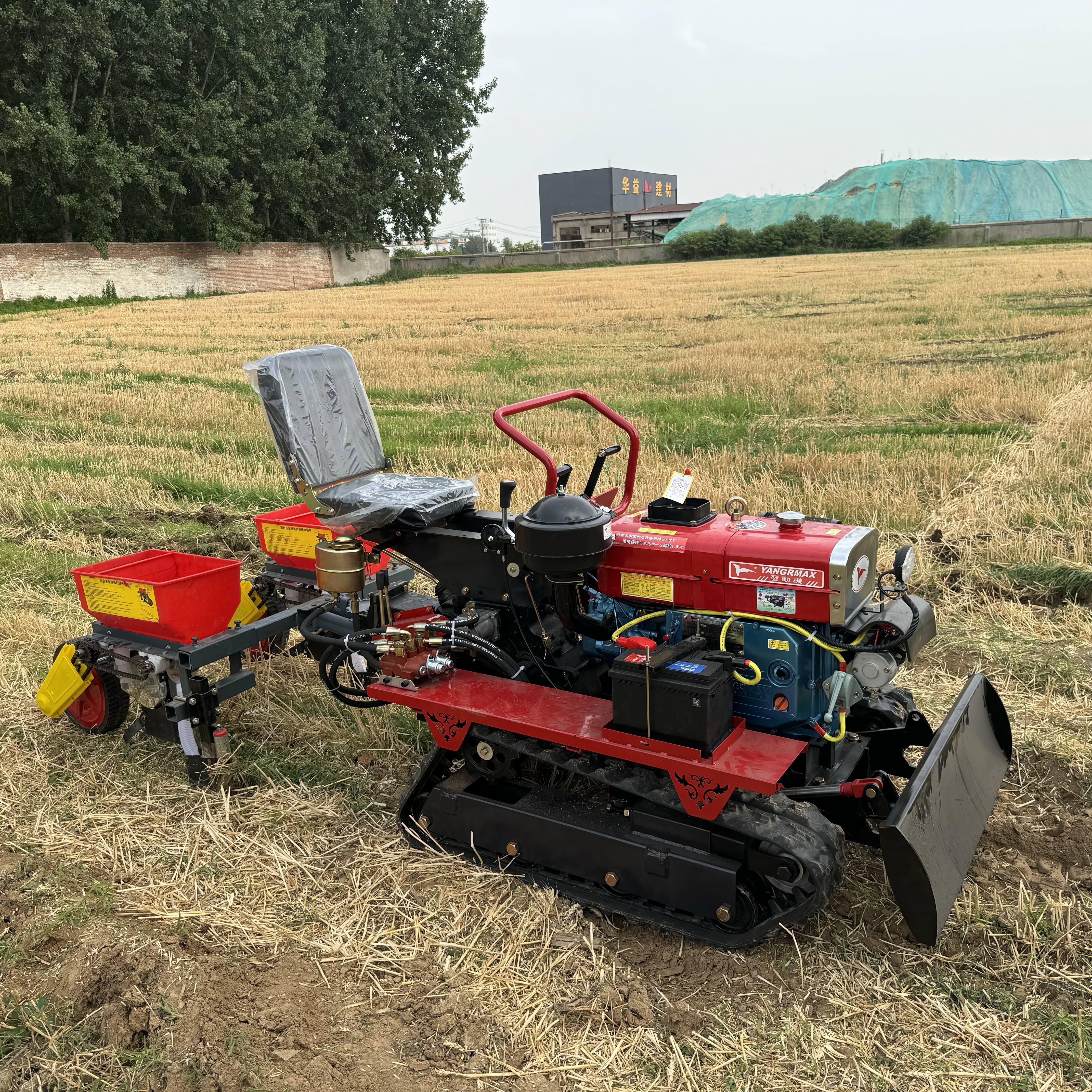

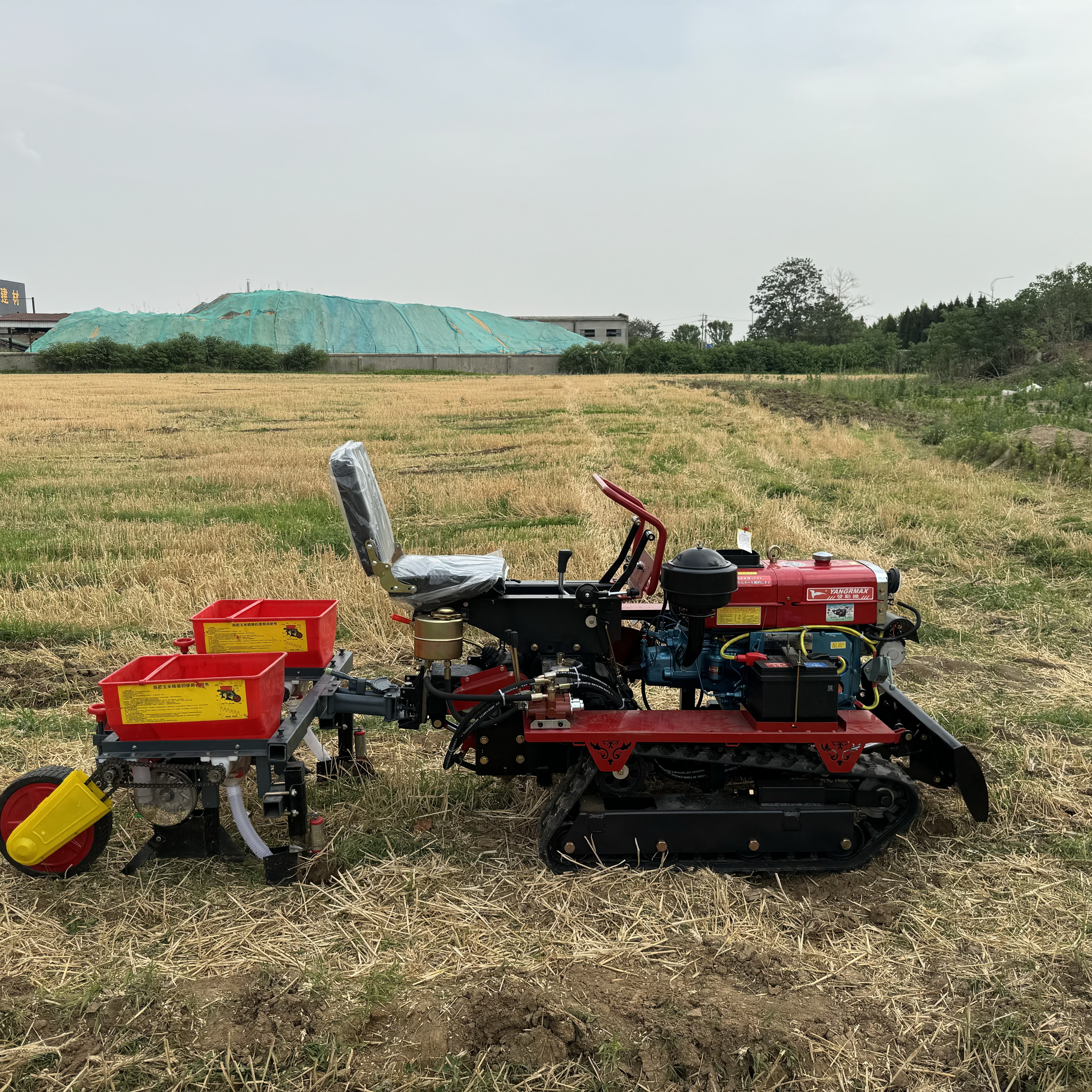

The tracks are constructed from a composite of rubber, steel wire, and an iron frame. With a large contact area, they enhance traction, enabling more agile steering and movement while preventing issues such as tipping or tilting.
Equipped with a 1500W all-copper generator, the machine ensures the battery will not fail to start due to power shortages, thereby extending the battery’s service life.
The oil-filled air filter effectively traps dust and dirt generated during agricultural operations, ensuring the engine runs smoothly and extending its service life.
The wiring uses solid copper wire with multiple fuses. The plug-in design ensures convenient operation, and the wiring is protected by a thickened plastic sheath to prevent aging, damage, or short circuits caused by exposed wires.
Wiring is secured using metal clamps and cable ties, ensuring a stable installation that prevents loosening or detachment.
