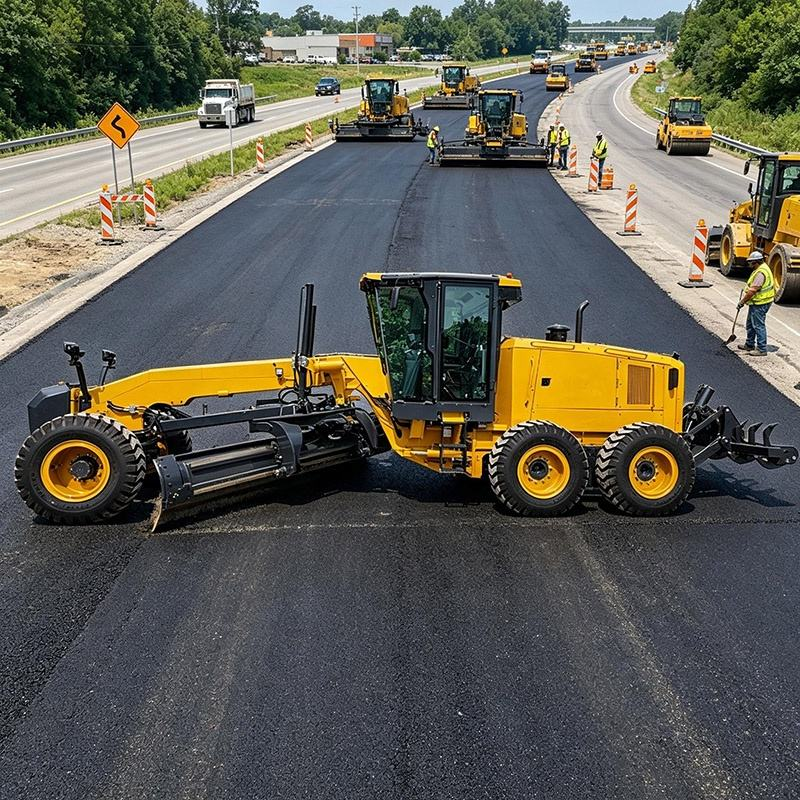

  • Motor grader working on road construction and earthmoving site

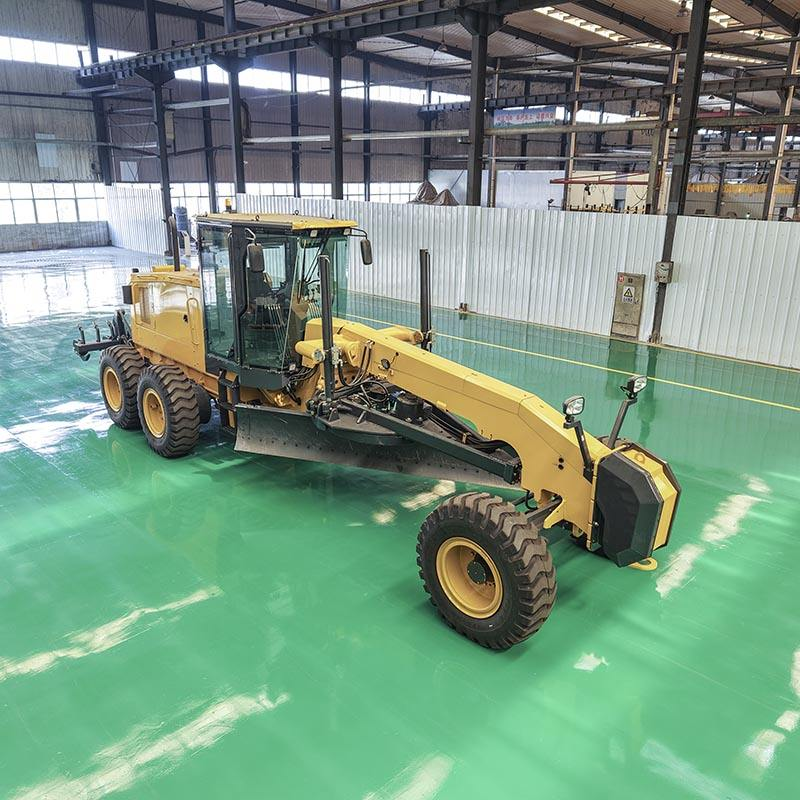

  • Cummins diesel motor grader for mining roads and infrastructure projects
  • Motor grader working on road construction and earthmoving site
  • Cummins diesel motor grader for mining roads and infrastructure projects

215HP Cummins Engine Motor Grader for Highway Construction

This 215HP Cummins engine motor grader is built for highway construction, road leveling, earthmoving, ditching, slope shaping and site preparation. With a heavy-duty moldboard, articulated steering and reliable hydraulic control, it delivers stable grading performance across demanding job sites.
$77100.00
إرسال رسالة اتصل بالمورد
Shentui Construction Machinery (Jining) Co., Ltd.

Shentui Construction Machinery (Jining) Co., Ltd.

عرض المورد
Year Established Established in 2024
Employees Less than 50 People
Factory Area 1,000-5,000 m²
Annual Revenue US$5 Million - US$10 Million
Main Markets Southeast Asia / Latin America / Africa
التفاصيل
المواصفات
معلومات التجارة

215HP Cummins Engine Motor Grader for Road Construction

This motor grader is designed for demanding road construction, highway maintenance, earthmoving, mining road preparation and land development projects. Powered by a Cummins 6-cylinder turbo diesel engine, it delivers 215HP of strong output for stable grading, leveling, ditching, slope shaping and site preparation.

Powerful Cummins Engine Performance

The 215HP Cummins diesel engine provides reliable power, strong torque and consistent performance for long working hours. It is suitable for large-scale infrastructure projects where traction, productivity and machine durability are essential.

Heavy-Duty Structure for Stable Operation

With an operating weight of up to 19,000kg when equipped with a front blade and rear ripper, the grader offers excellent stability on complex terrain. The reinforced frame structure helps support long service life under heavy-duty working conditions.

Precise Blade Control and Grading Accuracy

The 3965mm heavy-duty moldboard supports accurate leveling and efficient material spreading. Large blade articulation angles improve grading flexibility, making the machine suitable for road shaping, surface finishing, ditching and slope work.

Advanced Hydraulic System and Articulated Steering

The hydraulic system provides smooth blade movement and responsive control. Combined with articulated steering, the motor grader can work efficiently in road construction zones, mining sites and large earthmoving areas.

Easy Maintenance and Reliable Components

Easy-access maintenance points help reduce downtime during daily service. Proven drivetrain components, durable moldboard construction and reinforced machine design help lower maintenance costs and improve long-term reliability.

Motor Grader 215HP Cummins Engine 16.8 Ton Road Grader for Highway Construction and EarthmovingMotor Grader 215HP Cummins Engine 16.8 Ton Road Grader for Highway Construction and Earthmoving Motor Grader 215HP Cummins Engine 16.8 Ton Road Grader for Highway Construction and EarthmovingMotor Grader 215HP Cummins Engine 16.8 Ton Road Grader for Highway Construction and EarthmovingMotor Grader 215HP Cummins Engine 16.8 Ton Road Grader for Highway Construction and Earthmoving

FAQ

Q: What engine does this motor grader use?
A: This motor grader is powered by a Cummins 6-cylinder turbo diesel engine with 215HP output, designed for reliable performance in road construction and earthmoving applications.

Q: What jobs is this 215HP motor grader suitable for?
A: It is suitable for road grading, leveling, ditching, slope shaping, snow removal, site preparation, highway construction, mining road maintenance and land development.

Q: What is the operating weight of the motor grader?
A: The machine has an operating weight of up to 19,000kg when equipped with a front blade and rear ripper, helping improve stability during heavy-duty grading work.

Q: What is the moldboard size?
A: The motor grader is equipped with a 3965mm heavy-duty moldboard, supporting accurate leveling, material spreading and road surface finishing.

Q: Does the motor grader support precise blade control?
A: Yes. The advanced hydraulic system provides smooth and responsive blade control, helping operators achieve accurate grading and efficient site preparation.

Q: Is this road grader easy to maintain?
A: Yes. The machine uses easy-access maintenance points, reinforced structural parts and proven drivetrain components to help reduce downtime and support long-term operation.



Make
LANDNEO
Hydraulic Pump Brand
SHENTUI
Hydraulic Cylinder Brand
SHENTUI
Hydraulic Valve Brand
SHENTUI
Engine Brand
Cummins
Warranty
1 Year
UNIQUE SELLING POINT
High operating efficiency
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Core Components
Gear
Forward Speed(km/h)
39.2
Reverse Speed(km/h)
26.1
Brand Name
LANDNEO
Working diameter
780mm(30.71in)
Place of Origin
Shandong, China
Weight
16800 kg(37037.66lb)
Dimension(L*W*H)
9270*2600*3400 mm(364.96*102.36*133.86in)
Forward Speed (1-6)
5.5 ~ 39.2 km/h
Product name
Wheel Motor Grader
Min. Ground Clearance
400mm
Transmission
Fixed-axis, electro-hydraulic control
Moldboard Rotation
360°
Max. torque
980N m @ 1500rpm
Emission
China-II
Cylinders
6
Tire
17.5-25PR12
Front axle
Oscillating ±16°, tilt ±18°
الحد الأدنى لكمية الطلب
1 قطع
  • Motor grader working on road construction and earthmoving site
  • Cummins diesel motor grader for mining roads and infrastructure projects

وصف

215HP Cummins Engine Motor Grader for Road Construction

This motor grader is designed for demanding road construction, highway maintenance, earthmoving, mining road preparation and land development projects. Powered by a Cummins 6-cylinder turbo diesel engine, it delivers 215HP of strong output for stable grading, leveling, ditching, slope shaping and site preparation.

Powerful Cummins Engine Performance

The 215HP Cummins diesel engine provides reliable power, strong torque and consistent performance for long working hours. It is suitable for large-scale infrastructure projects where traction, productivity and machine durability are essential.

Heavy-Duty Structure for Stable Operation

With an operating weight of up to 19,000kg when equipped with a front blade and rear ripper, the grader offers excellent stability on complex terrain. The reinforced frame structure helps support long service life under heavy-duty working conditions.

Precise Blade Control and Grading Accuracy

The 3965mm heavy-duty moldboard supports accurate leveling and efficient material spreading. Large blade articulation angles improve grading flexibility, making the machine suitable for road shaping, surface finishing, ditching and slope work.

Advanced Hydraulic System and Articulated Steering

The hydraulic system provides smooth blade movement and responsive control. Combined with articulated steering, the motor grader can work efficiently in road construction zones, mining sites and large earthmoving areas.

Easy Maintenance and Reliable Components

Easy-access maintenance points help reduce downtime during daily service. Proven drivetrain components, durable moldboard construction and reinforced machine design help lower maintenance costs and improve long-term reliability.

Motor Grader 215HP Cummins Engine 16.8 Ton Road Grader for Highway Construction and EarthmovingMotor Grader 215HP Cummins Engine 16.8 Ton Road Grader for Highway Construction and Earthmoving Motor Grader 215HP Cummins Engine 16.8 Ton Road Grader for Highway Construction and EarthmovingMotor Grader 215HP Cummins Engine 16.8 Ton Road Grader for Highway Construction and EarthmovingMotor Grader 215HP Cummins Engine 16.8 Ton Road Grader for Highway Construction and Earthmoving

FAQ

Q: What engine does this motor grader use?
A: This motor grader is powered by a Cummins 6-cylinder turbo diesel engine with 215HP output, designed for reliable performance in road construction and earthmoving applications.

Q: What jobs is this 215HP motor grader suitable for?
A: It is suitable for road grading, leveling, ditching, slope shaping, snow removal, site preparation, highway construction, mining road maintenance and land development.

Q: What is the operating weight of the motor grader?
A: The machine has an operating weight of up to 19,000kg when equipped with a front blade and rear ripper, helping improve stability during heavy-duty grading work.

Q: What is the moldboard size?
A: The motor grader is equipped with a 3965mm heavy-duty moldboard, supporting accurate leveling, material spreading and road surface finishing.

Q: Does the motor grader support precise blade control?
A: Yes. The advanced hydraulic system provides smooth and responsive blade control, helping operators achieve accurate grading and efficient site preparation.

Q: Is this road grader easy to maintain?
A: Yes. The machine uses easy-access maintenance points, reinforced structural parts and proven drivetrain components to help reduce downtime and support long-term operation.
